TS (Single Row Tapered Roller Bearings) (Imperial) 02476X-02419

TS (Single Row Tapered Roller Bearings) (Imperial) 02476X-02419

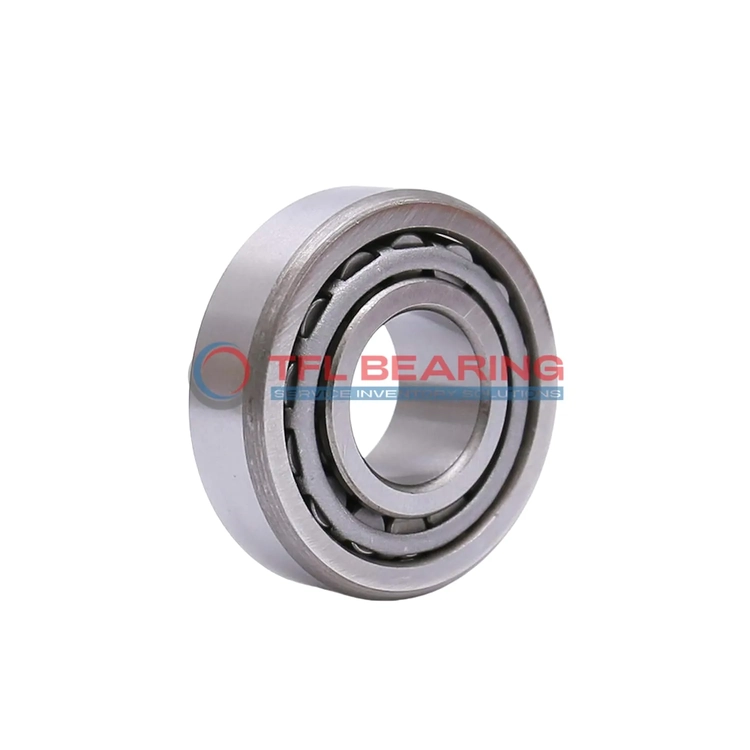

The 02476X-02419 is a single-row tapered roller bearing with a 1.26″ bore and 2.64″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 14300 lbf radially and 2650 lbf in thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for machinery like gearboxes or axles where combined loads are common.

Weighing just 0.7lb, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for industrial use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 02476X-02419
  • Brand TFL
  • Interchangeable Timken
  • Size 1.2593" x 2.6373" x 0.8071"
  • Bore Dia 1.2593"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 2.6373"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 0.8071"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.6299"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 0.8071"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.03"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 1.52"
  • Cone Backface Backing Diameter 1.56"
  • Cup Frontface Backing Diameter 2.46"
  • Cup Backface Backing Diameter 2.32"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.03"
  • Effective Center Location -0.2"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 02476X
  • Cup Part Number 2419
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 2400
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 14300 lbf
  • Static Radial Load 15800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 3720 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 2650 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.7 lb

Features

How Does 02476X-02419 Bearing Handle Combined Loads?

02476X-02419 Bearing is built with chrome steel rings and rollers, offering strong resistance to both radial and thrust loads.
Its dynamic radial load capacity reaches 14,300 lbf, ensuring reliable performance in demanding conditions.
The steel cage maintains roller alignment, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.

Why Choose 02476X-02419 Bearing for Precision Tasks?

02476X-02419 Bearing features precise tolerances, with bore diameter accuracy of +0.005″ to 0.
Its tapered roller design ensures smooth operation under combined loads, ideal for precision applications.
The chrome steel construction provides durability and resistance to wear.
Effective lubrication further enhances its performance and longevity.

Built for Reliability: 02476X-02419 Bearing

02476X-02419 Bearing’s single-row construction ensures stability and consistent performance.
Its dynamic thrust rating of 2,650 lbf makes it suitable for heavy-duty applications.
The standard radial clearance allows for flexibility in various operating conditions.
With ABEC-1 rating, it balances precision and cost-effectiveness.

Application

Industrial Uses of 02476X-02419 Bearing
02476X-02419 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. The chrome steel construction ensures durability in tough working conditions.

Where Is 02476X-02419 Bearing Used?
You’ll often find 02476X-02419 Bearing in automotive applications, particularly in wheel hubs and differential systems. Its imperial sizing makes it a good fit for older or custom-built vehicles.

Built for Heavy-Duty Use: 02476X-02419 Bearing
02476X-02419 Bearing excels in industrial conveyors and lifting systems, thanks to its robust steel cage and high load capacity. The open design allows for easy lubrication, extending its service life.

Automotive vs Aerospace: Applications of 02476X-02419 Bearing
In automotive settings, 02476X-02419 Bearing supports drivetrain components, while in aerospace, it’s used in auxiliary systems where reliability is key. The ABEC-1 rating ensures consistent performance.

Perfect Fit for Automation: 02476X-02419 Bearing
02476X-02419 Bearing works well in automated assembly lines, providing smooth operation under varying loads. Its standard radial clearance makes it adaptable to different precision requirements.
