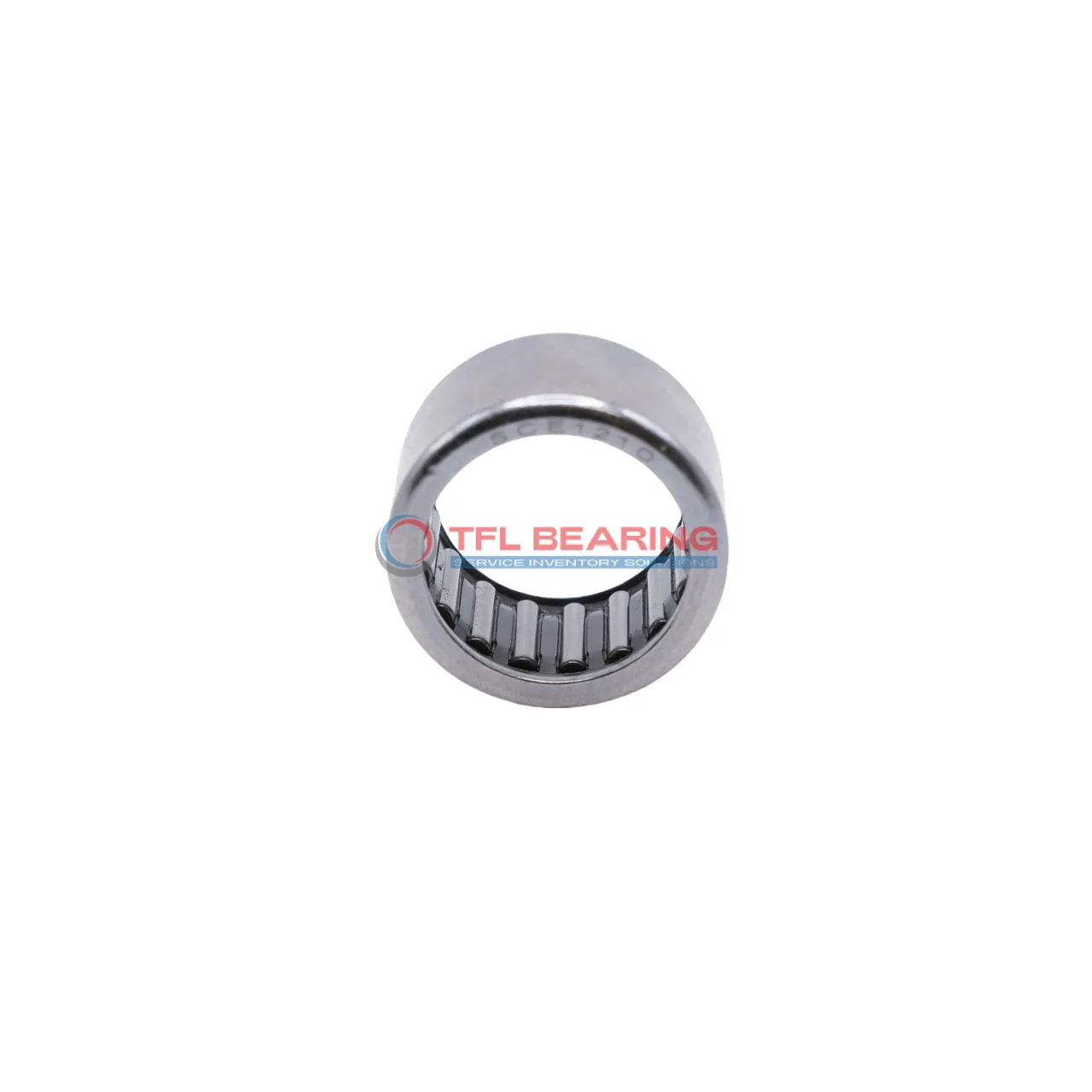

Drawn Cup Needle Roller Bearings SCE86-P

Drawn Cup Needle Roller Bearings SCE86-P

The SCE86-P is a compact drawn cup needle roller bearing with a 0.5″ bore and 0.6875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 821 lbf and spins efficiently at speeds up to 19,500 RPM.
Its single-seal design helps keep contaminants out while maintaining smooth operation. The press-fit mounting ensures a secure attachment to shafts, making installation straightforward.
This bearing is ideal for applications like small engines or gear mechanisms where space is limited but durability is key. It works well in temperatures ranging from -20°C to 110°C.
Compliant with RoHS standards, it’s a practical choice for various industrial uses. Its lightweight construction and steel cage offer a balance of strength and ease of use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE86-P
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.6875"
  • Outer Dia Tolerance Not Rated
  • Width 0.375"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 821 lbf
  • Static Radial Load 888 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 19500 rpm
  • Weight 9 g
Drawn Cup Needle Roller Bearings SCE86-P dimension drawing
Download DWG Download PDF

Features

How Does SCE86-P Bearing Handle High-Speed Applications?
SCE86-P Bearing is crafted with steel rings and needles, offering robust radial load support.
Its dynamic radial load capacity of 821 lbf ensures steady performance in high-speed settings.
The single-seal design helps retain lubrication, reducing friction and wear.
With a maximum speed of 19,500 rpm, it delivers reliable operation for demanding tasks.

Application

Industrial Uses of SCE86-P Bearing
SCE86-P Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is SCE86-P Bearing Used?
You’ll often find SCE86-P Bearing in automotive transmissions, providing smooth operation under high-speed conditions. Its press-fit design simplifies installation, saving time during assembly.
Built for Heavy-Duty Use: SCE86-P Bearing
SCE86-P Bearing excels in conveyor systems, handling radial loads with ease. The single seal helps keep contaminants out, extending the bearing’s service life.
Automotive vs Industrial: Applications of SCE86-P Bearing
In automotive applications, SCE86-P Bearing supports components like steering systems, while in industrial settings, it’s a go-to for machinery requiring reliable radial load support. The inch sizing makes it versatile for various equipment.
