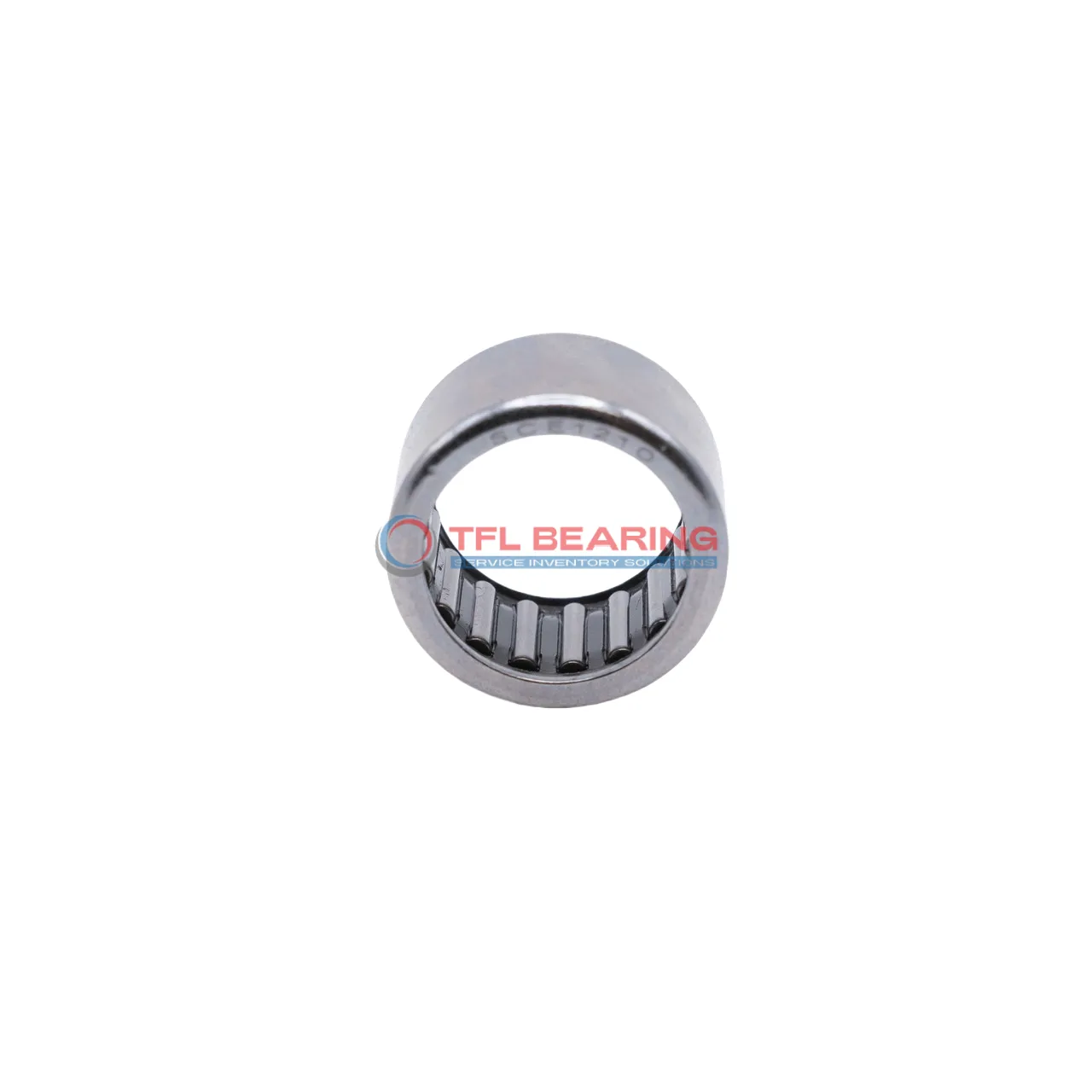

Drawn Cup Needle Roller Bearings SCE810

Drawn Cup Needle Roller Bearings SCE810

The SCE810 is a drawn cup needle roller bearing with a 0.5″ bore and 0.6875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1978 lbf and spins efficiently at speeds up to 19500 RPM.
Its open-end design allows for easy press-fit installation, making it a practical choice for tight spaces. The bearing requires regular lubrication to maintain smooth operation.
Ideal for applications like small engines or gear mechanisms where space is limited but performance is key. It works well in temperatures ranging from -20°C to 110°C.
Compliant with RoHS standards, this bearing is a dependable option for various industrial uses. Its compact size and durability make it a favourite among engineers and repair technicians.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE810
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.6875"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1978 lbf
  • Static Radial Load 2765 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 19500 rpm
  • Weight 9 g
Drawn Cup Needle Roller Bearings SCE810 dimension drawing
Download DWG Download PDF

Features

Performance Features of SCE810 Bearing
SCE810 Bearing is built with steel rings and needles, offering strong radial load capacity up to 1978 lbf.
Its compact design with a 0.5″ bore and 0.6875″ outer diameter makes it ideal for space-constrained applications.
The press-fit shaft mount ensures secure installation, reducing the risk of slippage during operation.
With a maximum speed of 19,500 rpm, it delivers reliable performance in high-speed environments.

Application

Common Applications of SCE810 Bearing
SCE810 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, such as gearboxes and pumps. Its press-fit design ensures a secure mounting, ideal for high-speed operations.
In automotive systems, SCE810 Bearing fits well in components like steering columns and transmission systems, offering reliable performance under radial loads. The steel construction provides durability, making it suitable for long-term use.
For automation equipment, SCE810 Bearing works efficiently in robotic arms and conveyor systems, where precision and smooth movement are essential. The open-end design allows for easy lubrication, maintaining performance over time.
In household appliances, SCE810 Bearing can be found in items like power tools and small motors, where its compact size and strength are advantageous. The inch measurements make it compatible with various international standards.
