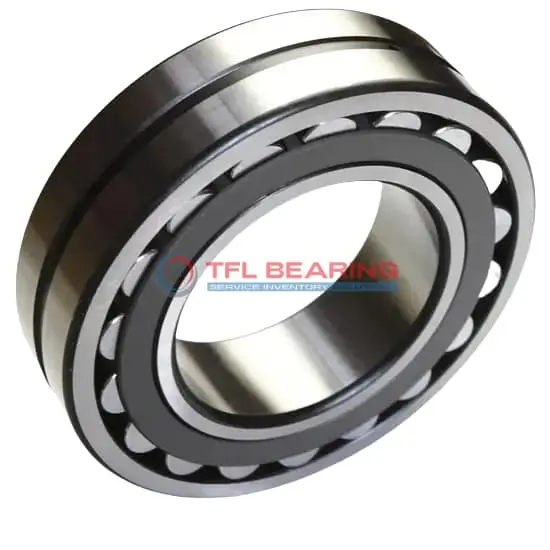

22232 M Double Row Spherical Roller Bearing

22232 M Double Row Spherical Roller Bearing

The 22232 M is a double-row spherical roller bearing with a 160mm bore and 290mm outer diameter, built from sturdy chrome steel. It manages combined loads up to 234476 lbf and runs smoothly at speeds up to 2800 RPM.

Its open design requires lubrication, with a 13.9mm groove and 7.5mm hole for easy greasing. The steel cage and spherical rollers ensure reliable performance under heavy loads.

This bearing fits well in high-temperature environments, ranging from -30°C to 200°C. It’s interchangeable with SKF models, making it a practical choice for replacements.

Weighing 23kg, it’s robust for industrial use, ideal for machinery like crushers or heavy-duty gearboxes. Compliant with RoHS and REACH standards for safe operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22232 M
  • Brand TFL
  • Interchangeable SKF
  • Size 160 x 290 x 80 mm
  • Bore Dia 160 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 290 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 80 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 191 mm
  • Shoulder/Recess Dia Of Outer Ring 250 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 234476 lbf
  • Static Radial Load 290004 lbf
  • Max Speed 2800 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 23 kg
  • Price （US$） US$276.30

Features

Performance Features of 22232 M Bearing

22232 M Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 234476 lbf, ensuring reliable performance in heavy-duty applications.

The double-row spherical roller design allows for slight misalignment, reducing stress on the bearing.
With a maximum speed of 2800 rpm, it balances durability and efficiency in demanding conditions.

22232 M Bearing operates in temperatures from -30° to 200°C, making it suitable for varied environments.
The steel cage maintains roller alignment, extending service life and reducing maintenance needs.

Its lubrication groove and hole design ensure consistent lubrication, enhancing performance.
The 23 kg weight reflects its robust construction, ideal for industrial applications.

Application

Industrial Uses of 22232 M Bearing
The 22232 M Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently.
Its robust chrome steel construction ensures durability even in harsh industrial environments.

Where Is 22232 M Bearing Used?
You’ll often find the 22232 M Bearing in mining equipment, where its high load capacity and spherical roller design accommodate misalignment.
It’s also a reliable choice for paper mills and cement plants, thanks to its temperature resistance up to 200°C.

Built for Heavy-Duty Use: 22232 M Bearing
The 22232 M Bearing excels in applications like gearboxes and large electric motors, where its dynamic radial load capacity of 234476 lbf is crucial.
Its open design simplifies lubrication, making maintenance straightforward for long-term use.

Automotive vs Aerospace: Applications of 22232 M Bearing
In automotive settings, the 22232 M Bearing supports heavy-duty axles and transmissions, while in aerospace, it’s less common due to weight constraints.
Its metric sizing and high-speed capability (2800 rpm) make it versatile for industrial uses.

Practical Applications of 22232 M Bearing
The 22232 M Bearing is ideal for wind turbines, where its spherical rollers compensate for shaft misalignment caused by dynamic loads.
Its steel cage and chrome steel rollers ensure reliable performance in demanding conditions.
