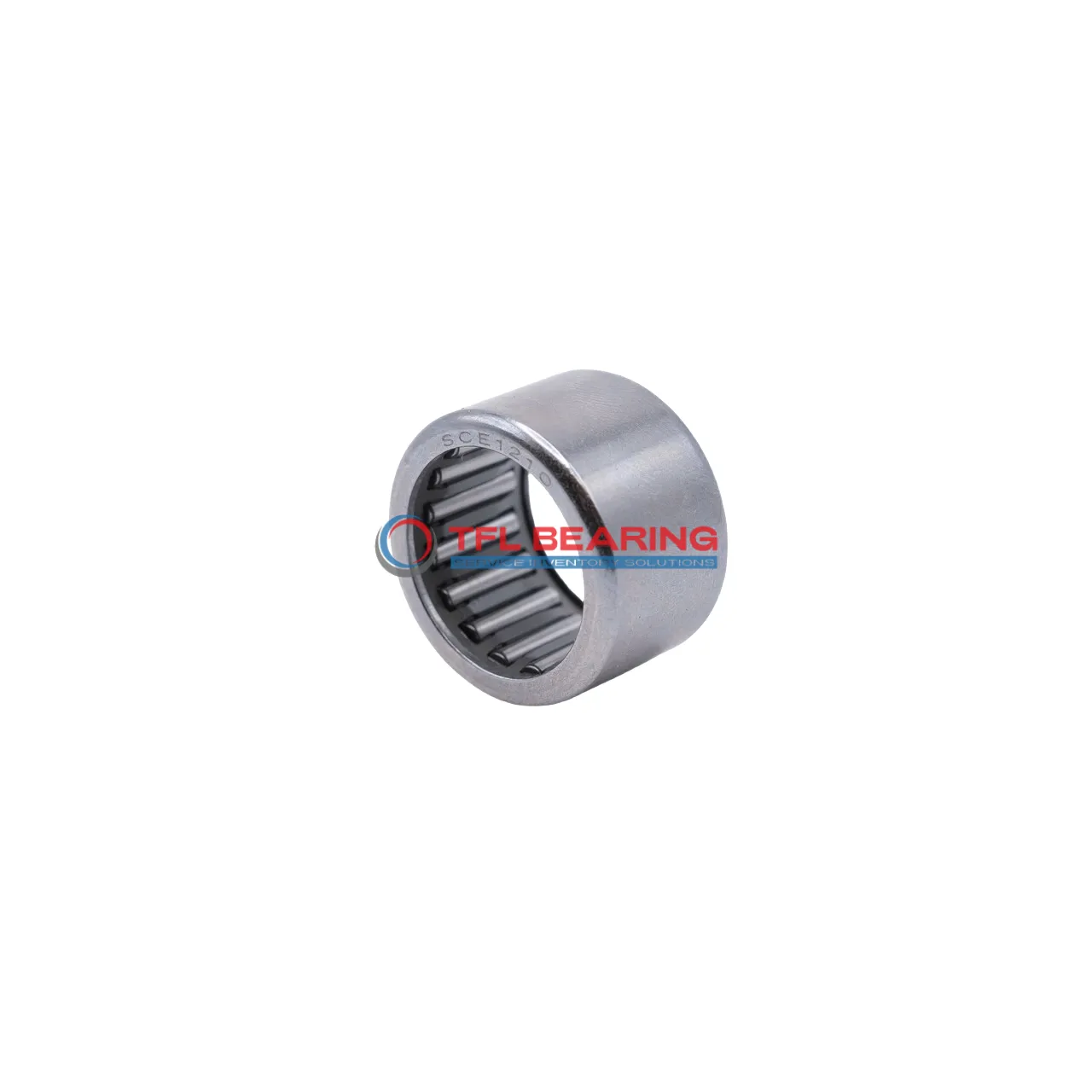

Drawn Cup Needle Roller Bearings SCE59

Drawn Cup Needle Roller Bearings SCE59

The SCE59 is a compact drawn cup needle roller bearing with a 0.3125″ bore and 0.5″ outer diameter, made from sturdy steel. It handles radial loads up to 1349 lbf and spins efficiently at speeds up to 29,000 RPM.
Its open-end design allows for easy press-fit installation, while the steel cage ensures durability under high loads. The bearing operates smoothly in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like small gearboxes or automotive components where space is limited.
Regular lubrication is recommended for optimal performance. Compliant with RoHS standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE59
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.3125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.5"
  • Outer Dia Tolerance Not Rated
  • Width 0.5625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1349 lbf
  • Static Radial Load 1484 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 29000 rpm
  • Weight 6 g
Drawn Cup Needle Roller Bearings SCE59 dimension drawing
Download DWG Download PDF

Features

How Does SCE59 Bearing Handle High-Speed Applications?
SCE59 Bearing is built with steel rings and needles, offering strong radial load support up to 1349 lbf.
Its press-fit shaft mount ensures secure installation, reducing slippage during high-speed operation.
With a maximum speed of 29,000 rpm, it delivers reliable performance in demanding conditions.
The open-end design allows for easy lubrication, maintaining smooth operation over time.

Application

Industrial Uses of SCE59 Bearing
SCE59 Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, such as conveyor systems and gearboxes. Its press-fit design ensures a secure mounting, ideal for high-vibration environments.
Where Is SCE59 Bearing Used?
In automotive applications, SCE59 Bearing fits well in transmission systems and steering mechanisms, thanks to its high-speed capability and durability. The inch sizing makes it a convenient choice for older or custom vehicle designs.
Built for Heavy-Duty Use: SCE59 Bearing
For automation equipment like robotic arms, SCE59 Bearing offers reliable performance due to its steel construction and open-end design. It handles frequent movement smoothly, making it suitable for precision tasks.
Light-Duty vs Heavy-Duty: Best Uses for SCE59 Bearing
In consumer electronics like printers, SCE59 Bearing provides quiet operation and long service life. Its compact size and high rpm rating make it a practical option for small, fast-moving components.
