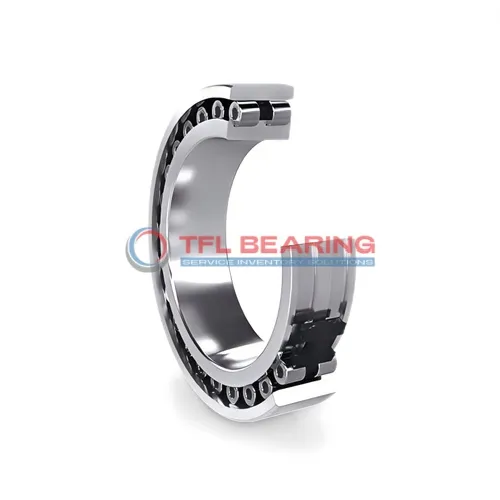

Double Row Super-Precision Cylindrical Roller Bearings NN 3018 KTN9/SPVM127

Double Row Super-Precision Cylindrical Roller Bearings NN 3018 KTN9/SPVM127

The NN 3018 KTN9/SPVM127 is a double-row cylindrical roller bearing with a 90mm bore and 140mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 31050 lbf and reaches speeds of 7000 RPM.

Its tapered bore design ensures a secure fit, while the open seal allows for easy lubrication with grease or oil. The PA66 cage keeps rollers centred for smooth operation.

This bearing suits applications with high radial loads, such as machine tools or industrial gearboxes. It performs reliably in temperatures from -30°C to 110°C.

Weighing 1.95kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NN 3018 KTN9/SPVM127
  • Size 90 mm x 140 mm x 37 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bore Type Taper 1:12
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Bore Dia 90 mm
  • Bore Dia Tolerance 0 to +0.020mm
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 37 mm
  • Width Tolerance -0.20mm to 0
  • Chamfer Dimension Outer Ring(r1,2)(min.) 1.5 mm
  • Chamfer Dimension Inner Ring(r3,4)(min.) 1 mm
  • Permissible Axial Displacement(max.) 2 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Dynamic Radial Load 31050 lbf
  • Static Radial Load 48600 lbf
  • Max Speed 7000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.95 kg
  • Cage Material PA66 cage, roller centred
Double Row Super-Precision Cylindrical Roller Bearings NN 3018 KTN9/SPVM127 dimension drawing
Download DWG Download PDF

Features

Performance Features of NN 3018 KTN9/SPVM127 Bearing

NN 3018 KTN9/SPVM127 Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 31050 lbf, making it suitable for demanding industrial applications.

The double-row design enhances stability and load distribution, ensuring smooth operation.
With a maximum speed of 7000 rpm, it balances performance and durability in high-speed environments.

NN 3018 KTN9/SPVM127 Bearing operates efficiently in temperatures ranging from -30° to 110°C.
The PA66 cage keeps rollers centred, reducing friction and extending service life.

Its open design allows for easy lubrication with grease or oil, minimising maintenance needs.
The precise taper bore ensures secure fitting and reliable performance under heavy loads.

Application

Key Fields for NN 3018 KTN9/SPVM127 Bearing
NN 3018 KTN9/SPVM127 Bearing is commonly used in high-precision machine tools, where its double-row design handles combined loads with ease. The tapered bore ensures a secure fit, reducing slippage during operation.

In automotive applications, NN 3018 KTN9/SPVM127 Bearing supports gearboxes and drivetrains, offering reliable performance under high speeds. Its chrome steel construction provides durability in demanding conditions.

For automation systems, NN 3018 KTN9/SPVM127 Bearing is ideal for robotic arms, ensuring smooth movement and precision. The open seal design allows for easy lubrication, extending service life.

Medical imaging devices benefit from NN 3018 KTN9/SPVM127 Bearing’s stability, crucial for accurate diagnostics. The PA66 cage material reduces friction, enhancing efficiency in sensitive equipment.

In industrial fans, NN 3018 KTN9/SPVM127 Bearing’s high-speed capability ensures consistent airflow. Its grease or oil lubrication options make it adaptable to various operating environments.
