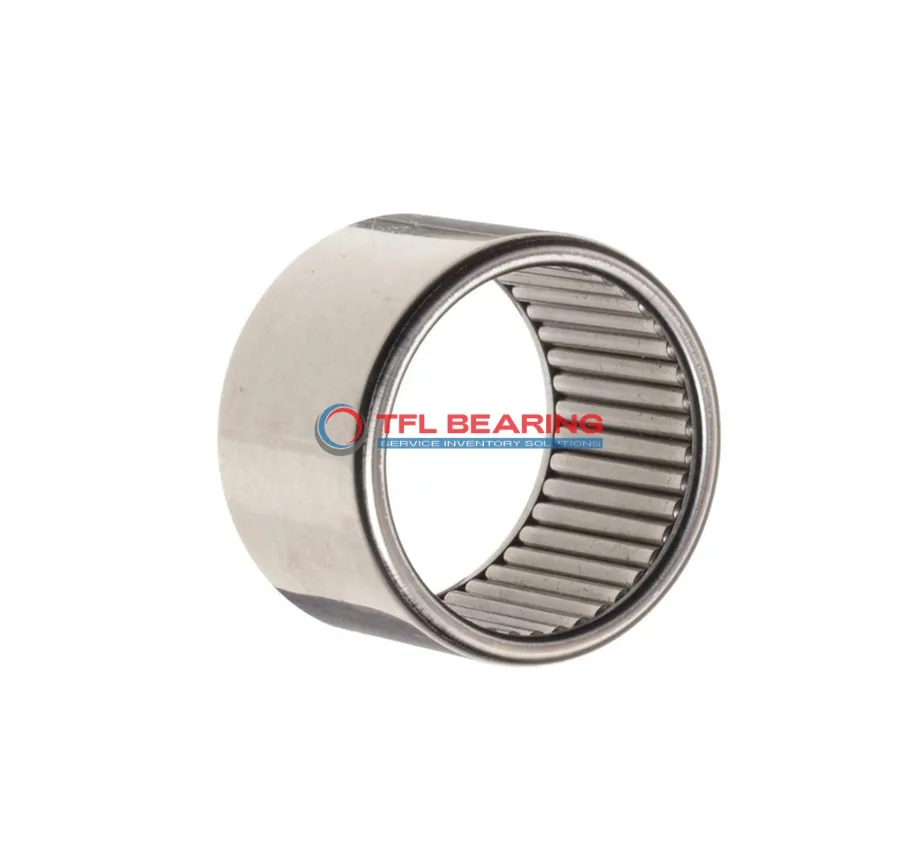

Drawn Cup Needle Roller Bearings SCE2410

Drawn Cup Needle Roller Bearings SCE2410

The SCE2410 is a drawn cup needle roller bearing with a 1.5″ bore and 1.875″ outer diameter, made from sturdy steel. It handles radial loads up to 5485 lbf and runs smoothly at speeds up to 6700 RPM.
Its open-end design allows for easy press-fit installation, while the steel cage ensures durability. The bearing requires regular lubrication for optimal performance.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like automotive components or industrial machinery where radial loads are common.
Operating in temperatures from -20°C to 110°C, it’s versatile for various environments. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE2410
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.875"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 5485 lbf
  • Static Radial Load 8206 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 6700 rpm
  • Weight 54 g
Drawn Cup Needle Roller Bearings SCE2410 dimension drawing
Download DWG Download PDF

Features

How Does SCE2410 Bearing Handle Radial Loads?
SCE2410 Bearing is built with steel rings and needles, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 5485 lbf, ensuring reliable performance in various applications.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 6700 rpm, it balances durability and efficiency in demanding conditions.
SCE2410 Bearing works well in temperatures from -20 to 110°C, making it suitable for diverse environments.
Regular lubrication ensures smooth operation and extends the bearing’s service life.

Application

Industrial Uses of SCE2410 Bearing
SCE2410 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is SCE2410 Bearing Used?
You’ll often find SCE2410 Bearing in automotive transmissions, providing smooth operation under high radial loads. Its press-fit design simplifies installation, making it a favourite for mechanics.
Built for Heavy-Duty Use: SCE2410 Bearing
SCE2410 Bearing excels in construction equipment like hydraulic pumps, handling heavy loads with ease. The open-end design allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of SCE2410 Bearing
In automotive applications, SCE2410 Bearing supports clutch assemblies, while in industrial settings, it’s used in conveyor systems. Its inch sizing makes it versatile for various machinery.
Perfect Fit for Automation: SCE2410 Bearing
SCE2410 Bearing is a reliable choice for robotic arms, offering precision and stability. The steel cage ensures consistent performance, even in high-speed operations.
