Needle Roller Thrust Bearings (Cages) AXW10

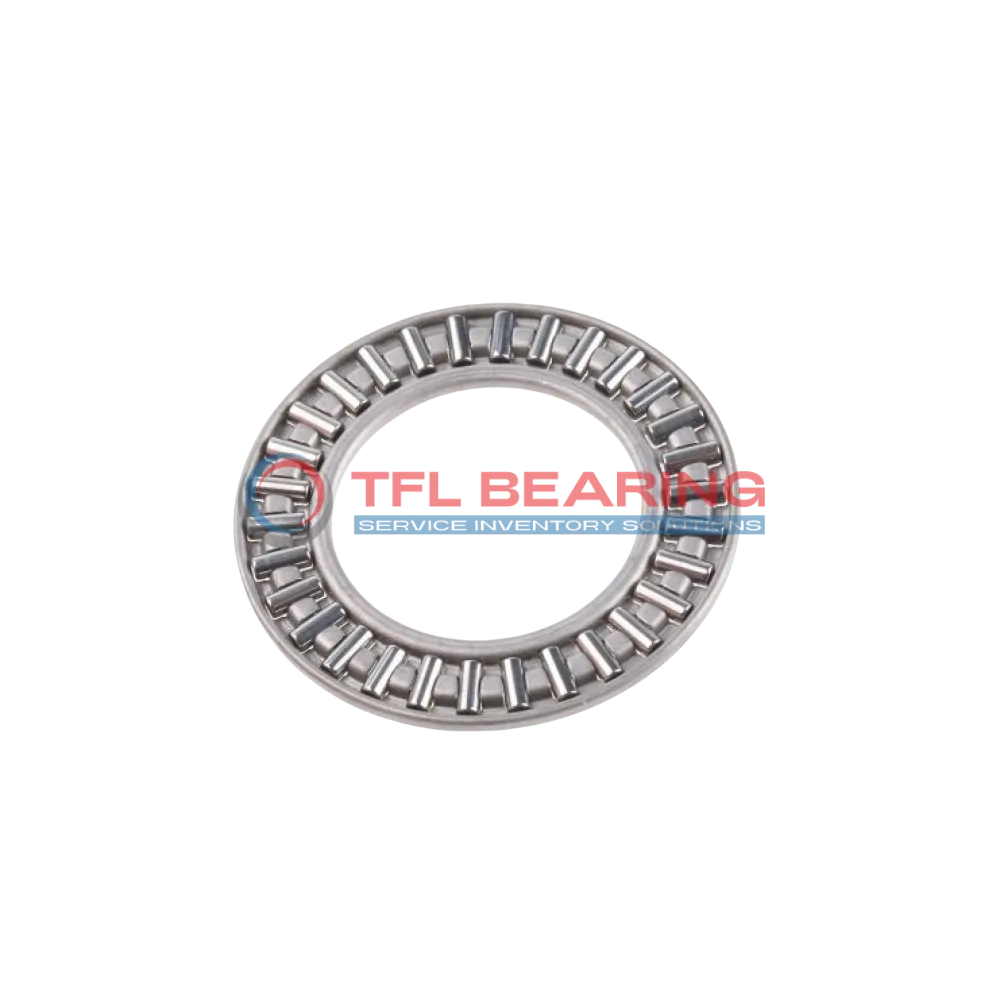

Needle Roller Thrust Bearings (Cages) AXW10

The AXW10 is a needle roller thrust bearing cage with a 10mm bore and 27mm outer diameter, crafted from sturdy steel. It supports thrust loads up to 2070 lbf and can reach speeds of 16900 RPM, making it suitable for high-performance applications.

Its steel cage and needle rollers ensure durability, while the ABEC-1 rating provides reliable precision. The bearing requires regular lubrication to maintain smooth operation.

Designed for thrust loads, it works well in temperatures from -30°C to 110°C. This model is interchangeable with INA bearings, offering flexibility for replacements.

Ideal for use in gearboxes or compact machinery where space is limited. Compliant with RoHS standards, it’s a practical choice for various industrial needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number AXW10
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 10 mm
  • Outer Dia 27 mm
  • Width 3.2 mm
  • System of Measurement Metric
  • Roller Bearing Type Needle
  • Type Cages
  • For Load Direction Thrust
  • Series AXW
  • Cage Material Steel
  • Needle Material Steel
  • Dynamic Thrust Load 2070 lbf
  • Static Thrust Load 5738 lbf
  • Max Speed 16900 rpm
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • Allocated Axial Bearing Washer AS1024
Needle Roller Thrust Bearings (Cages) AXW10 dimension drawing
Download DWG Download PDF

Features

Performance Features of AXW10 Bearing
AXW10 Bearing is crafted with steel cages and needles, ensuring strong resistance to thrust loads.
Its dynamic thrust load capacity reaches 2070 lbf, making it suitable for high-demand applications.
The steel cage design maintains needle alignment, reducing friction and wear during operation.
With a maximum speed of 16,900 rpm, AXW10 Bearing balances speed and durability effectively.
AXW10 Bearing operates efficiently within a temperature range of -30° to 110°C.
Regular lubrication ensures smooth performance and extends the bearing’s service life.

Application

Industrial Uses of AXW10 Bearing
AXW10 Bearing is commonly used in compact machinery where space is limited, such as small gearboxes and power tools. Its needle roller design efficiently handles high thrust loads while maintaining a low profile.
Where Is AXW10 Bearing Used?
You’ll find AXW10 Bearing in automotive applications like clutch release mechanisms, where its steel construction ensures durability. The high-speed capability also makes it suitable for rotating assemblies in industrial fans.
Built for Heavy-Duty Use: AXW10 Bearing
AXW10 Bearing excels in conveyor systems, supporting heavy loads with its robust steel cage and needles. The ABEC-1 rating ensures reliable performance in demanding environments.
Automotive vs Industrial: Applications of AXW10 Bearing
In automotive settings, AXW10 Bearing aids in steering systems, while in industrial equipment, it’s ideal for compact pumps. Its metric sizing simplifies integration across various machinery types.
Perfect Fit for Automation: AXW10 Bearing
AXW10 Bearing works well in robotic arms, providing smooth movement under axial loads. The steel needles and cage offer long-lasting performance in high-cycle applications.
