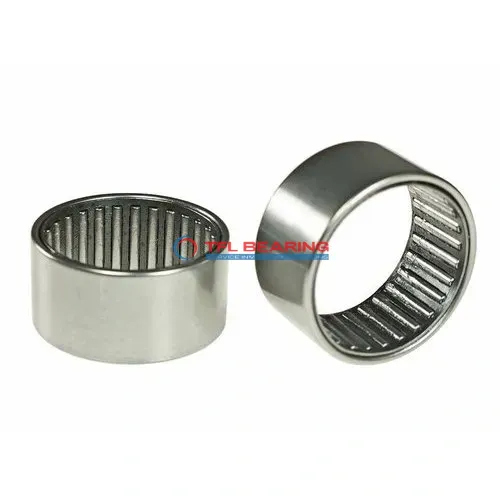

Drawn Cup Needle Roller Bearings SCE1816

Drawn Cup Needle Roller Bearings SCE1816

The SCE1816 is a drawn cup needle roller bearing with a 1.125″ bore and 1.375″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 5733 lbf and spins smoothly at speeds up to 9000 RPM.
Its open-end design allows for easy lubrication, while the press-fit mounting ensures a secure fit on shafts. The bearing operates well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like automotive components or industrial machinery where radial loads are common.
Compliant with RoHS standards, it’s a durable and safe option for various mechanical needs. The 1″ width provides a compact yet robust solution for tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE1816
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.375"
  • Outer Dia Tolerance Not Rated
  • Width 1"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 5733 lbf
  • Static Radial Load 11128 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 9000 rpm
  • Weight 40 g
Drawn Cup Needle Roller Bearings SCE1816 dimension drawing
Download DWG Download PDF

Features

How Does SCE1816 Bearing Handle Heavy Loads?
SCE1816 Bearing is built with steel rings and rollers, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 5733 lbf, making it suitable for demanding applications.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 9000 rpm, it delivers reliable performance in various conditions.
SCE1816 Bearing operates within a temperature range of -20 to 110°C, ensuring versatility.
Regular lubrication helps maintain its efficiency and extends its service life.

Application

Common Applications of SCE1816 Bearing
SCE1816 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its press-fit design ensures a secure mounting, reducing the risk of slippage during operation.
Where Is SCE1816 Bearing Used?
In automotive systems, SCE1816 Bearing fits well in gearboxes and steering mechanisms, handling radial loads efficiently. The steel construction offers durability, making it suitable for high-speed applications up to 9000 rpm.
Ideal for Precision: SCE1816 Bearing
For medical devices like surgical tools, SCE1816 Bearing provides smooth motion due to its needle roller design. The open seal allows for easy lubrication, ensuring long-term performance in critical environments.
Automotive vs Industrial: Applications of SCE1816 Bearing
In automotive transmissions, SCE1816 Bearing excels under high radial loads, while in industrial settings, it’s favoured for its compact size and reliability. The inch sizing makes it compatible with many North American machinery standards.
Practical Applications of SCE1816 Bearing
SCE1816 Bearing is a go-to choice for home appliances like washing machines, where its durability and quiet operation are valued. The steel cage and rollers ensure it handles everyday wear with ease.
