Drawn Cup Needle Roller Bearings SCE1812

Drawn Cup Needle Roller Bearings SCE1812

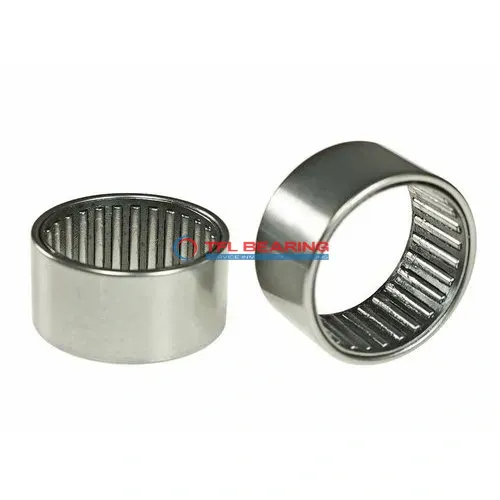

The SCE1812 is a drawn cup needle roller bearing with a 1.125″ bore and 1.375″ outer diameter, made from sturdy steel. It handles radial loads up to 4249 lbf and can spin at speeds up to 9000 RPM.
Its open-end design allows for easy press-fit installation on shafts, making it a practical choice for tight spaces. The bearing requires regular lubrication to maintain smooth operation.
This model is interchangeable with INA bearings, offering a reliable alternative for replacements. Suitable for applications like automotive components or small machinery where radial loads are common.
It operates well in temperatures from -20°C to 110°C and is RoHS compliant for safe use. The compact width of 0.75″ makes it ideal for space-constrained setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE1812
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.375"
  • Outer Dia Tolerance Not Rated
  • Width 0.75"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4249 lbf
  • Static Radial Load 7419 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 9000 rpm
  • Weight 30 g
Drawn Cup Needle Roller Bearings SCE1812 dimension drawing
Download DWG Download PDF

Features

How Does SCE1812 Bearing Handle Radial Loads?
SCE1812 Bearing is built with steel rings and rollers, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 4249 lbf, making it suitable for demanding applications.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 9000 rpm, it ensures reliable performance in various conditions.
SCE1812 Bearing operates efficiently within a temperature range of -20 to 110 °C.
Regular lubrication helps maintain its smooth operation and extends its service life.

Application

Industrial Uses of SCE1812 Bearing
SCE1812 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is SCE1812 Bearing Used?
You’ll often find SCE1812 Bearing in automotive transmissions, providing smooth operation under high radial loads. Its press-fit design simplifies installation, saving time during assembly.
Built for Heavy-Duty Use: SCE1812 Bearing
SCE1812 Bearing excels in construction equipment, handling heavy radial loads with ease. The open-end design allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of SCE1812 Bearing
In automotive applications, SCE1812 Bearing supports components like steering systems, while in industrial settings, it’s used in conveyor rollers. Its versatility makes it a reliable choice for both.
Perfect Fit for Automation: SCE1812 Bearing
SCE1812 Bearing is a great match for robotic arms, offering precise movement under radial loads. The high-speed capability ensures efficient performance in automated systems.
