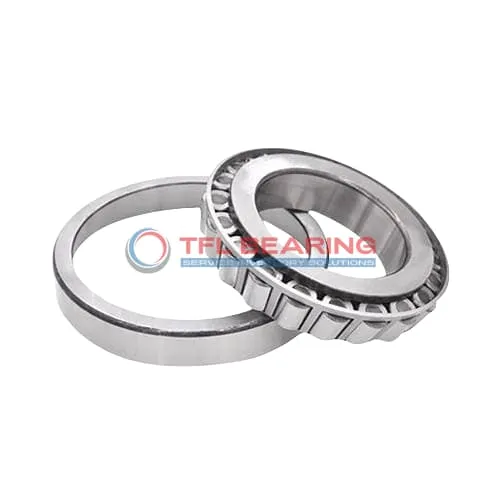

TS (Single Row Tapered Roller Bearings) (Imperial) 623V-614X

TS (Single Row Tapered Roller Bearings) (Imperial) 623V-614X

The 623V-614X is a single-row tapered roller bearing with a 2.25″ bore and 4.5276″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 55300 lbf radially and 7710 lbf thrust, making it versatile for heavy-duty use.

Its open design allows easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures from -30°C to 110°C, suitable for various industrial conditions.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for applications like gearboxes, axles, or machinery where combined loads are common.

Weighing 4 lb, it balances strength and manageability. Compliant with RoHS and REACH standards, it meets safety and environmental requirements.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 623V-614X
  • Brand TFL
  • Interchangeable Timken
  • Size 2.25" x 4.5276" x 1.6151"
  • Bore Dia 2.25"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4.5276"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.625"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 1.24"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.6151"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.14"
  • Cup Backface ToClear Radius 0.12"
  • Cone Frontface Backing Diameter 2.6"
  • Cone Backface Backing Diameter 2.83"
  • Cup Frontface Backing Diameter 4.29"
  • Cup Backface Backing Diameter 3.98"
  • Cage Cone Frontface Clearance 0.11"
  • Cage Cone Backface Clearance 0.13"
  • Effective Center Location -0.55"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 623V
  • Cup Part Number 614X
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 615
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 55300 lbf
  • Static Radial Load 54800 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 14300 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7710 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4 lb

Features

Performance Features of 623V-614X Bearing

623V-614X Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 55,300 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains proper roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

How Is 623V-614X Bearing Engineered for Reliability?

623V-614X Bearing features a single-row tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction enhances durability, while the standard radial clearance allows for smooth operation.
Its effective centre location of -0.55″ ensures stable performance under varying load conditions.
This bearing is interchangeable with Timken models, providing flexibility in replacement options.

Built for Durability: 623V-614X Bearing

623V-614X Bearing’s robust design includes precise cone and cup width tolerances for consistent performance.
The steel cage provides excellent roller guidance, minimising wear during high-load operations.
With a static radial load capacity of 54,800 lbf, it excels in demanding industrial applications.
Its ABEC-1 rating confirms reliable precision for general engineering uses.

Application

Industrial Uses of 623V-614X Bearing
The 623V-614X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads effectively. Its chrome steel construction ensures durability even in demanding environments.

In automotive applications, 623V-614X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial conveyor systems, 623V-614X Bearing’s open design allows for easy lubrication, extending its service life in continuous operation. The steel cage adds stability, reducing wear over time.

Where Is 623V-614X Bearing Used?
You’ll often find 623V-614X Bearing in mining equipment, where its robust design handles high radial and thrust loads. The standard radial clearance ensures smooth operation in dusty conditions.

In power transmission systems, 623V-614X Bearing supports shafts and gears, thanks to its tapered rollers distributing loads evenly. The ABEC-1 rating balances precision and cost for industrial applications.

Built for Heavy-Duty Use: 623V-614X Bearing
The 623V-614X Bearing excels in forestry machinery, where its chrome steel rollers withstand shock loads and rough terrain. Its single-row design simplifies installation and maintenance.

For pump systems, 623V-614X Bearing’s effective center location helps maintain alignment under thrust forces. The steel cage keeps rollers securely spaced, even at high speeds.

Automotive vs Aerospace: Applications of 623V-614X Bearing
In automotive drivetrains, 623V-614X Bearing handles combined loads in differentials, offering a balance of strength and affordability. Its inch sizing suits aftermarket repairs.

For aerospace ground equipment, 623V-614X Bearing’s temperature range (-30° to 110°C) ensures reliability in varying climates. The open design allows for custom lubrication as needed.
