Drawn Cup Needle Roller Bearings SCE1416

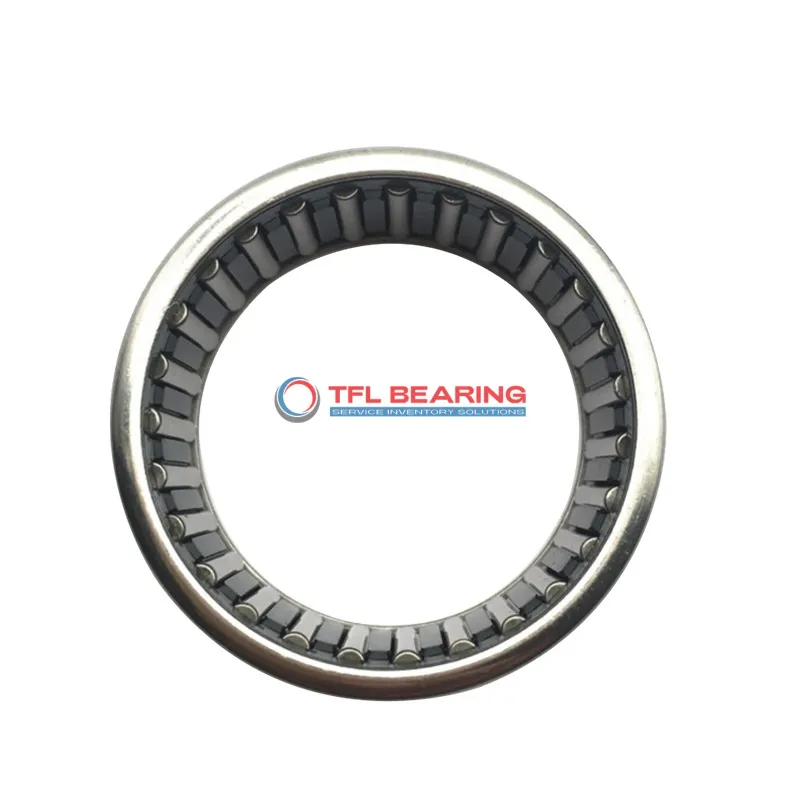

Drawn Cup Needle Roller Bearings SCE1416

The SCE1416 is a drawn cup needle roller bearing with a 0.875″ bore and 1.125″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4968 lbf and spins smoothly at speeds up to 11400 RPM.
Its open-end design and press-fit mounting make it easy to install, while the steel cage ensures durability. The bearing operates well in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or machinery where space is limited but high load capacity is needed.
Regular lubrication is recommended to maintain its performance. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE1416
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.875"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.125"
  • Outer Dia Tolerance Not Rated
  • Width 1"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4968 lbf
  • Static Radial Load 8543 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 11400 rpm
  • Weight 34 g
Drawn Cup Needle Roller Bearings SCE1416 dimension drawing
Download DWG Download PDF

Features

How Does SCE1416 Bearing Handle Heavy Loads?
SCE1416 Bearing is built with steel rings and rollers, offering strong resistance to heavy radial loads.
Its dynamic radial load capacity reaches 4968 lbf, making it suitable for demanding applications.
The open-end design allows for easy press-fit installation, saving time and effort.
With a maximum speed of 11,400 rpm, it delivers reliable performance in various conditions.
SCE1416 Bearing operates efficiently within a temperature range of -20 to 110°C.
Regular lubrication ensures smooth operation and extends its service life.

Application

Common Applications of SCE1416 Bearing
SCE1416 Bearing is widely used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, SCE1416 Bearing fits perfectly in transmission systems, providing smooth rotation under high speeds. Its press-fit mounting simplifies installation in vehicle assemblies.
For automation equipment, SCE1416 Bearing’s needle roller design offers precise movement in robotic arms. The open-end series allows for easy lubrication, extending service life in continuous operations.
Where to Use SCE1416 Bearing
SCE1416 Bearing works well in conveyor systems, handling radial loads efficiently while maintaining low friction. The inch sizing makes it compatible with many North American machinery standards.
In household appliances like washing machines, SCE1416 Bearing supports rotating drums reliably. Its steel cage and rollers ensure quiet operation, even after prolonged use.
