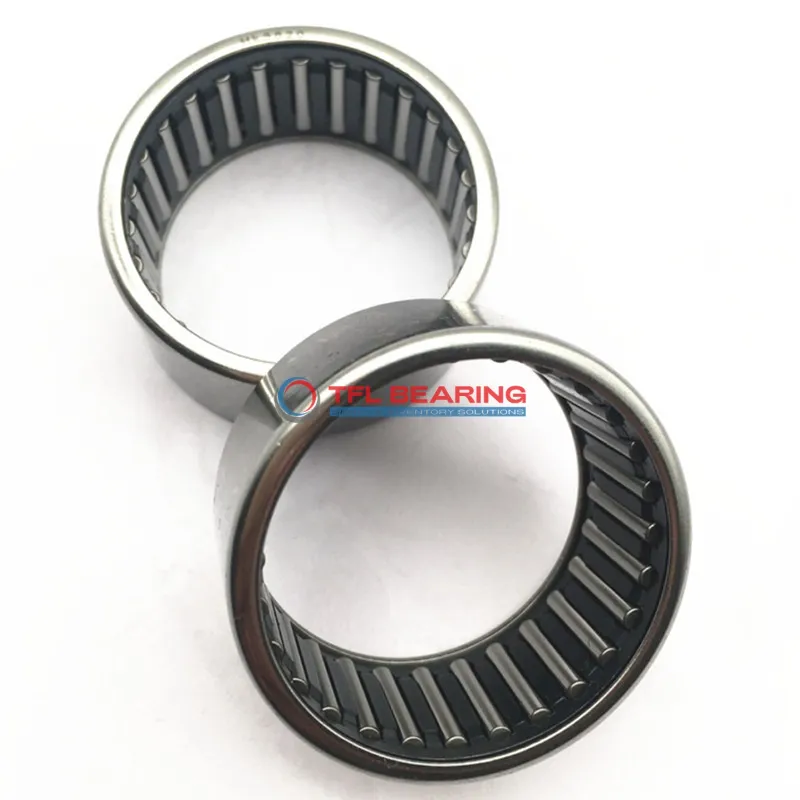

Drawn Cup Needle Roller Bearings SCE128-PP

Drawn Cup Needle Roller Bearings SCE128-PP

The SCE128-PP is a drawn cup needle roller bearing with a 0.75″ bore and 1″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1596 lbf and spins smoothly at speeds up to 13100 RPM.
Its double-seal design keeps contaminants out while maintaining lubrication, ideal for dusty or demanding environments. The press-fit mounting ensures a secure attachment to shafts.
This bearing is interchangeable with INA models, offering flexibility for replacements. Suitable for applications like automotive components or small machinery where space is limited.
Operating in temperatures from -20°C to 110°C, it’s versatile for various conditions. Compliant with RoHS standards for safety and environmental care.
Weighing just 0.5″ in width, it’s compact yet robust for its size. A practical choice for radial load needs in tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number SCE128-PP
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.75"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Double Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1596 lbf
  • Static Radial Load 1866 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 13100 rpm
  • Weight 13 g
Drawn Cup Needle Roller Bearings SCE128-PP dimension drawing
Download DWG Download PDF

Features

Why Choose SCE128-PP Bearing for Precision Tasks?
SCE128-PP Bearing features a double-sealed design, protecting against contaminants while maintaining smooth operation.
Its steel construction ensures durability and reliable performance under radial loads up to 1596 lbf.
The press-fit shaft mount simplifies installation, saving time and effort in assembly.
With a maximum speed of 13,100 rpm, SCE128-PP Bearing is suitable for high-speed applications.
Its compact design, with a 0.75″ bore and 1″ outer diameter, fits seamlessly into tight spaces.
The temperature range of -20 to 110°C allows for versatile use in various environments.

Application

Common Applications of SCE128-PP Bearing
SCE128-PP Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its double-seal design helps keep contaminants out, extending the bearing’s lifespan.
In automotive applications, SCE128-PP Bearing fits well in components such as transmissions and steering systems, thanks to its press-fit mounting and reliable performance. The inch sizing makes it a good match for many American and British vehicle designs.
For automation and robotics, SCE128-PP Bearing’s needle roller design ensures smooth motion in robotic arms and linear actuators. Its steel construction provides durability even in high-speed operations.
In consumer electronics, SCE128-PP Bearing can be found in devices like printers and power tools, where its compact size and efficiency are key. The required lubrication ensures consistent performance over time.
