Drawn Cup Needle Roller Bearings HN1816

Drawn Cup Needle Roller Bearings HN1816

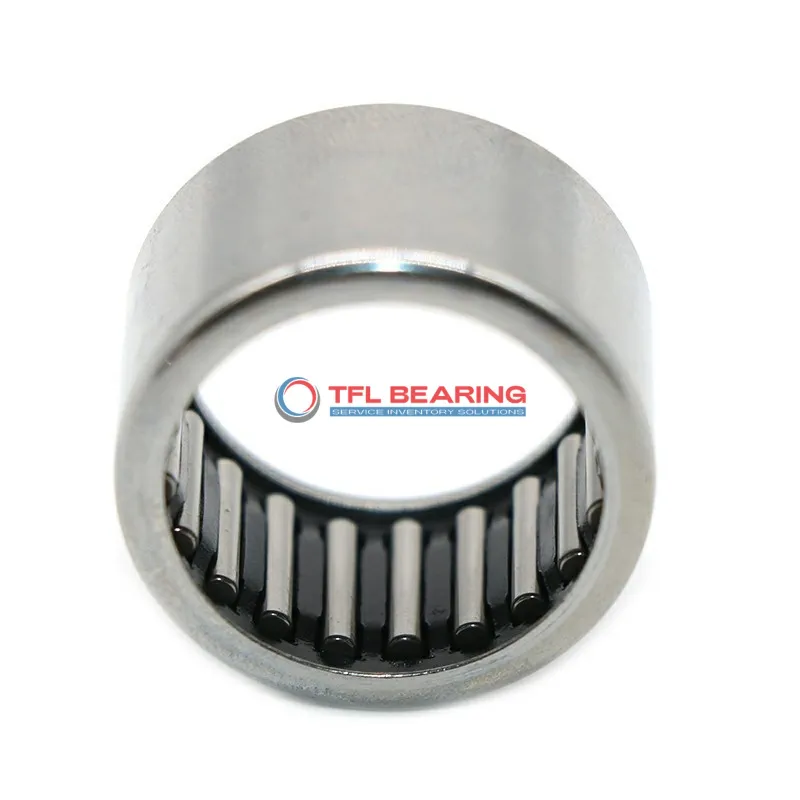

The HN1816 is a drawn cup needle roller bearing with an 18mm bore and 24mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3822 lbf and operates smoothly at speeds up to 6000 RPM.
Its full complement design offers high load capacity without a cage, making it compact yet durable. The open seal allows for easy lubrication, essential for maintaining smooth operation.
This bearing is press-fit mounted, ensuring a secure fit on shafts. It works well in temperatures from -20°C to 110°C, suitable for various industrial environments.
Interchangeable with INA bearings, it’s a practical choice for replacements. Ideal for applications like transmissions or small machinery where space is limited but performance is key. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HN1816
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 18 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 24 mm
  • Outer Dia Tolerance Not Rated
  • Width 16 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Full Complement
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3822 lbf
  • Static Radial Load 7306 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 6000 rpm
  • Weight 20 g

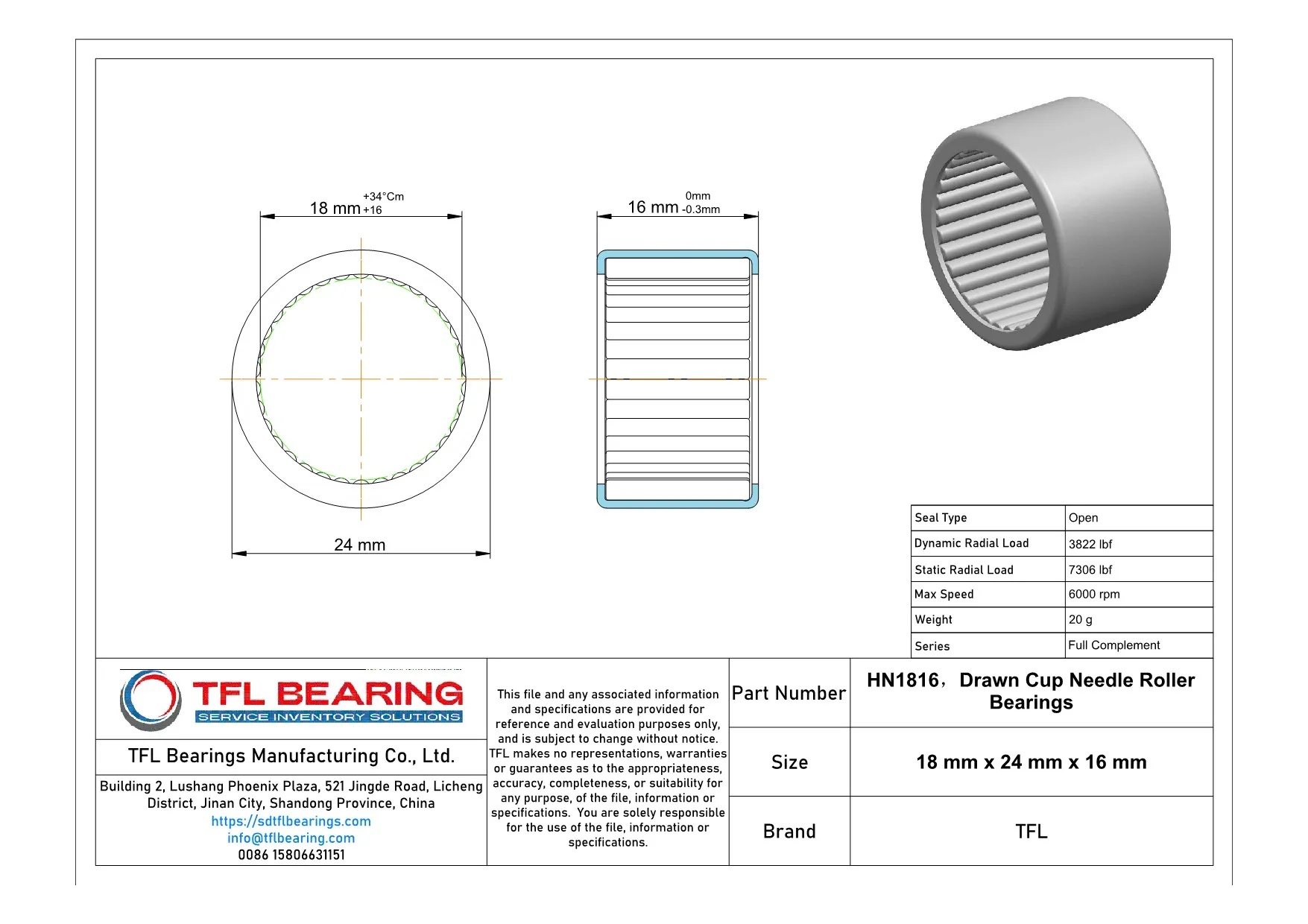

Drawn Cup Needle Roller Bearings HN1816 dimension drawing
Download DWG Download PDF

Features

How Does HN1816 Bearing Handle Heavy Loads?
HN1816 Bearing is built with a full complement needle roller design, offering high radial load capacity.
Its dynamic radial load rating of 3822 lbf ensures reliable performance in demanding applications.
The steel construction provides durability, while the press-fit mounting simplifies installation.
With a maximum speed of 6000 rpm, HN1816 Bearing balances efficiency and strength.

Application

Industrial Uses of HN1816 Bearing
HN1816 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
Where Is HN1816 Bearing Used?
You’ll often find HN1816 Bearing in automotive transmissions, where its press-fit design and high-speed capability provide reliable performance. It’s also a popular choice for small electric motors due to its efficient load handling.
Built for Heavy-Duty Use: HN1816 Bearing
HN1816 Bearing excels in construction equipment like compact hydraulic pumps, where its full complement design handles heavy radial loads. The open seal type allows for easy lubrication, extending its service life.
Automotive vs Industrial: Applications of HN1816 Bearing
In automotive applications, HN1816 Bearing supports components like steering systems, while in industrial settings, it’s used in conveyor rollers. Its metric sizing ensures compatibility across various machinery types.
Perfect Fit for Automation: HN1816 Bearing
HN1816 Bearing works well in robotic arms and assembly line equipment, thanks to its precise radial load handling. The steel cage adds stability, making it suitable for repetitive motion tasks.
