Drawn Cup Needle Roller Bearings HN1412

Drawn Cup Needle Roller Bearings HN1412

The HN1412 is a drawn cup needle roller bearing with a 14mm bore and 20mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2473 lbf and operates smoothly at speeds up to 7500 RPM.
Its open design and full complement construction maximise load capacity, while the press-fit mounting ensures a secure fit. The bearing requires lubrication for optimal performance.
Suitable for temperatures from -20°C to 110°C, this model is interchangeable with INA bearings, making it a practical choice for replacements. Ideal for applications like gear pumps or small engines where space is limited.
Weighing just 0.04kg, it’s compact yet robust for its size. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HN1412
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 14 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 20 mm
  • Outer Dia Tolerance Not Rated
  • Width 12 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Full Complement
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2473 lbf
  • Static Radial Load 3934 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 7500 rpm
  • Weight 12 g

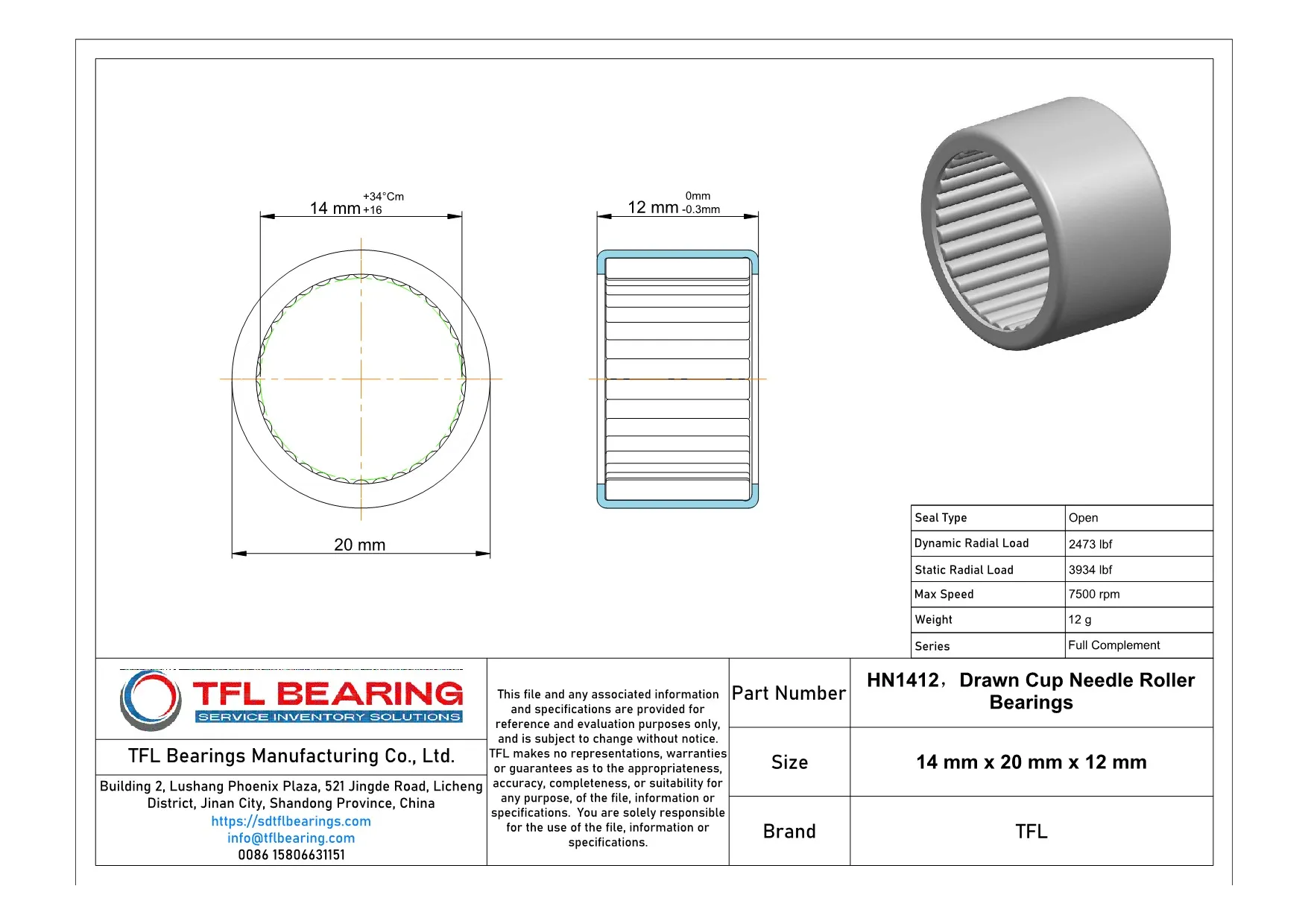

Drawn Cup Needle Roller Bearings HN1412 dimension drawing
Download DWG Download PDF

Features

Performance Features of HN1412 Bearing
HN1412 Bearing is designed with a full complement needle roller construction, offering high load capacity in a compact size.
Its steel rings and rollers provide strong resistance to radial loads, with a dynamic radial load capacity of 2473 lbf.
The press-fit shaft mount ensures secure installation, making it suitable for various applications.
With a maximum speed of 7500 rpm, HN1412 Bearing balances performance and durability.

Application

Industrial Uses of HN1412 Bearing
HN1412 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The full complement needle rollers provide smooth operation even under heavy loads.
What Makes HN1412 Bearing a Preferred Choice?
In automotive applications, HN1412 Bearing fits well in transmission systems and steering mechanisms, thanks to its press-fit mounting. Its steel construction ensures durability and consistent performance over time.
Perfect Fit for Automation: HN1412 Bearing
For robotic arms and automated machinery, HN1412 Bearing offers reliable radial support with minimal maintenance. The open seal design allows for easy lubrication, extending its service life.
Medical vs Industrial: Where HN1412 Bearing Excels
While HN1412 Bearing isn’t typically used in medical devices, it shines in industrial settings like conveyor systems. Its high-speed capability and load tolerance make it a versatile choice for various machinery.
Essential Roles of HN1412 Bearing
In household appliances like washing machines, HN1412 Bearing provides quiet and efficient operation. The steel construction resists wear, ensuring long-term reliability for daily use.
