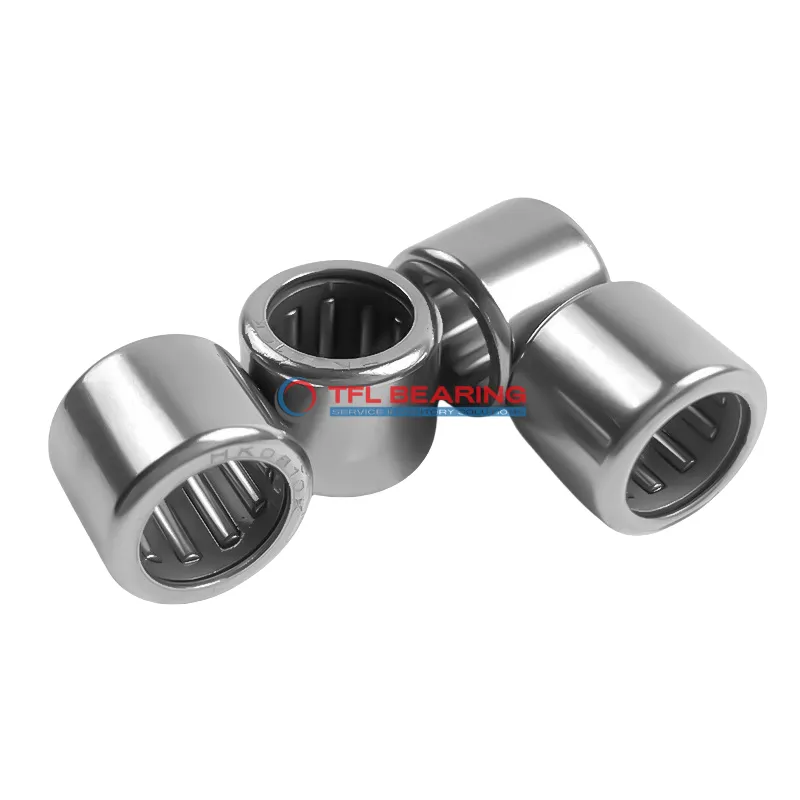

Drawn Cup Needle Roller Bearings HK4016

Drawn Cup Needle Roller Bearings HK4016

The HK4016 is a drawn cup needle roller bearing with a 40mm bore and 47mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 4496 lbf and operates smoothly at speeds up to 6600 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces, while the steel cage ensures durability. The bearing requires lubrication for optimal performance.
This model is interchangeable with INA bearings, offering a practical replacement option. Suitable for applications like automotive components or small machinery where space is limited.
It works well in temperatures from -20°C to 110°C and complies with RoHS standards for safe use. A compact choice at just 16mm wide, balancing strength and size.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK4016
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 40 mm
  • Bore Dia Tolerance +25°Cm-+50°Cm
  • Outer Dia 47 mm
  • Outer Dia Tolerance Not Rated
  • Width 16 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 4496 lbf
  • Static Radial Load 8655 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 6600 rpm
  • Weight 39 g
Drawn Cup Needle Roller Bearings HK4016 dimension drawing
Download DWG Download PDF

Features

Why Choose HK4016 Bearing for Precision Tasks?
HK4016 Bearing features a steel construction, offering strong resistance to radial loads with a dynamic capacity of 4496 lbf.
Its needle roller design ensures efficient load distribution, enhancing precision in tight spaces.
The open-end series allows for easy press-fit installation, saving time during assembly.
With a maximum speed of 6600 rpm, HK4016 Bearing balances performance and durability.
HK4016 Bearing operates reliably in temperatures ranging from -20 to 110 °C.
Its steel cage maintains roller alignment, reducing wear and extending service life.

Application

Where Is HK4016 Bearing Used?
HK4016 Bearing is commonly found in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The press-fit mounting ensures a secure installation, reducing maintenance needs.
In automotive applications, HK4016 Bearing supports components like steering systems and transmissions, providing smooth operation under heavy loads. Its steel construction offers durability, even in demanding driving conditions.
For automation equipment, HK4016 Bearing works well in robotic arms and conveyor systems, thanks to its high-speed capability. The open-end design allows for easy lubrication, extending its service life.
In household appliances like washing machines, HK4016 Bearing handles radial loads efficiently, ensuring quiet and reliable performance. Its metric sizing makes it compatible with a variety of European-made devices.
