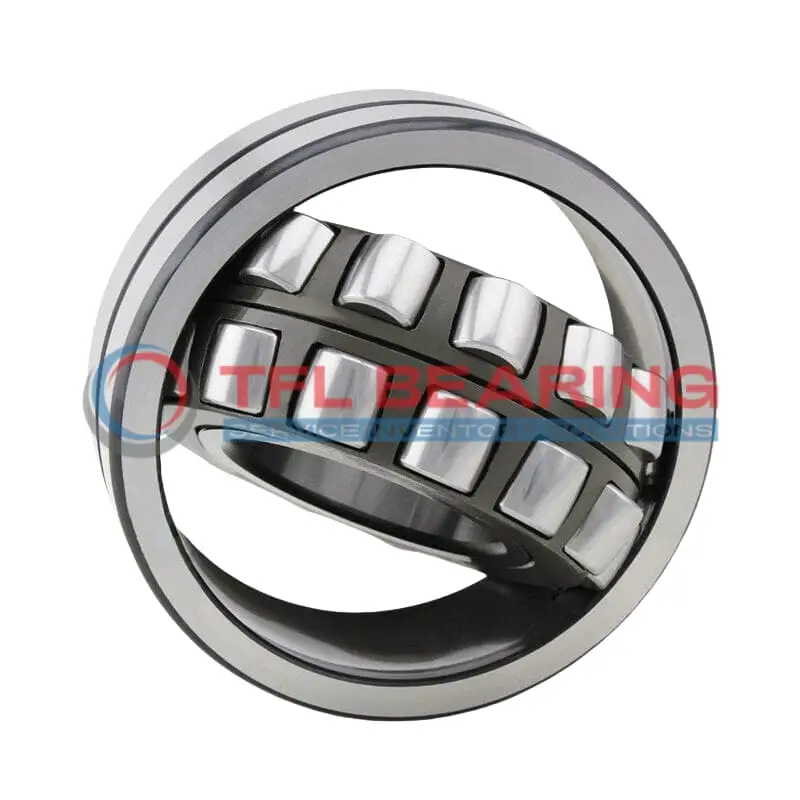

22324/114.8 CC/C3 Double Row Spherical Roller Bearing

22324/114.8 CC/C3 Double Row Spherical Roller Bearing

The 22324/114.8 CC/C3 is a double-row spherical roller bearing with a 120mm bore and 260mm outer diameter, built from sturdy chrome steel. It handles combined loads and fits well in heavy-duty applications.

Its spherical roller design allows slight misalignment, while the steel cage ensures durability. The bearing operates smoothly at speeds up to 20 RPM and in temperatures from -30°C to 200°C.

With a C3 radial clearance, it accommodates thermal expansion, making it suitable for industrial machinery. The open design requires regular lubrication for optimal performance.

Weighing 22kg, this robust bearing is interchangeable with SKF models. Ideal for use in mining equipment or large gearboxes where high static radial loads are common. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22324/114.8 CC/C3
  • Brand TFL
  • Interchangeable SKF
  • Size 120 x 260 x 86 mm
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 86 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 152 mm
  • Shoulder/Recess Dia Of Outer Ring 216 mm
  • Width Of Lubrication Groove 13.9 mm
  • Diameter Of Lubrication Hole 7.5 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Static Radial Load 251786 lbf
  • Max Speed 20 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance C3
  • RoHs Compliant
  • REACH Compliant
  • Weight 22 kg

Features

How Does 22324/114.8 CC/C3 Bearing Handle Combined Loads?

22324/114.8 CC/C3 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures durability, even under heavy static radial loads up to 251,786 lbf.

The C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments up to 200°C.
With a maximum speed of 20 rpm, it provides stable performance in slow-moving, high-load applications.

The steel cage maintains roller alignment, reducing friction and extending operational life.
Its open design simplifies lubrication, ensuring smooth operation with minimal maintenance.

Application

Industrial Uses of 22324/114.8 CC/C3 Bearing
22324/114.8 CC/C3 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles combined loads efficiently. The spherical roller construction also compensates for minor misalignments, ensuring smooth operation.

Where Is 22324/114.8 CC/C3 Bearing Used?
In mining equipment, 22324/114.8 CC/C3 Bearing supports large radial and axial loads, making it ideal for conveyor systems and excavators. Its chrome steel rollers provide durability in harsh, abrasive environments.

Built for Heavy-Duty Use: 22324/114.8 CC/C3 Bearing
22324/114.8 CC/C3 Bearing excels in paper mills, where its high static radial load capacity (251786 lbf) ensures reliability. The C3 radial clearance allows for thermal expansion in high-temperature processes.

Automotive vs Aerospace: Applications of 22324/114.8 CC/C3 Bearing
In automotive applications, 22324/114.8 CC/C3 Bearing is found in heavy-duty axles, while in aerospace, it supports ground-handling equipment. The metric sizing ensures compatibility with global standards.

Perfect Fit for Automation: 22324/114.8 CC/C3 Bearing
22324/114.8 CC/C3 Bearing is used in robotic assembly lines, where its precision and load capacity enhance performance. The steel cage adds stability during high-speed operations.
