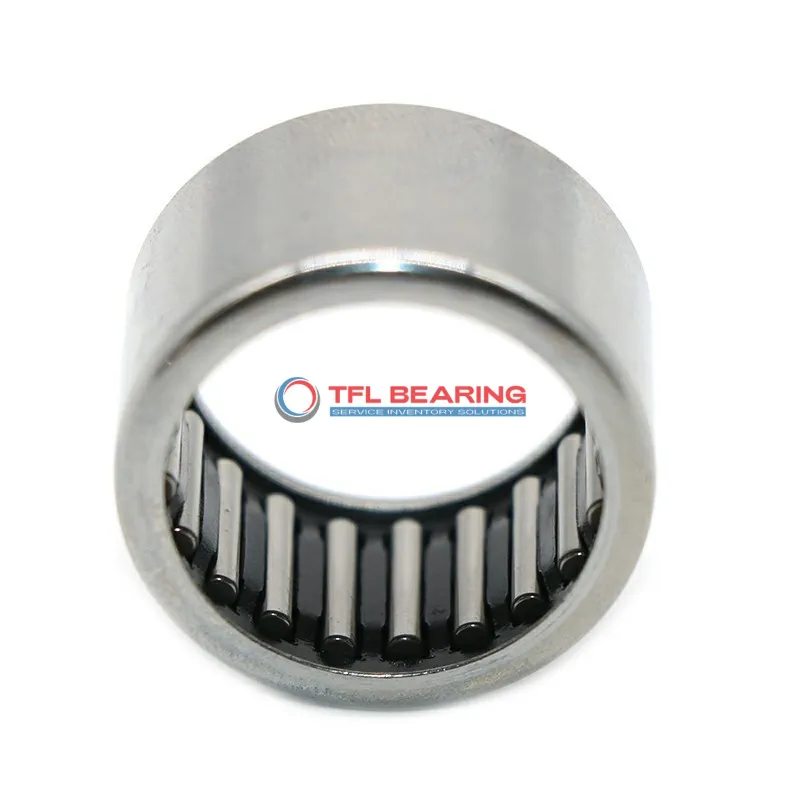

Drawn Cup Needle Roller Bearings HK1712

Drawn Cup Needle Roller Bearings HK1712

The HK1712 is a drawn cup needle roller bearing with a 17mm bore and 23mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1776 lbf and spins at speeds up to 14700 RPM.
Its open-end design and press-fit mounting make it easy to install in tight spaces. The steel cage ensures durability, while the needle rollers provide smooth operation under load.
This bearing requires lubrication for optimal performance and works in temperatures from -20°C to 110°C. It’s interchangeable with INA bearings, offering a practical replacement option.
Ideal for applications like automotive components or small machinery where space is limited but high load capacity is needed. RoHS compliant for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK1712
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 17 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 23 mm
  • Outer Dia Tolerance Not Rated
  • Width 12 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1776 lbf
  • Static Radial Load 2316 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 14700 rpm
  • Weight 12 g
Drawn Cup Needle Roller Bearings HK1712 dimension drawing
Download DWG Download PDF

Features

How Does HK1712 Bearing Handle High-Speed Applications?
HK1712 Bearing is built with steel rings and needles, offering strong radial load capacity up to 1776 lbf.
Its press-fit design ensures secure mounting, making it ideal for compact spaces.
The open-end construction allows for easy lubrication, maintaining smooth operation even at 14,700 rpm.
With a temperature range of -20 to 110°C, it performs reliably in various conditions.
HK1712 Bearing’s single-row design reduces friction, enhancing efficiency and longevity.
Its steel cage keeps the needles aligned, ensuring consistent performance under load.

Application

Common Applications of HK1712 Bearing
HK1712 Bearing is widely used in industrial equipment, especially in compact spaces like conveyor systems and printing machines where its needle roller design excels. The press-fit mounting ensures a secure installation, ideal for high-vibration environments.
In automotive applications, HK1712 Bearing fits well in gearboxes and steering systems, handling radial loads efficiently. Its steel construction offers durability, making it suitable for long-term use in vehicles.
For automation and robotics, HK1712 Bearing provides smooth motion in mechanical arms and linear guides. The open-end design allows easy lubrication, maintaining performance in continuous operations.
In consumer electronics, HK1712 Bearing is found in printers and small appliances, where its compact size and reliability are key. The metric dimensions ensure compatibility with various European and Asian designs.
