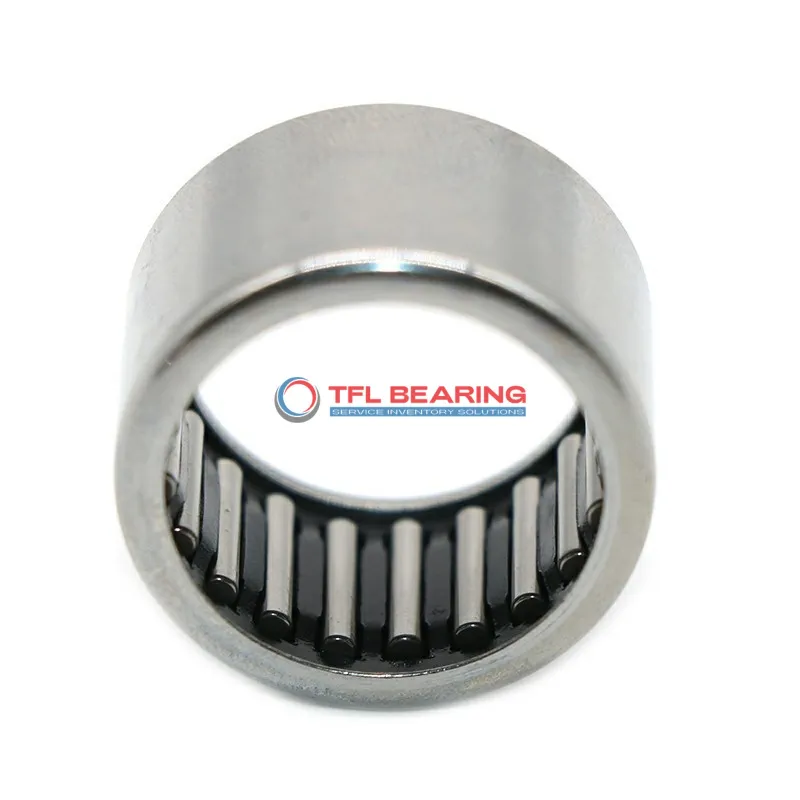

Drawn Cup Needle Roller Bearings HK1614-RS

Drawn Cup Needle Roller Bearings HK1614-RS

The HK1614-RS is a drawn cup needle roller bearing with a 16mm bore and 22mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1709 lbf and can reach speeds of 9300 RPM.
Its single-seal design helps keep dirt out while maintaining smooth operation, and the press-fit mounting ensures a secure fit. The bearing requires lubrication for optimal performance.
This model is interchangeable with INA bearings, making it a practical choice for replacements. It’s well-suited for applications like automotive components or small machinery where space is limited.
With a temperature range of -20°C to 110°C, it’s versatile for various environments. Compliant with RoHS standards, it’s a safe and durable option for radial load needs.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number HK1614-RS
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 16 mm
  • Bore Dia Tolerance +16-+34°Cm
  • Outer Dia 22 mm
  • Outer Dia Tolerance Not Rated
  • Width 14 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Single Seal
  • Series Open End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1709 lbf
  • Static Radial Load 2181 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 9300 rpm
  • Weight 13 g
Drawn Cup Needle Roller Bearings HK1614-RS dimension drawing
Download DWG Download PDF

Features

How Does HK1614-RS Bearing Handle Radial Loads?
HK1614-RS Bearing is built with steel rings and needles, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 1709 lbf, ensuring reliable performance in various applications.
The single seal design helps keep contaminants out, extending the bearing’s service life.
With a maximum speed of 9,300 rpm, it balances durability and efficiency.

Application

Common Applications of HK1614-RS Bearing
HK1614-RS Bearing is widely used in industrial equipment, such as conveyor systems and packaging machinery, where its compact design handles radial loads efficiently. The single seal helps keep contaminants out, extending service life in dusty environments.
In automotive applications, HK1614-RS Bearing fits well in gearboxes and steering systems, providing smooth rotation under high radial forces. Its press-fit mounting ensures a secure attachment, reducing maintenance needs.
For automation projects, HK1614-RS Bearing works reliably in robotic arms and linear guides, thanks to its steel construction and high-speed capability. The open-end series allows for easy integration into various mechanical designs.
HK1614-RS Bearing also suits household appliances like washing machines, where its durability and quiet operation are appreciated. The metric sizing makes it compatible with many European-made devices.
Medical devices such as dental drills benefit from HK1614-RS Bearing’s precision and consistent performance. The steel cage and rollers ensure long-term reliability in demanding clinical settings.
