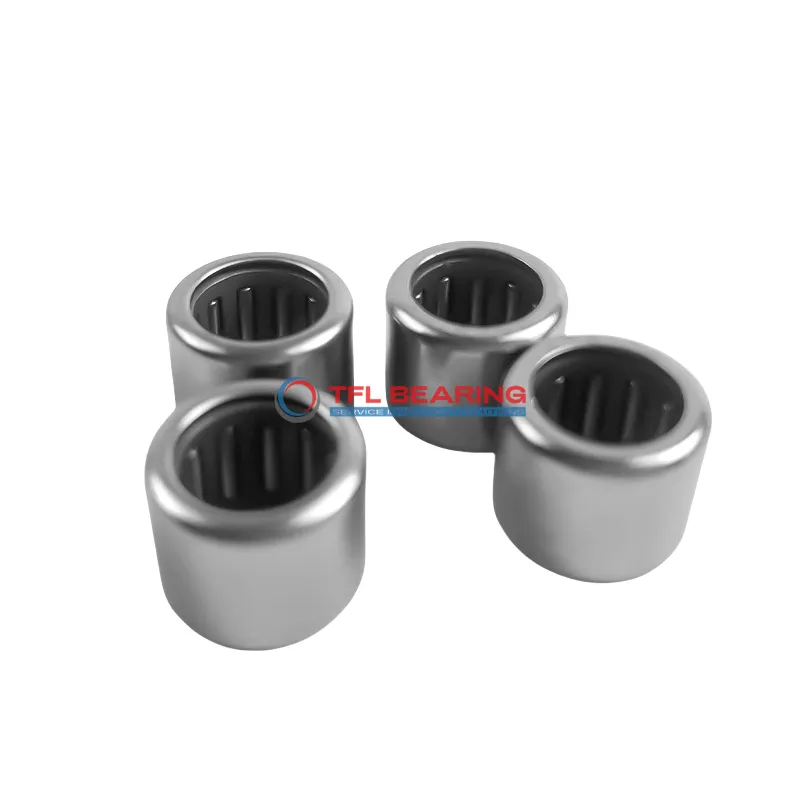

Drawn Cup Needle Roller Bearings HK1414-RS

The HK1414-RS is a drawn cup needle roller bearing with a 14mm bore and 20mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 1596 lbf and spins smoothly at speeds up to 10500 RPM.
Its single-seal design helps keep contaminants out while maintaining easy access for lubrication. The press-fit shaft mount ensures a secure installation.
This bearing is interchangeable with INA models, making it a practical choice for replacements. Ideal for applications like automotive components or small machinery where space is limited.
It operates well in temperatures from -20°C to 110°C and meets RoHS standards for safety. The compact 14mm width makes it a space-saving solution.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number HK1414-RS
Brand TFL
Interchangeable INA
Bore Dia 14 mm
Bore Dia Tolerance +16-+34°Cm
Outer Dia 20 mm
Outer Dia Tolerance Not Rated
Width 14 mm
Width Tolerance -0.3mm to 0mm
System of Measurement Metric
Bearing Type Roller
Roller Bearing Type Needle
For Load Direction Radial
Construction Single Row
Seal Type Single Seal
Series Open End
Ring Material Steel
Ball Material Steel
Cage Material Steel
Dynamic Radial Load 1596 lbf
Static Radial Load 1911 lbf
Lubrication Required
Shaft Mount Type Press Fit
Temperature Range -20 to 110 °C
RoHS Compliant
Max Speed 10500 rpm
Weight 12 g

Drawn Cup Needle Roller Bearings HK1414-RS dimension drawing

Download DWG Download PDF

Features

How Does HK1414-RS Bearing Reduce Friction?
HK1414-RS Bearing features a drawn cup design with needle rollers, optimised for radial load applications.
The steel construction ensures durability, while the single seal helps retain lubrication for smoother operation.
With a dynamic radial load capacity of 1596 lbf, it handles demanding conditions efficiently.
Its press-fit mounting simplifies installation, saving time and effort during assembly.
HK1414-RS Bearing operates at speeds up to 10,500 rpm, balancing performance and reliability.
The temperature range of -20 to 110°C makes it suitable for various industrial environments.

Application

Common Applications of HK1414-RS Bearing
HK1414-RS Bearing is widely used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for space-constrained applications. The single seal helps keep contaminants out, extending the bearing’s lifespan in dusty environments.
In automotive systems, HK1414-RS Bearing is often found in steering columns and transmission assemblies, providing smooth rotation under heavy loads. Its press-fit mounting ensures a secure installation, reducing maintenance needs.
For automation equipment, HK1414-RS Bearing supports precise movements in robotic arms and conveyor systems. The steel construction offers durability, while the high-speed capability keeps operations running efficiently.
In household appliances like washing machines, HK1414-RS Bearing ensures quiet and reliable performance. Its metric sizing makes it a versatile choice for various European and Asian brands.
