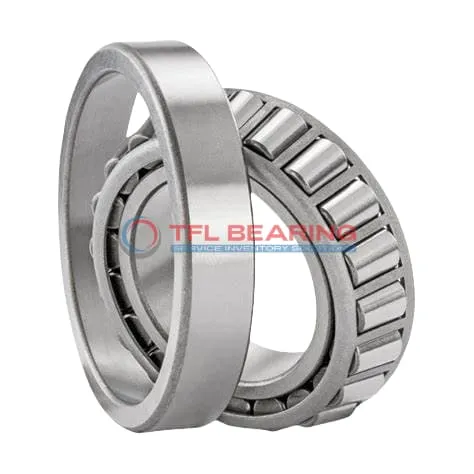

TS (Single Row Tapered Roller Bearings) (Imperial) 538-532X

The 538-532X is a single-row tapered roller bearing with a 2.1649″ bore and 4.25″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 38700 lbf radially and 5090 lbf thrust, making it versatile for various applications.

Its open design allows easy lubrication, while the steel cage ensures durability under heavy use. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for industrial machinery or automotive systems where combined loads are common.

Weighing 3.1 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for most environments.

The tapered roller design provides effective load distribution, enhancing longevity. Suitable for applications requiring standard radial clearance or optional C3/C4/C5 grades.

Its ABEC-1 rating ensures consistent performance without over-engineering. A practical choice for maintenance or new installations in demanding settings.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 538-532X
Brand TFL
Interchangeable Timken
Size 2.1649" x 4.25" x 1.4376"
Bore Dia 2.1649"
Bore Dia Tolerance +0.005" to 0
Outer Dia 4.25"
Outer Dia Tolerance +0.001" to 0
Cone Width 1.455"
Cone Width Tolerance +0.003" to -0.01
Cup Width 1.125"
Cup Width Tolerance +0.002" to -0.01
Width 1.4376"
Width Tolerance +0.008" to 0
Cone Backface ToClear Radius 0.03"
Cup Backface ToClear Radius 0.130"
Cone Frontface Backing Diameter 2.44"
Cone Backface Backing Diameter 2.48"
Cup Frontface Backing Diameter 3.96"
Cup Backface Backing Diameter 3.70"
Cage Cone Frontface Clearance 0.07"
Cage Cone Backface Clearance 0.08"
Effective Center Location -0.48"
System of Measurement Inch
Type Bearing
Cone Part Number 538
Cup Part Number 532X
Bearing Type Roller
Roller Bearing Type Tapered
For Load Direction Combined
Construction Single Row
Seal Type Open
Cups Type Standard
Series 535
Ring Material Chrome Steel
Roller Material Chrome Steel
Cage Material Steel
Dynamic Radial Load 38700 lbf
Static Radial Load 46200 lbf
Dynamic Radial Rating(90 Million Revolutions)(C90) 10000 lbf
Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 5090 lbf
Lubrication Required
Temperature Range -30° to 110 °C
ABEC Rating ABEC-1
Radial Clearance Standard (Available in C3/C4/C5)
RoHS Compliant
REACH Compliant
Weight 3.1 lb

Features

Performance Features of 538-532X Bearing

538-532X Bearing is crafted with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 38,700 lbf, ensuring reliable performance in various applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in diverse environments.

How Does 538-532X Bearing Reduce Friction?

538-532X Bearing’s tapered roller design minimises friction, promoting smooth operation under heavy loads.
The chrome steel construction enhances durability, while the steel cage ensures proper roller spacing.
Its effective centre location of -0.48″ optimises load distribution for efficient performance.
This design reduces wear, making it suitable for long-term use.

Engineered for Precision: 538-532X Bearing

538-532X Bearing provides precise performance with its standard radial clearance and ABEC-1 rating.
The single-row tapered roller construction handles both radial and thrust loads effectively.
Its dimensional tolerances ensure consistent fit and function in various assemblies.
The bearing requires lubrication, which helps maintain its smooth operation over time.

Steel vs Ceramic Bearings: Strengths of 538-532X Bearing

538-532X Bearing’s chrome steel construction offers excellent strength and wear resistance.
It supports dynamic thrust loads up to 5,090 lbf, making it reliable for demanding applications.
The steel cage provides stability, while the standard cup type simplifies installation.
With a weight of 3.1 lb, it balances durability and practicality in industrial settings.

Application

Industrial Uses of 538-532X Bearing
The 538-532X Bearing is commonly used in heavy machinery, such as construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability in rugged environments.

In automotive applications, 538-532X Bearing fits well in wheel hubs and differential systems, providing reliable performance under varying loads. The inch sizing makes it compatible with many North American vehicle models.

For industrial automation, 538-532X Bearing supports conveyor systems and robotic arms, where its open design allows for easy lubrication. The steel cage adds stability during high-speed operations.

What Makes 538-532X Bearing a Preferred Choice?
538-532X Bearing is often chosen for its ability to manage both radial and thrust loads in applications like gearboxes and power transmission systems. Its standard radial clearance offers flexibility for different setups.

The bearing’s ABEC-1 rating ensures consistent performance in general machinery, while the temperature range suits most industrial environments. Its interchangeability with Timken models adds to its practicality.
