Drawn Cup Needle Roller Bearings BK2016

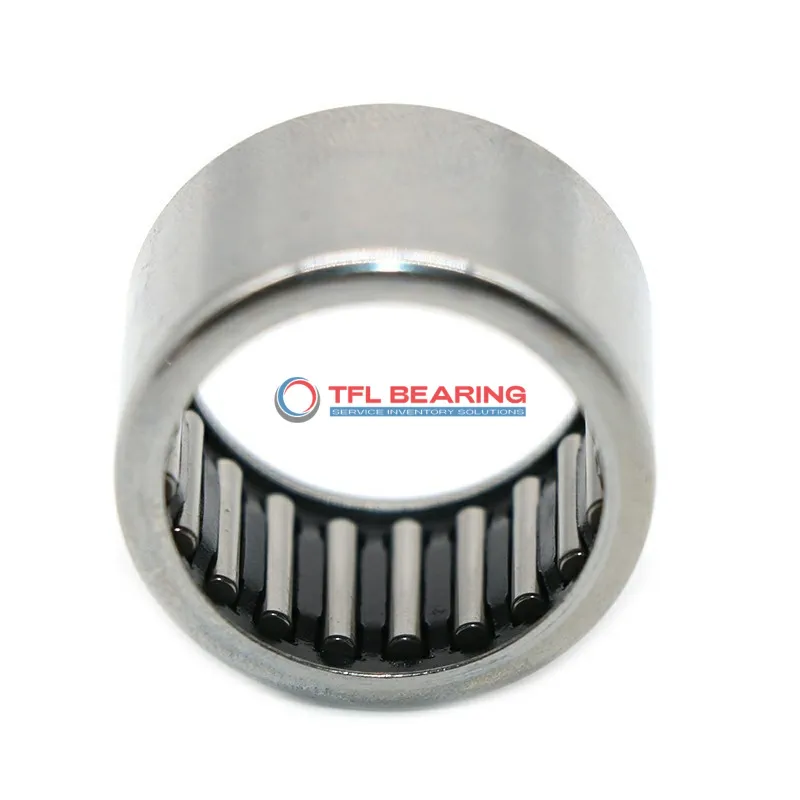

Drawn Cup Needle Roller Bearings BK2016

The BK2016 is a drawn cup needle roller bearing with a 20mm bore and 26mm outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2855 lbf and spins smoothly at speeds up to 12700 RPM.
Its open design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing operates well in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. It’s ideal for applications like automotive components or small machinery where space is limited.
Regular lubrication is needed to maintain its performance. Compliant with RoHS standards, it’s a safe and dependable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BK2016
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 20 mm
  • Bore Dia Tolerance +20-+41°Cm
  • Outer Dia 26 mm
  • Outer Dia Tolerance Not Rated
  • Width 16 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2855 lbf
  • Static Radial Load 4519 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 12700 rpm
  • Weight 22 g
Drawn Cup Needle Roller Bearings BK2016 dimension drawing
Download DWG Download PDF

Features

How Does BK2016 Bearing Reduce Friction?
BK2016 Bearing features a drawn cup design with precision needle rollers, ensuring smooth radial load distribution.
Its steel construction provides durability while minimising friction during high-speed operation.
The press-fit mounting simplifies installation, making it suitable for compact spaces.
With a maximum speed of 12,700 rpm, it offers reliable performance in various applications.

Application

Key Fields for BK2016 Bearing
BK2016 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding conditions.
In automotive applications, BK2016 Bearing fits well in transmission systems, providing smooth rotation under high speeds. Its press-fit mounting simplifies installation in vehicle assemblies.
For automation equipment, BK2016 Bearing supports precise movements in robotic arms and conveyor systems. The open seal design allows for easy lubrication, extending its service life.
In household appliances like washing machines, BK2016 Bearing handles radial loads efficiently, ensuring quiet and reliable operation. Its metric sizing makes it compatible with various European models.
Medical devices such as dental drills benefit from BK2016 Bearing’s high-speed performance and consistent reliability. The steel cage adds stability during prolonged use.
