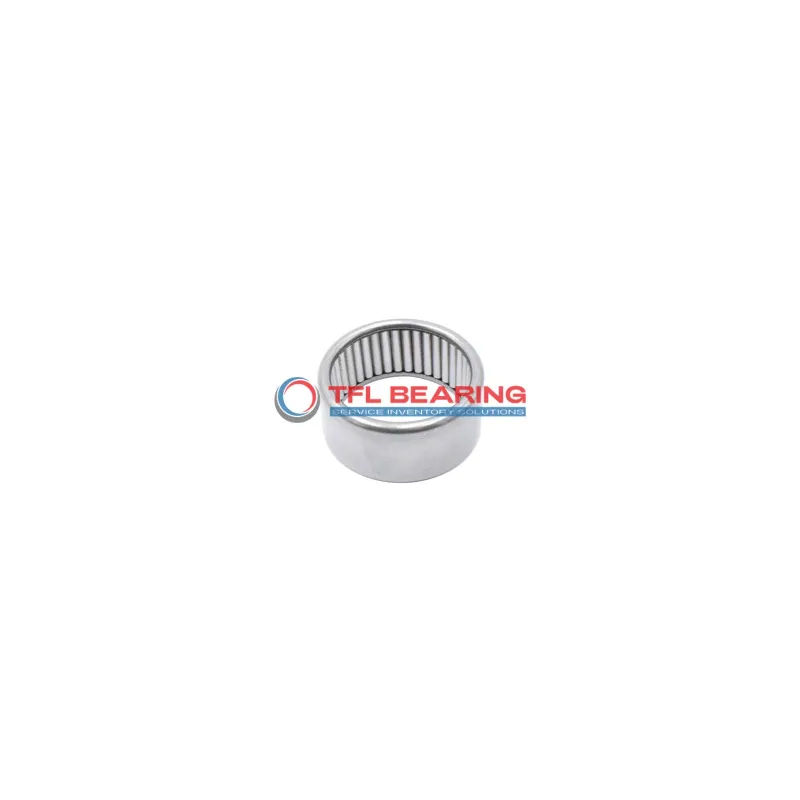

Drawn Cup Needle Roller Bearings BK1012

Drawn Cup Needle Roller Bearings BK1012

The BK1012 is a compact drawn cup needle roller bearing with a 10mm bore and 14mm outer diameter, crafted from sturdy steel. It handles radial loads up to 1236 lbf and spins efficiently at speeds up to 24300 RPM.
Its open, single-row design with a press-fit shaft mount ensures easy installation and reliable performance. The steel cage and rollers provide durability for demanding applications.
This bearing is interchangeable with INA models, making it a practical choice for replacements. It works well in temperatures from -20°C to 110°C and requires regular lubrication.
Ideal for use in automotive components or small machinery where space is limited but high radial load capacity is needed. RoHS compliant for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BK1012
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 10 mm
  • Bore Dia Tolerance +13-+31°Cm
  • Outer Dia 14 mm
  • Outer Dia Tolerance Not Rated
  • Width 12 mm
  • Width Tolerance -0.3mm to 0mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 1236 lbf
  • Static Radial Load 1529 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 24300 rpm
  • Weight 5 g
Drawn Cup Needle Roller Bearings BK1012 dimension drawing
Download DWG Download PDF

Features

How Does BK1012 Bearing Handle High-Speed Applications?
BK1012 Bearing features a steel construction, providing strong radial load capacity up to 1236 lbf.
Its needle roller design ensures smooth operation even at high speeds of 24,300 rpm.
The press-fit shaft mount type simplifies installation, saving time and effort.
BK1012 Bearing operates efficiently within a temperature range of -20 to 110°C.
With its open design, BK1012 Bearing allows for easy lubrication and maintenance.
The steel cage keeps the rollers aligned, reducing wear and extending service life.

Application

Industrial Uses of BK1012 Bearing
BK1012 Bearing is commonly used in compact industrial machinery, such as small gearboxes and conveyor systems, where space is limited but radial load capacity is essential. Its press-fit design ensures a secure mounting, reducing the risk of slippage during operation.
What Makes BK1012 Bearing a Preferred Choice?
In automotive applications, BK1012 Bearing fits well in components like steering systems and transmissions, offering reliable performance under high radial loads. The steel construction provides durability, making it suitable for long-term use in demanding environments.
Perfect Fit for Automation: BK1012 Bearing
For automation equipment, BK1012 Bearing works efficiently in robotic arms and precision machinery, where its high-speed capability and compact size are advantageous. The open seal type allows for easy lubrication, maintaining smooth operation over time.
Medical vs Industrial: Where BK1012 Bearing Excels
While BK1012 Bearing isn’t typically used in medical devices, it shines in industrial settings like packaging machines, where its radial load handling and speed tolerance are key. The steel cage ensures stability, even in continuous operation scenarios.
Consumer Electronics and BK1012 Bearing
In smaller devices like printers and electric tools, BK1012 Bearing provides quiet and efficient performance. Its metric sizing makes it compatible with a variety of consumer products, ensuring versatility across different applications.
