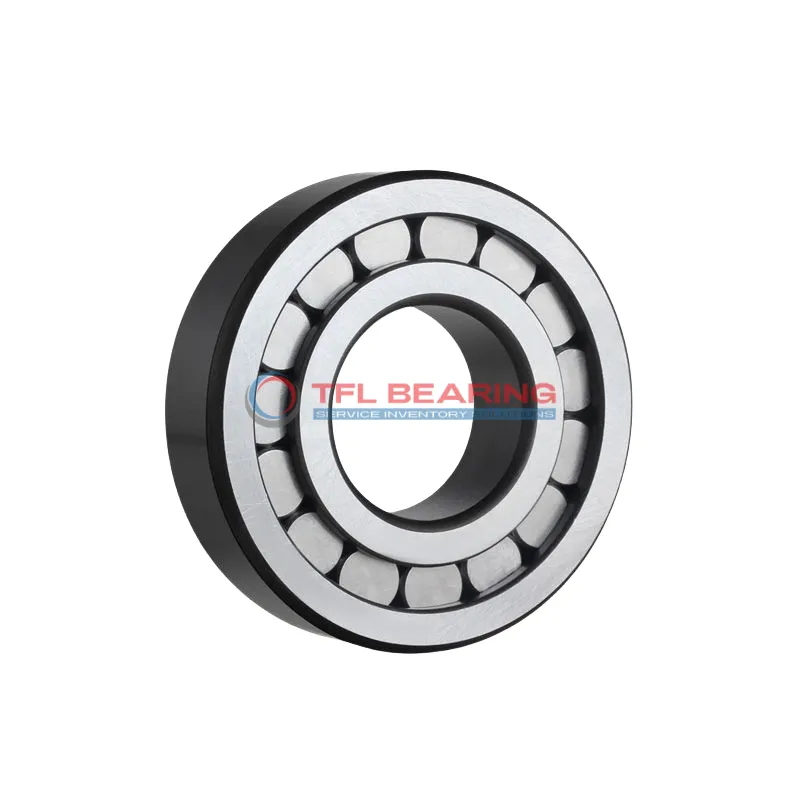

Single Row Full Complement Cylindrical Roller Bearings NCF 2996 V

Single Row Full Complement Cylindrical Roller Bearings NCF 2996 V

The NCF 2996 V is a single row full complement cylindrical roller bearing, measuring 480mm by 650mm by 100mm. Made from sturdy chrome steel, it handles combined loads with a dynamic radial load capacity of 515250 lbf.

Its full complement design means it has no cage, allowing for higher load capacity and smoother operation. The open seal type makes lubrication with grease or oil straightforward.

This bearing suits heavy-duty applications like industrial gearboxes or large machinery, where high radial loads are common. It operates well in temperatures from -30°C to 110°C.

Weighing 93kg, it’s built for durability and long service life. Compliant with RoHS and REACH standards, it’s a reliable choice for demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NCF 2996 V
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 480 mm
  • Bore Dia Tolerance -0.045mm to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.075mm to 0
  • Width 100 mm
  • Width Tolerance -0.45mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Shoulder Dia Of Inner Ring 538 mm
  • Shoulder Dia Outer Ring 600 mm
  • Raceway Diameter Outer Ring 615 mm
  • Chamfer Dimension r1,2(min.) 5 mm
  • Permissible Axial Displacement(max.) 7 mm
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Full complement of rollers (no cage)
  • Dynamic Radial Load 515250 lbf
  • Static Radial Load 1102500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 93 kg

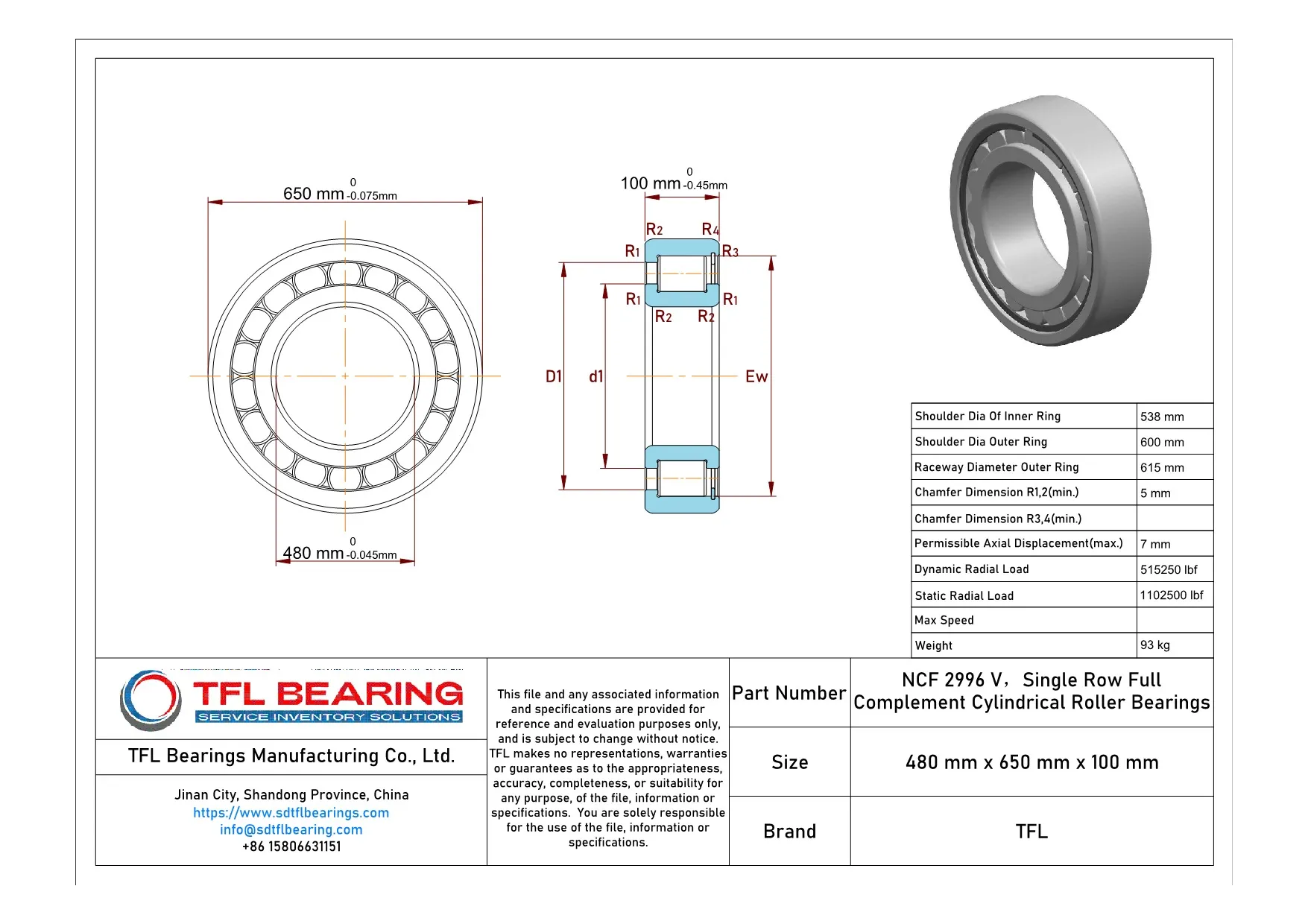

Single Row Full Complement Cylindrical Roller Bearings NCF 2996 V dimension drawing
Download DWG Download PDF

Features

Performance Features of NCF 2996 V Bearing

NCF 2996 V Bearing is built with chrome steel rings and rollers, offering high resistance to combined loads.
Its dynamic radial load capacity reaches 515,250 lbf, making it suitable for heavy-duty applications.

The full complement of rollers ensures maximum load capacity without a cage, enhancing durability.
With a permissible axial displacement of 7 mm, it accommodates slight misalignments during operation.

NCF 2996 V Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.

The precise tolerances and robust construction ensure reliable performance in demanding conditions.
Weighing 93 kg, it is designed for industrial applications requiring strength and precision.

Application

Key Fields for NCF 2996 V Bearing
NCF 2996 V Bearing is commonly used in heavy industrial equipment like rolling mills and large gearboxes, where its full complement design handles high radial loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

In wind turbine applications, NCF 2996 V Bearing supports the main shaft, providing stability under combined loads. Its chrome steel construction ensures durability in harsh outdoor environments, making it a reliable choice for renewable energy systems.

For mining machinery, NCF 2996 V Bearing excels in conveyor systems and crushers, where its robust design withstands extreme loads. The absence of a cage allows for maximum roller count, enhancing load capacity in compact spaces.

How Does NCF 2996 V Bearing Improve Performance?
NCF 2996 V Bearing enhances performance in paper manufacturing by reducing friction in large drying cylinders. Its full complement rollers distribute loads evenly, minimising wear and maintenance downtime.

In steel production, NCF 2996 V Bearing handles the intense loads of continuous casting machines. The chrome steel rollers resist deformation, ensuring consistent operation even at high temperatures.

Built for Heavy-Duty Use: NCF 2996 V Bearing
NCF 2996 V Bearing is ideal for marine propulsion systems, where its large size and load capacity support propeller shafts. The grease or oil lubrication options adapt to various operating conditions.

In construction equipment like tunnel boring machines, NCF 2996 V Bearing provides reliable performance under extreme pressures. Its metric dimensions ensure compatibility with international machinery standards.

Automotive vs Aerospace: Applications of NCF 2996 V Bearing
In automotive testing rigs, NCF 2996 V Bearing withstands the rigorous demands of prototype evaluation. Its high static load capacity makes it suitable for stationary load applications.

For aerospace ground support equipment, NCF 2996 V Bearing offers precision in aircraft maintenance platforms. The temperature range accommodates both hangar and outdoor use.
