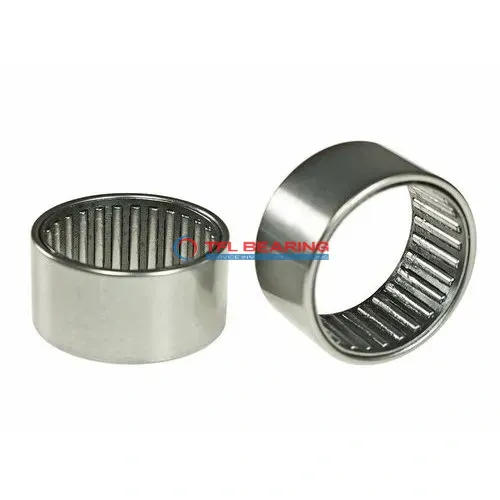

Drawn Cup Needle Roller Bearings BCH1816

Drawn Cup Needle Roller Bearings BCH1816

The BCH1816 is a drawn cup needle roller bearing with a 1.125″ bore and 1.5″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 8093 lbf and operates smoothly at speeds up to 8700 RPM.
Its open design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing requires lubrication for optimal performance and works in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or industrial machinery where radial loads are common.
Compliant with RoHS standards, it’s a dependable choice for various mechanical setups. The closed-end design helps keep contaminants out, extending its service life.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCH1816
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.5"
  • Outer Dia Tolerance Not Rated
  • Width 1"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 8093 lbf
  • Static Radial Load 12364 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8700 rpm
  • Weight 63 g
Drawn Cup Needle Roller Bearings BCH1816 dimension drawing
Download DWG Download PDF

Features

Why Choose BCH1816 Bearing for Precision Tasks?
BCH1816 Bearing features a drawn cup design with steel rollers, offering high radial load capacity up to 8093 lbf.
Its press-fit shaft mount ensures secure installation, reducing the risk of slippage during operation.
The closed-end series construction provides added protection against contaminants, enhancing durability.
With a maximum speed of 8700 rpm, it delivers reliable performance in demanding radial load applications.

Application

Industrial Uses of BCH1816 Bearing
BCH1816 Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, BCH1816 Bearing fits well in transmission systems and steering mechanisms, providing reliable performance under heavy loads. Its press-fit mounting simplifies installation in vehicle assemblies.
For automation equipment, BCH1816 Bearing’s needle roller design offers smooth operation in robotic arms and conveyor systems. The open seal type allows for easy lubrication, extending its service life.
Where Is BCH1816 Bearing Used?
You’ll often find BCH1816 Bearing in agricultural machinery, where its ability to handle high radial loads is essential for equipment like harvesters. The inch sizing makes it compatible with many North American machines.
In household appliances, BCH1816 Bearing works well in washing machines and power tools, thanks to its balanced performance and ease of maintenance. The steel cage adds extra resilience to daily wear and tear.
Built for Heavy-Duty Use: BCH1816 Bearing
BCH1816 Bearing excels in construction equipment, such as compactors and excavators, where its robust design withstands constant vibration. The high dynamic load rating ensures long-term reliability.
For small engines, BCH1816 Bearing provides efficient power transmission in generators and pumps. Its temperature range suits both indoor and outdoor applications.
Automotive vs Industrial: Applications of BCH1816 Bearing
In automotive settings, BCH1816 Bearing is a go-to for clutch assemblies, offering precise radial support. Industrial users appreciate its performance in hydraulic pumps and compressors.
The bearing’s versatility also shines in packaging machinery, where speed and load capacity are key. Its steel components resist corrosion in humid environments.
