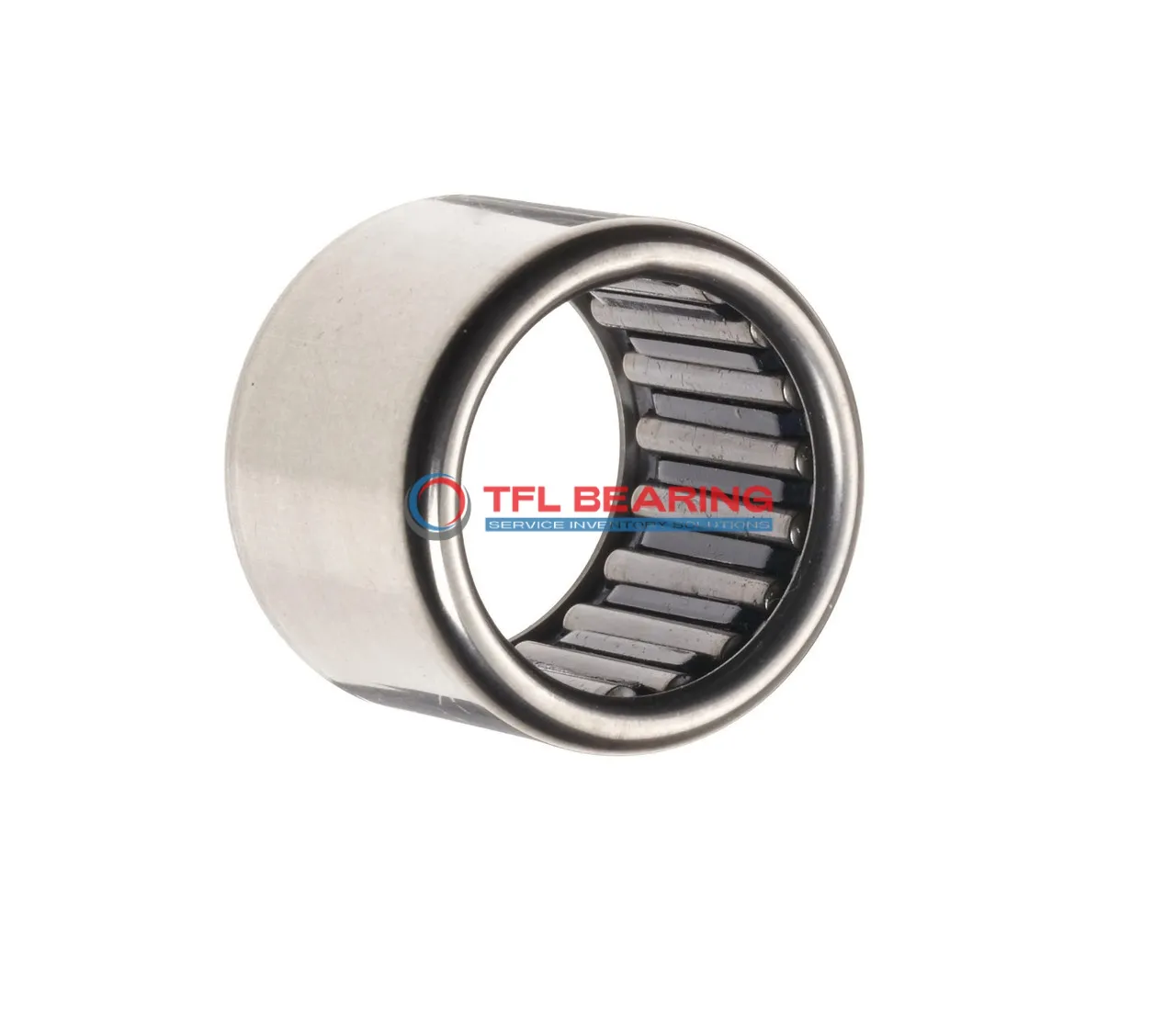

Drawn Cup Needle Roller Bearings BCE910

Drawn Cup Needle Roller Bearings BCE910

The BCE910 is a drawn cup needle roller bearing with a 0.5625″ bore and 0.75″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2113 lbf and can spin at speeds up to 17600 RPM.
Its open, single-row design with a press-fit mount ensures easy installation and maintenance. The steel cage and rollers provide durability under demanding conditions.
This bearing works well in temperatures ranging from -20°C to 110°C and requires regular lubrication for optimal performance. It’s interchangeable with INA bearings, making it a practical choice for replacements.
Ideal for applications like automotive components or small machinery where space is limited but high load capacity is needed. Compliant with RoHS standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE910
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.5625"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.75"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2113 lbf
  • Static Radial Load 3147 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 17600 rpm
  • Weight 10 g
Drawn Cup Needle Roller Bearings BCE910 dimension drawing
Download DWG Download PDF

Features

How Does BCE910 Bearing Handle High-Speed Applications?
BCE910 Bearing is crafted with steel rings and needles, offering robust radial load support up to 2113 lbf.
Its press-fit shaft mount ensures secure installation, reducing slippage during high-speed operation.
The open design allows for easy lubrication, maintaining smooth performance even at 17,600 rpm.
With a temperature range of -20 to 110°C, it adapts well to various working conditions.

Application

Common Applications of BCE910 Bearing
BCE910 Bearing is widely used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor rollers and printing presses. Its press-fit design ensures a secure mounting, reducing the risk of slippage during operation.
In automotive systems, BCE910 Bearing fits well in gearboxes and steering mechanisms, providing smooth rotation under heavy loads. The steel construction offers durability, making it suitable for long-term use in vehicles.
For automation equipment, BCE910 Bearing’s needle roller design allows precise movement in robotic arms and assembly lines. Its open seal type simplifies lubrication, ensuring consistent performance in high-speed applications.
In household appliances, BCE910 Bearing can be found in electric tools and small motors, where its compact size and reliability are key. The inch measurements make it compatible with many North American products.
