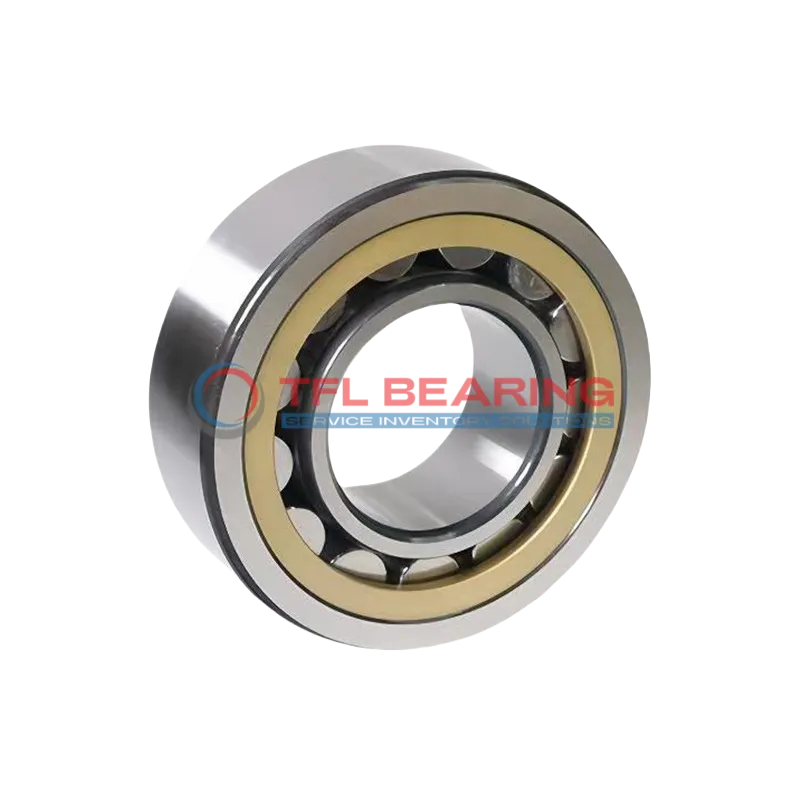

Single Row Cylindrical Roller Bearings With Inner Ring NU 324 ECML

Single Row Cylindrical Roller Bearings With Inner Ring NU 324 ECML

The NU 324 ECML is a single row cylindrical roller bearing with a 120mm bore and 260mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 137250 lbf and reaches speeds of 5000 RPM.

Its brass cage design ensures smooth operation, while the open structure allows easy lubrication with grease or oil. The bearing performs reliably in temperatures from -30°C to 110°C.

With a width of 55mm and chamfered edges, it fits snugly in tight spaces. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present. Compliant with RoHS and REACH standards for safe use. Weighing 14.8kg, it’s built for durability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NU 324 ECML
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 260 mm
  • Outer Dia Tolerance -0.035mm to 0
  • Width 55 mm
  • Width Tolerance -0.20mm to 0
  • Chamfer Dimension r1,2(min.) 3 mm
  • Chamfer Dimension r3,4(min.) 3 mm
  • Permissible Axial Displacement(max.) 3.7 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, inner or outer ring centred
  • Dynamic Radial Load 137250 lbf
  • Static Radial Load 139500 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 14.8 kg
  • Shoulder Dia Of Outer Ring 218.7 mm
  • Raceway Diameter Of Inner Ring 154 mm
Single Row Cylindrical Roller Bearings With Inner Ring NU 324 ECML dimension drawing
Download DWG Download PDF

Features

Performance Features of NU 324 ECML Bearing

NU 324 ECML Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 137,250 lbf, ensuring reliable performance in heavy-duty applications.

The brass cage design helps maintain roller alignment, reducing wear and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency for various industrial uses.

NU 324 ECML Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with either grease or oil, ensuring consistent performance.

Application

Industrial Uses of NU 324 ECML Bearing
NU 324 ECML Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at high speeds, making it suitable for demanding environments.

Where Is NU 324 ECML Bearing Used?
In automotive applications, NU 324 ECML Bearing supports components such as wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing and open design make it versatile for various vehicle models.

Perfect Fit for Automation: NU 324 ECML Bearing
NU 324 ECML Bearing works well in robotic arms and automated production lines, where precision and durability are key. The combined load capability allows it to perform reliably in dynamic, high-speed operations.

Medical vs Industrial: Where NU 324 ECML Bearing Excels
While NU 324 ECML Bearing is ideal for industrial equipment like pumps and compressors, its precision also suits medical imaging devices. The temperature range and material quality ensure consistent performance in both fields.

Essential Roles of NU 324 ECML Bearing
NU 324 ECML Bearing is a go-to choice for wind turbines and mining equipment, where its high dynamic radial load capacity shines. The grease or oil lubrication options add flexibility for different operating conditions.
