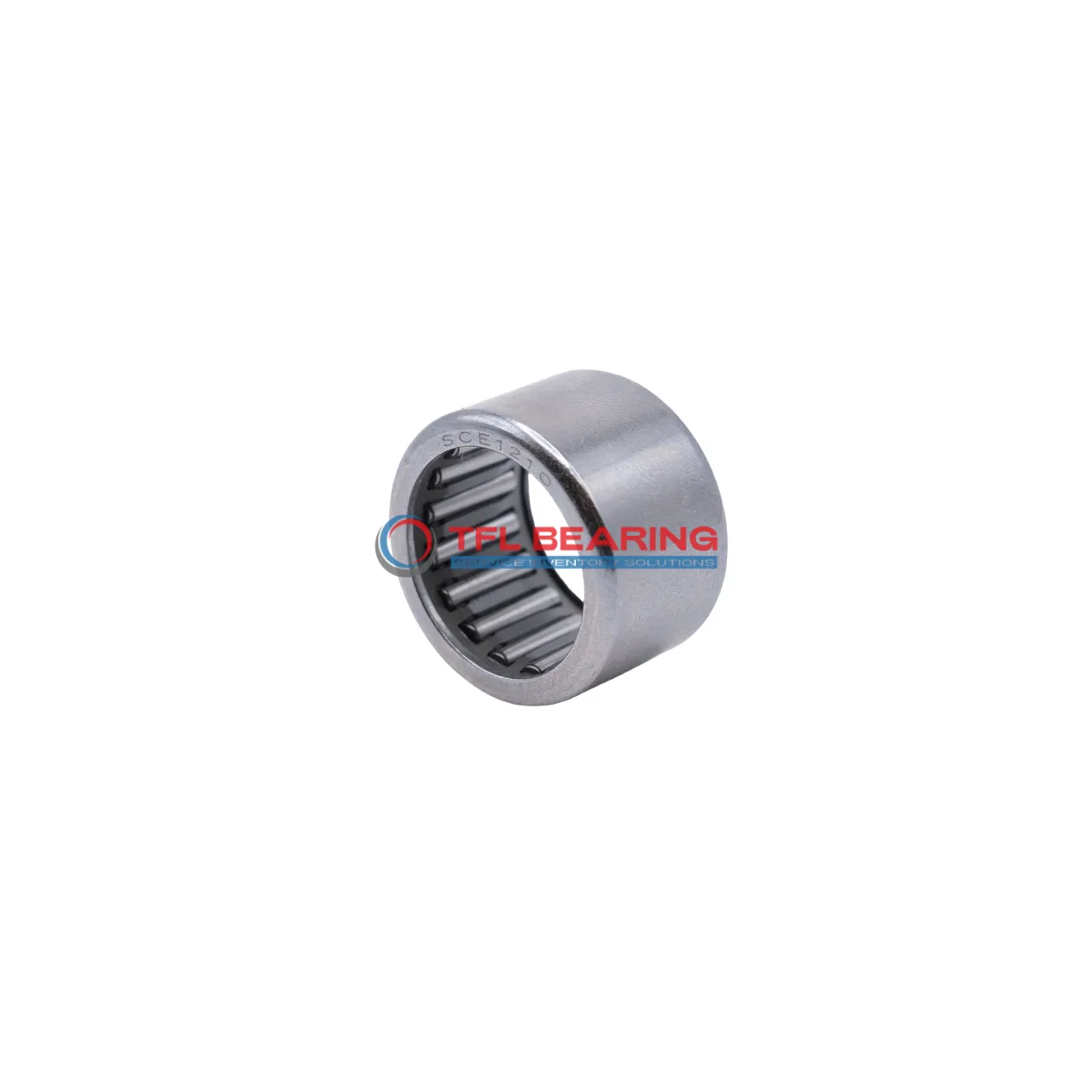

Drawn Cup Needle Roller Bearings BCE55

Drawn Cup Needle Roller Bearings BCE55

The BCE55 is a drawn cup needle roller bearing with a 0.3125″ bore and 0.5″ outer diameter, crafted from sturdy steel. It handles radial loads up to 652 lbf and can spin at speeds up to 29,000 RPM.
Its open, single-row design with a press-fit mount ensures easy installation and reliable performance. The steel cage and rollers provide durability for demanding applications.
This bearing requires regular lubrication to maintain smooth operation. It works well in temperatures ranging from -20°C to 110°C.
Ideal for machinery with high-speed radial loads, such as small engines or gear systems. Compliant with RoHS standards for safe and eco-friendly use.
The closed-end series offers added protection against contaminants. Its compact size (0.3125″ width) makes it suitable for tight spaces.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE55
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.3125"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 0.5"
  • Outer Dia Tolerance Not Rated
  • Width 0.3125"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 652 lbf
  • Static Radial Load 585 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 29000 rpm
  • Weight 4 g
Drawn Cup Needle Roller Bearings BCE55 dimension drawing
Download DWG Download PDF

Features

Performance Features of BCE55 Bearing
BCE55 Bearing is crafted with steel rings and needles, offering robust radial load support.
Its dynamic radial load capacity of 652 lbf ensures steady performance in high-speed applications.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 29,000 rpm, it delivers reliable operation in demanding conditions.
BCE55 Bearing requires lubrication, ensuring smooth movement and reduced wear.
Its temperature range of -20 to 110°C makes it suitable for varied environments.

Application

Industrial Uses of BCE55 Bearing
BCE55 Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed, like conveyor systems and gearboxes. Its steel construction ensures durability in demanding environments.
Where Is BCE55 Bearing Used?
You’ll often find BCE55 Bearing in automotive applications, such as transmission systems and steering mechanisms, where its press-fit design provides a secure hold. The high-speed capability makes it suitable for performance vehicles.
Perfect Fit for Automation: BCE55 Bearing
In robotics and automation, BCE55 Bearing works well in robotic arms and precision equipment due to its compact size and reliable performance. The open design allows for easy lubrication, extending its service life.
Medical vs Industrial: Where BCE55 Bearing Excels
While BCE55 Bearing is versatile for industrial tools, it’s also used in medical devices like small pumps, where its low-profile design and smooth operation are beneficial. The steel materials ensure hygiene and longevity.
Consumer Electronics and BCE55 Bearing
For home appliances like power tools or printers, BCE55 Bearing offers quiet and efficient operation. Its inch sizing makes it compatible with many North American products, ensuring easy replacement.
