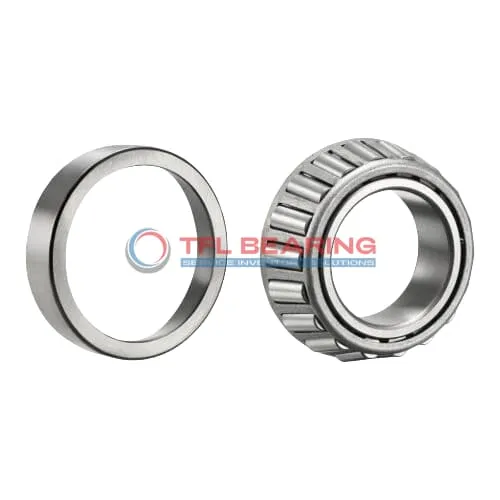

TS (Single Row Tapered Roller Bearings) (Imperial) 53176-53398

TS (Single Row Tapered Roller Bearings) (Imperial) 53176-53398

The 53176-53398 is a single-row tapered roller bearing with a 1.75″ bore and 4″ outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 26700 lbf radially and 8760 lbf thrust, making it versatile for various applications.

Its open design allows for easy lubrication, while the steel cage ensures durability. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for heavy-duty machinery or automotive systems where combined loads are common.

Weighing 2.4 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance ensures consistent performance, with options for C3, C4, or C5 clearances if needed. Its tapered roller design provides efficient load distribution.

Suitable for industrial equipment or vehicle components requiring reliable load handling. The ABEC-1 rating ensures decent precision for most general applications.

Maintenance is straightforward thanks to its open structure. The chrome steel rollers and rings offer long-lasting wear resistance.

Perfect for scenarios demanding both radial and thrust load support. Its imperial sizing makes it compatible with older machinery specifications.

The bearing’s effective center location aids in proper alignment during installation. The steel cage keeps rollers securely in place under stress.

A practical choice for repair jobs or new builds in harsh environments. Its temperature tolerance suits most industrial operating conditions.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 53176-53398
  • Brand TFL
  • Interchangeable Timken
  • Size 1.75" x 4" x 1.2188"
  • Bore Dia 1.75"
  • Bore Dia Tolerance +0.005" to 0
  • Outer Dia 4"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.1142"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.2188"
  • Width Tolerance +0.008" to 0
  • Cone Backface ToClear Radius 0.050"
  • Cup Backface ToClear Radius 0.03"
  • Cone Frontface Backing Diameter 2.07"
  • Cone Backface Backing Diameter 2.32"
  • Cup Frontface Backing Diameter 3.66"
  • Cup Backface Backing Diameter 3.31"
  • Cage Cone Frontface Clearance 0.12"
  • Cage Cone Backface Clearance 0.19"
  • Effective Center Location -0.01"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 53176
  • Cup Part Number 53398
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 53000
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 26700 lbf
  • Static Radial Load 23400 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 6920 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 8760 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.4 lb

Features

What Makes 53176-53398 Bearing Suitable for Heavy-Duty Applications?

53176-53398 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 26,700 lbf, making it ideal for heavy-duty industrial use.

The tapered roller design ensures even load distribution, reducing stress on individual components.
This construction enhances durability and extends the bearing’s service life in demanding conditions.

53176-53398 Bearing operates efficiently within a temperature range of -30° to 110°C.
Its standard radial clearance options provide flexibility for various application requirements.

With a weight of 2.4 lb, it balances strength and practicality for industrial machinery.
The open design allows for easy lubrication, ensuring smooth operation over time.

Application

Key Fields for 53176-53398 Bearing
53176-53398 Bearing is commonly used in industrial gearboxes, where its tapered roller design efficiently handles combined radial and thrust loads. The chrome steel construction ensures durability in demanding environments like mining and construction equipment.

In automotive applications, 53176-53398 Bearing supports heavy-duty axles and wheel hubs, particularly in trucks and off-road vehicles. Its imperial sizing makes it a straightforward replacement for Timken equivalents in North American markets.

For agricultural machinery, 53176-53398 Bearing’s robust design withstands the uneven loads encountered in tractors and harvesters. The steel cage provides added strength, making it suitable for high-vibration scenarios.

In material handling systems, 53176-53398 Bearing ensures smooth operation in conveyor pulleys and lifting equipment. Its standard radial clearance offers reliable performance without frequent adjustments.
