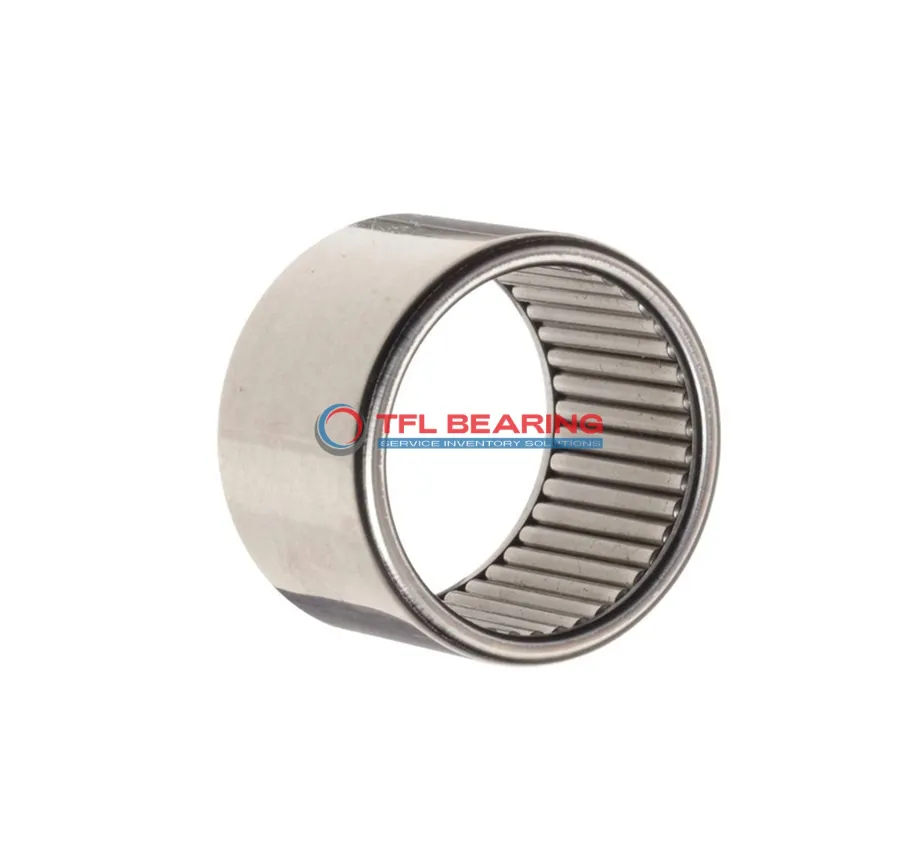

Drawn Cup Needle Roller Bearings BCE2420

Drawn Cup Needle Roller Bearings BCE2420

The BCE2420 is a drawn cup needle roller bearing with a 1.5″ bore and 1.875″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 10678 lbf and operates smoothly at speeds up to 6700 RPM.
Its open design and press-fit mounting make installation straightforward, while the steel cage ensures durability. The bearing requires lubrication for optimal performance and works in temperatures from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or industrial machinery where radial loads are common.
Compliant with RoHS standards, it’s a safe and dependable choice for various mechanical setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE2420
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.5"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.875"
  • Outer Dia Tolerance Not Rated
  • Width 1.25"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 10678 lbf
  • Static Radial Load 19334 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 6700 rpm
  • Weight 105 g
Drawn Cup Needle Roller Bearings BCE2420 dimension drawing
Download DWG Download PDF

Features

Performance Features of BCE2420 Bearing
BCE2420 Bearing is built with steel rings and needles, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 10678 lbf, making it suitable for demanding applications.
The press-fit shaft mount design ensures secure installation, reducing the risk of slippage.
With a maximum speed of 6700 rpm, it delivers reliable performance in various conditions.
BCE2420 Bearing operates efficiently within a temperature range of -20 to 110°C.
Regular lubrication helps maintain smooth operation and extends its service life.

Application

Common Applications of BCE2420 Bearing
BCE2420 Bearing is widely used in industrial equipment like conveyor belts and packaging machines, where its compact design handles high radial loads efficiently. The steel construction ensures durability even in demanding environments.
In automotive applications, BCE2420 Bearing fits well in gearboxes and transmission systems, providing smooth operation under heavy loads. Its press-fit mounting makes installation straightforward for mechanics.
For automation projects, BCE2420 Bearing works reliably in robotic arms and assembly line equipment. The open seal design allows for easy lubrication, extending its service life in continuous-use scenarios.
Around the home, BCE2420 Bearing can be found in power tools like drills and sanders, where its high-speed capability ensures consistent performance. The inch sizing makes it compatible with many North American-made devices.
