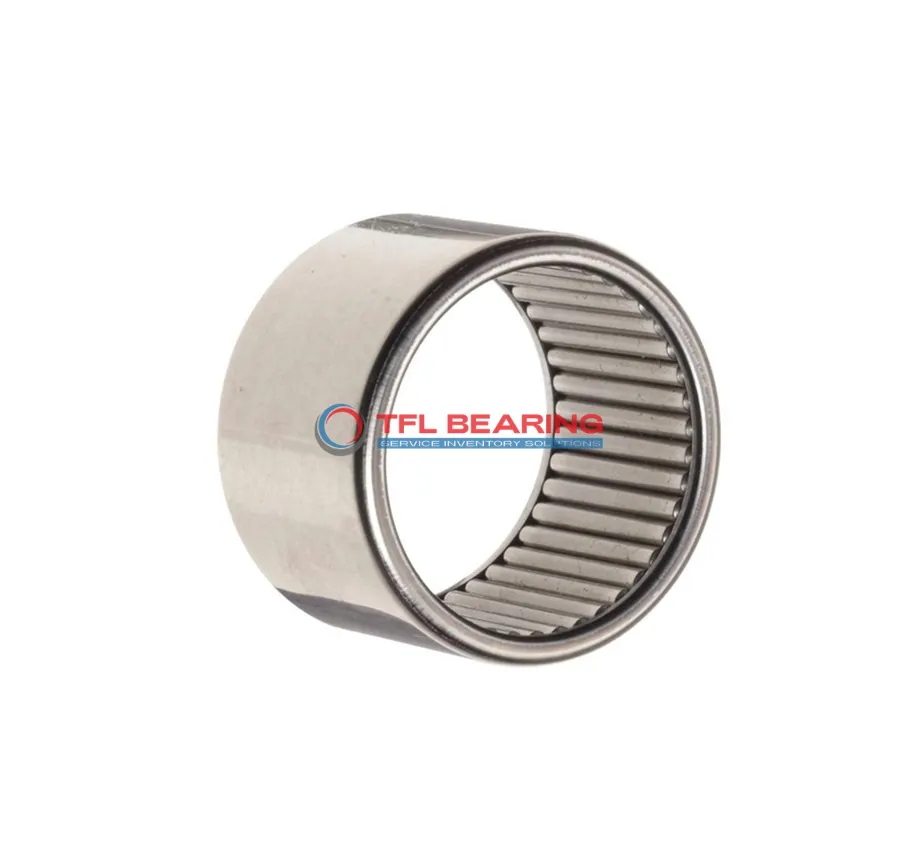

Drawn Cup Needle Roller Bearings BCE228

Drawn Cup Needle Roller Bearings BCE228

The BCE228 is a drawn cup needle roller bearing with a 1.375″ bore and 1.625″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 3057 lbf and operates smoothly at speeds up to 8000 RPM.
Its open, single-row design with a press-fit shaft mount ensures easy installation and maintenance. The steel cage and rollers provide durability, making it suitable for high-load applications.
This bearing works well in temperatures ranging from -20°C to 110°C and requires regular lubrication for optimal performance. It’s interchangeable with INA bearings, offering a practical replacement option.
Ideal for use in automotive or industrial machinery where compact size and high load capacity are needed. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE228
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 1.375"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.625"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 3057 lbf
  • Static Radial Load 5328 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 8000 rpm
  • Weight 25 g
Drawn Cup Needle Roller Bearings BCE228 dimension drawing
Download DWG Download PDF

Features

What Makes BCE228 Bearing Suitable for High-Temperature Applications?
BCE228 Bearing is constructed with steel rings and rollers, offering robust performance in temperatures ranging from -20 to 110°C.
Its dynamic radial load capacity of 3057 lbf ensures reliable operation under demanding conditions.
The press-fit shaft mount design simplifies installation, saving time and effort.
With a maximum speed of 8000 rpm, BCE228 Bearing balances efficiency and durability.
The open seal type allows for easy lubrication, maintaining smooth operation.
Its single-row construction provides stability, making it ideal for radial load applications.

Application

Common Applications of BCE228 Bearing
BCE228 Bearing is widely used in industrial equipment, especially in compact machinery where space is limited but high radial load capacity is needed. Its press-fit design ensures a secure mounting, ideal for conveyor systems and gearboxes.
In automotive applications, BCE228 Bearing fits well in transmission systems and steering mechanisms, thanks to its durable steel construction. The open seal allows for easy lubrication, extending its service life in demanding conditions.
For automation and robotics, BCE228 Bearing offers smooth operation in robotic arms and precision machinery. Its needle roller design provides excellent load distribution, making it a reliable choice for high-speed movements.
In consumer electronics, BCE228 Bearing can be found in printers and small appliances where quiet and efficient performance is essential. The inch sizing makes it compatible with various North American and UK-based devices.
