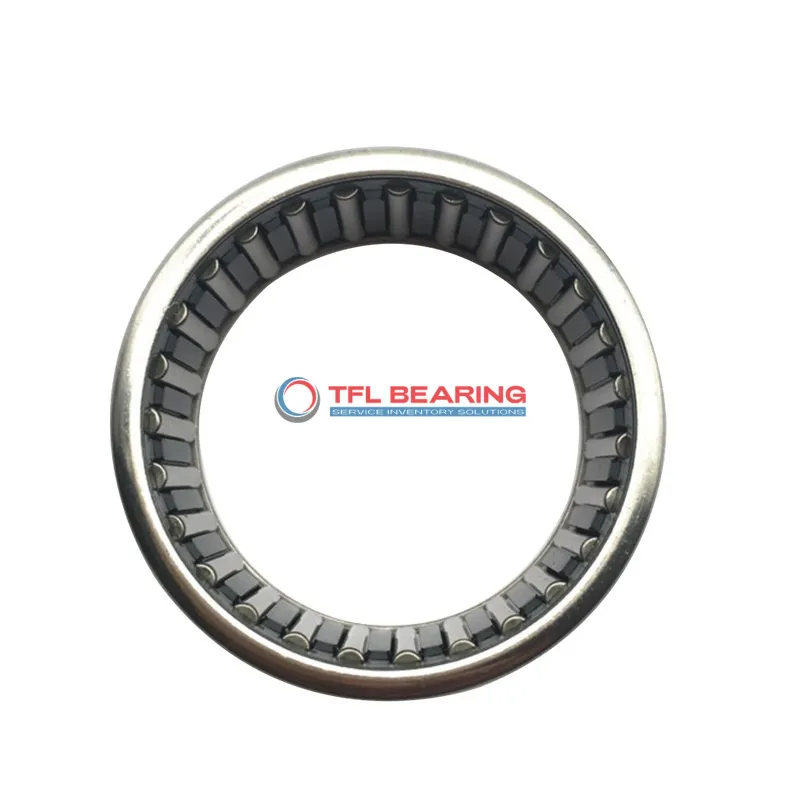

Drawn Cup Needle Roller Bearings BCE148

Drawn Cup Needle Roller Bearings BCE148

The BCE148 is a drawn cup needle roller bearing with a 0.875″ bore and 1.125″ outer diameter, crafted from sturdy steel for reliable performance. It handles radial loads up to 2518 lbf and spins smoothly at speeds up to 11400 RPM.
Its open design and press-fit mounting make it easy to install, while the steel cage ensures durability under stress. The bearing operates efficiently in temperatures ranging from -20°C to 110°C.
This model is interchangeable with INA bearings, offering a practical replacement option. Ideal for applications like automotive components or machinery where space is limited but high load capacity is needed.
Regular lubrication is recommended to maintain its performance. Compliant with RoHS standards, it’s a safe and dependable choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE148
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.875"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1.125"
  • Outer Dia Tolerance Not Rated
  • Width 0.5"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2518 lbf
  • Static Radial Load 3552 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 11400 rpm
  • Weight 19 g
Drawn Cup Needle Roller Bearings BCE148 dimension drawing
Download DWG Download PDF

Features

How Does BCE148 Bearing Handle Radial Loads?
BCE148 Bearing is built with steel rings and rollers, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 2518 lbf, ensuring reliable performance in various applications.
The closed-end design keeps contaminants out, enhancing durability and reducing maintenance needs.
With a maximum speed of 11,400 rpm, it delivers both efficiency and longevity.

Application

Industrial Uses of BCE148 Bearing
BCE148 Bearing is commonly used in industrial machinery, especially in compact spaces where high radial load capacity is needed. Its steel construction ensures durability in demanding environments like conveyor systems.

Where Is BCE148 Bearing Used?
In automotive applications, BCE148 Bearing fits well in gearboxes and transmission systems, providing reliable performance under radial loads. The press-fit design makes installation straightforward for mechanics.

Built for Heavy-Duty Use: BCE148 Bearing
For automation and robotics, BCE148 Bearing offers smooth operation in mechanical arms and precision equipment. Its open seal type allows for easy lubrication, extending service life.

Light-Duty vs Heavy-Duty: Best Uses for BCE148 Bearing
In consumer electronics like printers, BCE148 Bearing ensures quiet and efficient operation. Its inch sizing makes it compatible with a variety of North American and European devices.
