Drawn Cup Needle Roller Bearings BCE1210

Drawn Cup Needle Roller Bearings BCE1210

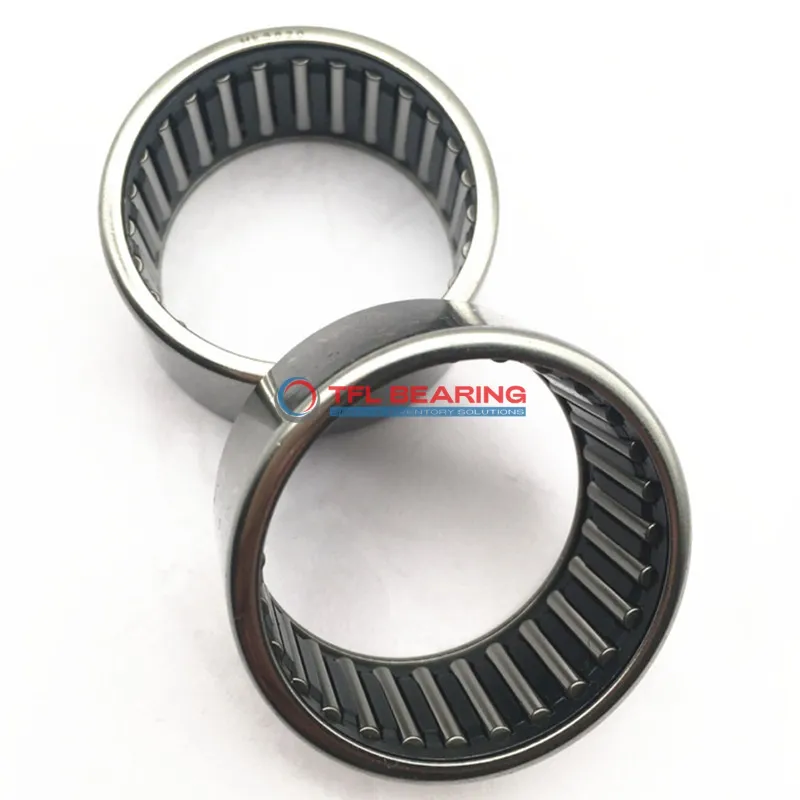

The BCE1210 is a compact drawn cup needle roller bearing with a 0.75″ bore and 1″ outer diameter, crafted from sturdy steel for reliable performance. It supports radial loads up to 2878 lbf and operates smoothly at speeds up to 13100 RPM.
Its open, single-row design with a press-fit shaft mount ensures easy installation and maintenance. The steel cage and rollers provide durability, making it suitable for high-load applications.
This bearing works well in temperatures ranging from -20°C to 110°C and requires regular lubrication for optimal performance. It’s interchangeable with INA bearings, offering a practical replacement option.
Ideal for use in automotive components or industrial machinery where space is limited but high radial load capacity is needed. Compliant with RoHS standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number BCE1210
  • Brand TFL
  • Interchangeable INA
  • Bore Dia 0.75"
  • Bore Dia Tolerance Refer to note on the right drawing
  • Outer Dia 1"
  • Outer Dia Tolerance Not Rated
  • Width 0.625"
  • Width Tolerance -0.01" to 0"
  • System of Measurement Inch
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Series Closed End
  • Ring Material Steel
  • Ball Material Steel
  • Cage Material Steel
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 3934 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 13100 rpm
  • Weight 18 g
Drawn Cup Needle Roller Bearings BCE1210 dimension drawing
Download DWG Download PDF

Features

How Does BCE1210 Bearing Handle High-Speed Applications?
BCE1210 Bearing is crafted with steel rings and needles, offering excellent radial load capacity up to 2878 lbf.
Its press-fit design ensures secure mounting, making it ideal for high-speed operations up to 13,100 rpm.
The open construction allows for easy lubrication, maintaining smooth performance over time.
With a temperature range of -20 to 110°C, it adapts well to various working conditions.

Application

Common Applications of BCE1210 Bearing
BCE1210 Bearing is widely used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for space-constrained applications. The press-fit mounting ensures a secure installation in heavy machinery.
In automotive systems, BCE1210 Bearing is often found in transmission assemblies, providing smooth operation under high-speed conditions. Its steel construction offers durability, making it suitable for long-term use in vehicles.
For automation equipment, BCE1210 Bearing supports precise movements in robotic arms and conveyor systems. The open seal design allows for easy lubrication, maintaining performance in continuous operation.
In household appliances like washing machines, BCE1210 Bearing ensures quiet and efficient operation. Its inch sizing makes it compatible with a variety of consumer products.
