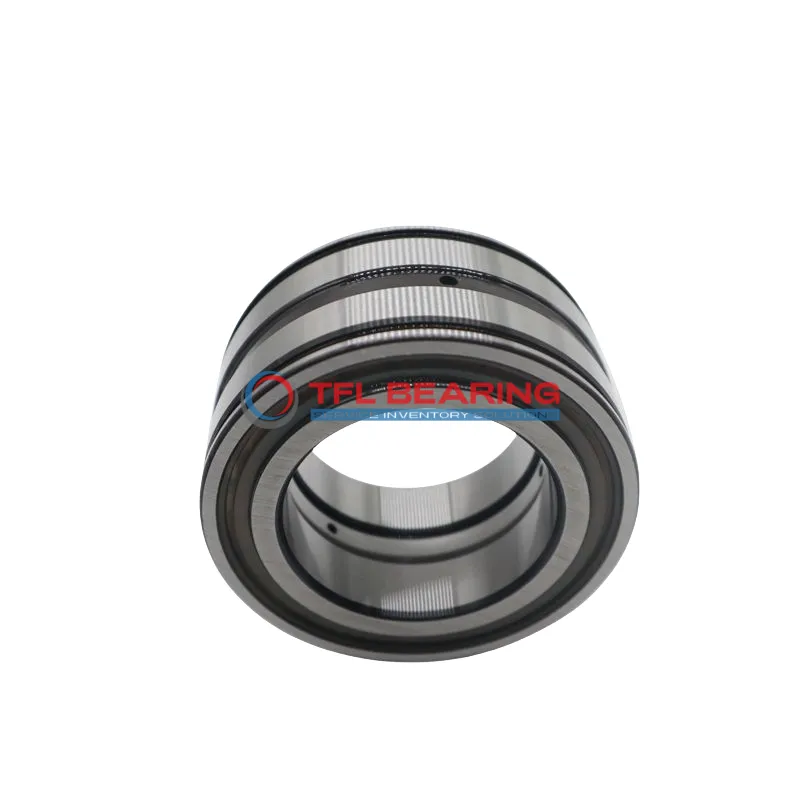

Double Row Full Complement Cylindrical Roller Bearings NNCL 4976 CV

Double Row Full Complement Cylindrical Roller Bearings NNCL 4976 CV

The NNCL 4976 CV is a double row full complement cylindrical roller bearing, measuring 380mm by 520mm by 140mm. Made from durable 52100 chrome steel, it handles combined loads with a dynamic radial load capacity of 535500 lbf.

Its full complement design (no cage) allows for higher load capacity and smooth operation at speeds up to 1000 RPM. The open seal type makes lubrication with grease or oil straightforward.

This bearing can withstand axial displacement up to 7mm and operates in temperatures from -30°C to 110°C. It’s interchangeable with SKF bearings, offering a reliable option for replacements.

Ideal for heavy-duty applications like industrial gearboxes or large machinery where high radial loads are common. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number NNCL 4976 CV
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 520 mm
  • Outer Dia Tolerance -0.05mm to 0
  • Width 140 mm
  • Width Tolerance -0.40mm to 0
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row Full Complement
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Chamfer Dimension r1,2(min.) 4 mm
  • Permissible Axial Displacement(max.) 7 mm
  • Ring Material 52100 Chrome Steel
  • Roller Material 52100 Chrome Steel
  • Cage Material Full complement (no cage)
  • Dynamic Radial Load 535500 lbf
  • Static Radial Load 1282500 lbf
  • Max Speed 1000 rpm
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
Double Row Full Complement Cylindrical Roller Bearings NNCL 4976 CV dimension drawing
Download DWG Download PDF

Features

Performance Features of NNCL 4976 CV Bearing

NNCL 4976 CV Bearing is built with double row full complement cylindrical rollers, offering high load capacity and stability.
Its 52100 chrome steel construction ensures durability and resistance to wear in demanding conditions.

The bearing handles combined loads efficiently, with a dynamic radial load capacity of 535,500 lbf.
Its open design allows for easy lubrication with grease or oil, ensuring smooth operation.

NNCL 4976 CV Bearing operates within a temperature range of -30° to 110°C, suitable for various industrial applications.
With a maximum speed of 1000 rpm, it balances performance and reliability.

The full complement roller design eliminates the need for a cage, maximizing load distribution.
This makes NNCL 4976 CV Bearing ideal for heavy-duty machinery and equipment.

Application

Industrial Uses of NNCL 4976 CV Bearing
NNCL 4976 CV Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its double-row design handles high radial loads efficiently. The full complement of rollers ensures maximum load capacity without a cage, making it ideal for slow-speed, high-load applications.

In wind turbines, NNCL 4976 CV Bearing supports the main shaft, providing stability under varying wind conditions. Its chrome steel construction and grease lubrication make it reliable in harsh outdoor environments.

For mining equipment, NNCL 4976 CV Bearing excels in conveyor systems and crushers, where its robust design withstands heavy impacts. The open seal type allows for easy maintenance, reducing downtime in demanding operations.

What Makes NNCL 4976 CV Bearing a Preferred Choice?
NNCL 4976 CV Bearing is often chosen for paper manufacturing machinery due to its ability to handle combined loads. The metric sizing ensures compatibility with European and Asian industrial standards.

In steel production, NNCL 4976 CV Bearing is used in rolling stands, where its high static radial load capacity ensures longevity. The absence of a cage allows for more rollers, enhancing load distribution.

Built for Heavy-Duty Use: NNCL 4976 CV Bearing
NNCL 4976 CV Bearing is a go-to solution for large pumps in water treatment plants, where its durability and low maintenance are valued. The wide temperature range suits both indoor and outdoor installations.

For construction equipment like cranes, NNCL 4976 CV Bearing provides reliable performance under heavy loads. Its open design simplifies lubrication, ensuring smooth operation in dusty environments.
