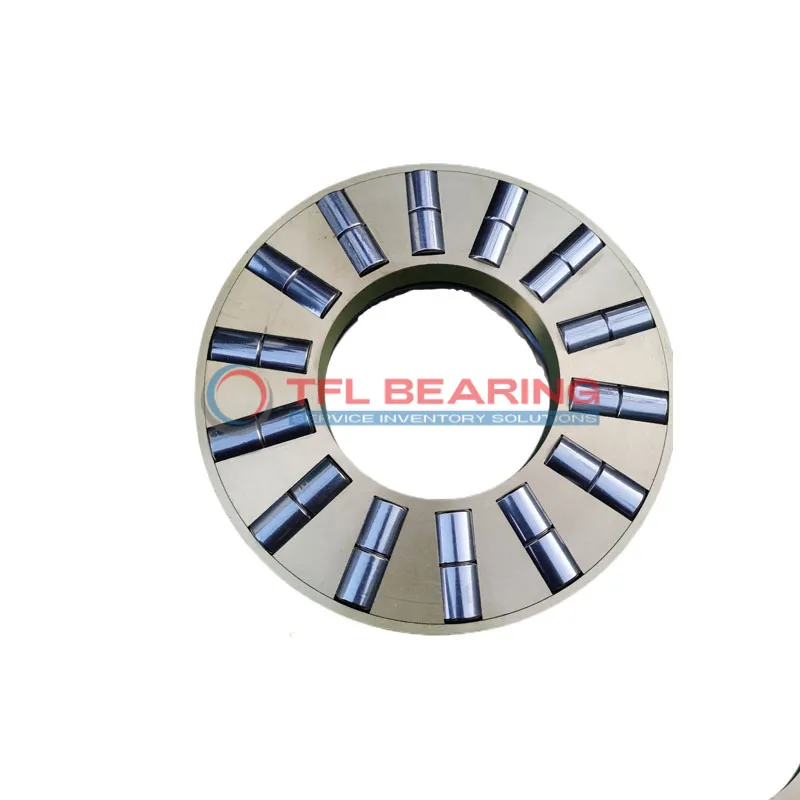

Double Row Cylindrical Roller Thrust Bearings assembly K 89432 M

Double Row Cylindrical Roller Thrust Bearings assembly K 89432 M

The K 89432 M is a double-row cylindrical roller thrust bearing with a 160mm bore and 320mm outer diameter, built to handle heavy thrust loads. It’s made from tough chrome steel and features a machined brass cage for durability.

This bearing can manage dynamic radial loads up to 321750 lbf and operates smoothly at speeds up to 1000 RPM. Its two-row design provides extra stability, making it suitable for high-load applications.

The brass cage reduces friction and wear, while the temperature range of -30°C to 110°C ensures reliable performance in various conditions. It’s interchangeable with SKF bearings, offering a practical replacement option.

Weighing 12.4kg, this robust bearing is ideal for industrial machinery like presses or heavy-duty gearboxes where strong thrust support is needed. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 89432 M
  • Size 160 mm x 320 mm x 32 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 160 mm
  • Bore Dia Tolerance +0.085mm to +0.335mm
  • Outer Dia 320 mm
  • Outer Dia Tolerance -1.20mm to -2.09mm
  • Diameter Roller 32 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 179 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 313 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 321750 lbf
  • Static Radial Load 1440000 lbf
  • Max Speed 1000 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 12.4 kg
  • Shaft Washer WS 89432
  • Housing Washer GS 89432

Features

Why Choose K 89432 M Bearing for Precision Tasks?

K 89432 M Bearing features a double-row cylindrical roller design, ideal for handling high thrust loads with precision.
Its chrome steel rollers and machined brass cage ensure smooth operation and reduced friction.

With a dynamic radial load capacity of 321,750 lbf, K 89432 M Bearing excels in demanding industrial applications.
The bearing maintains reliable performance even at speeds up to 1,000 rpm.

K 89432 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its robust construction and high load capacity make it suitable for heavy-duty machinery.

The bearing’s precise tolerances and durable materials ensure long service life with minimal maintenance.
K 89432 M Bearing is interchangeable with SKF models, offering flexibility in replacements.

Application

Industrial Uses of K 89432 M Bearing
K 89432 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its double-row design handles significant thrust loads. The machined brass cage ensures smooth operation even under high stress.

Where Is K 89432 M Bearing Used?
You’ll find K 89432 M Bearing in wind turbines and mining equipment, where its robust construction withstands harsh conditions. Its metric sizing makes it a reliable choice for global industrial applications.

Built for Heavy-Duty Use: K 89432 M Bearing
K 89432 M Bearing excels in steel mills and construction equipment, thanks to its chrome steel rollers and high load capacity. The brass cage adds durability, making it ideal for continuous operation.

Automotive vs Aerospace: Applications of K 89432 M Bearing
In automotive systems, K 89432 M Bearing supports large transmissions, while in aerospace, it’s used in landing gear mechanisms. Its precision engineering ensures reliability in both fields.

Perfect Fit for Automation: K 89432 M Bearing
K 89432 M Bearing is a go-to for automated production lines, where its high-speed capability and low maintenance reduce downtime. The open design allows for easy lubrication in busy environments.
