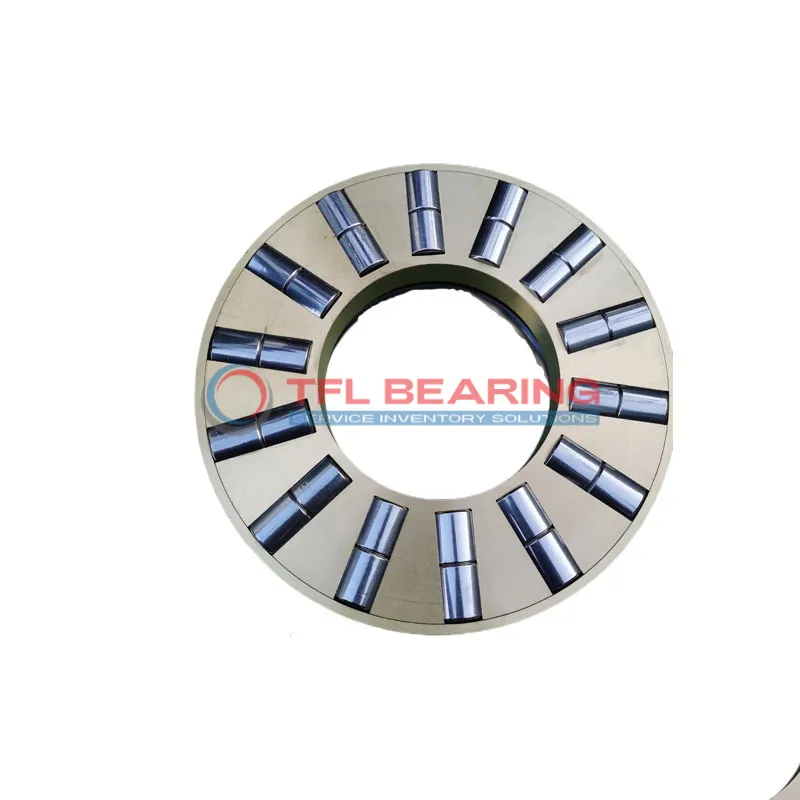

Double Row Cylindrical Roller Thrust Bearings assembly K 89326 M

Double Row Cylindrical Roller Thrust Bearings assembly K 89326 M

The K 89326 M is a double-row cylindrical roller thrust bearing, measuring 130mm by 225mm by 18mm, crafted from robust chrome steel for durability. It handles heavy thrust loads up to 126000 lbf and operates smoothly at speeds up to 1400 RPM.

Its machined brass cage ensures stability and reduces friction, while the two-row design enhances load distribution. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where high thrust loads are common.

Weighing 3.09kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses. The included shaft washer (WS 89326) and housing washer (GS 89326) simplify installation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 89326 M
  • Size 130 mm x 225 mm x 18 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 130 mm
  • Bore Dia Tolerance +0.085mm to +0.335mm
  • Outer Dia 225 mm
  • Outer Dia Tolerance -0.74mm to -1.46mm
  • Diameter Roller 18 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 141 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 219 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 126000 lbf
  • Static Radial Load 596250 lbf
  • Max Speed 1400 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 3.09 kg
  • Shaft Washer WS 89326
  • Housing Washer GS 89326

Features

Performance Features of K 89326 M Bearing

K 89326 M Bearing is built with chrome steel rollers, offering high resistance to thrust loads.
Its dynamic radial load capacity reaches 126000 lbf, making it suitable for heavy-duty applications.

The machined brass cage ensures smooth operation by keeping the rollers aligned.
This design reduces friction and extends the bearing’s service life.

K 89326 M Bearing operates efficiently within a temperature range of -30° to 110 °C.
It can handle speeds up to 1400 rpm, balancing performance and durability.

With its double-row cylindrical design, K 89326 M Bearing provides excellent load distribution.
This feature enhances stability and reduces wear over time.

Application

Industrial Uses of K 89326 M Bearing
K 89326 M Bearing is commonly used in heavy machinery, such as large presses and rolling mills, where its double-row design handles significant thrust loads. The machined brass cage ensures smooth operation even under high stress.

What Makes K 89326 M Bearing a Preferred Choice?
In wind turbines, K 89326 M Bearing supports the rotor shaft, providing stability and durability in harsh weather conditions. Its chrome steel rollers and brass cage make it reliable for long-term use.

Built for Heavy-Duty Use: K 89326 M Bearing
K 89326 M Bearing excels in mining equipment, where its robust construction withstands extreme loads and vibrations. The metric sizing ensures compatibility with international machinery standards.

Automotive vs Aerospace: Applications of K 89326 M Bearing
In automotive applications, K 89326 M Bearing is found in gearboxes, handling high thrust loads efficiently. For aerospace, it’s used in landing gear systems, where precision and reliability are critical.

Perfect Fit for Automation: K 89326 M Bearing
K 89326 M Bearing is ideal for robotic arms in automated production lines, offering smooth movement under heavy loads. Its brass cage reduces friction, enhancing performance in repetitive tasks.
