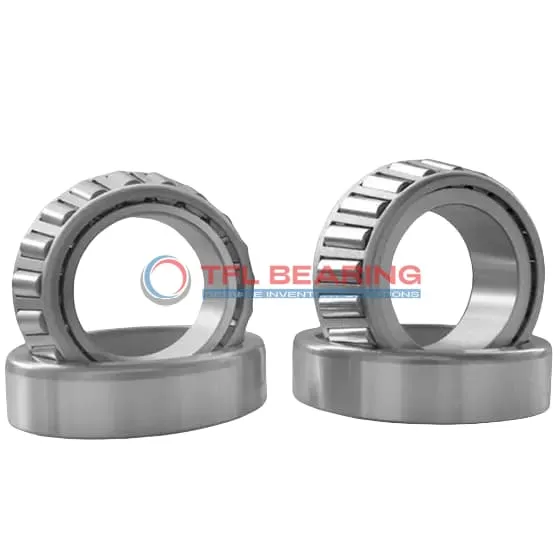

TS (Single Row Tapered Roller Bearings) (Imperial) 36690-36620

TS (Single Row Tapered Roller Bearings) (Imperial) 36690-36620

The 36690-36620 is a single-row tapered roller bearing with a 5.75″ bore and 7.625″ outer diameter, built from sturdy chrome steel. It handles combined loads up to 44200 lbf radially and 7220 lbf thrust, making it suitable for heavy-duty applications.

Its open design allows for easy lubrication, while the steel cage ensures durability under high stress. The bearing operates smoothly in temperatures ranging from -30°C to 110°C.

This model is interchangeable with Timken bearings, offering a reliable replacement option. Ideal for use in industrial machinery or automotive systems where combined loads are common.

Weighing 5 lb, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

The standard radial clearance and ABEC-1 rating ensure consistent performance. Its tapered roller design provides efficient load distribution, reducing wear over time.

Perfect for applications requiring long-lasting reliability, such as gearboxes or conveyor systems. The precise tolerances and durable materials make it a dependable choice for engineers and maintenance teams.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 36690-36620
  • Brand TFL
  • Interchangeable Timken
  • Size 5.75" x 7.625" x 1.125"
  • Bore Dia 5.75"
  • Bore Dia Tolerance +0.001" to 0
  • Outer Dia 7.625"
  • Outer Dia Tolerance +0.001" to 0
  • Cone Width 1.125"
  • Cone Width Tolerance +0.003" to -0.01
  • Cup Width 0.9063"
  • Cup Width Tolerance +0.002" to -0.01
  • Width 1.125"
  • Width Tolerance +0.014" to -0.01"
  • Cone Backface ToClear Radius 0.06"
  • Cup Backface ToClear Radius 0.06"
  • Cone Frontface Backing Diameter 6.89"
  • Cone Backface Backing Diameter 6.1"
  • Cup Frontface Backing Diameter 7.41"
  • Cup Backface Backing Diameter 7.17"
  • Cage Cone Frontface Clearance 0.13"
  • Cage Cone Backface Clearance 0.04"
  • Effective Center Location 0.19"
  • System of Measurement Inch
  • Type Bearing
  • Cone Part Number 36690
  • Cup Part Number 36620
  • Bearing Type Roller
  • Roller Bearing Type Tapered
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Cups Type Standard
  • Series 36600
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 44200 lbf
  • Static Radial Load 88600 lbf
  • Dynamic Radial Rating(90 Million Revolutions)(C90) 11400 lbf
  • Dynamic Thrust Rating(90 Million Revolutions)(Ca90) 7220 lbf
  • Lubrication Required
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • Radial Clearance Standard (Available in C3/C4/C5)
  • RoHS Compliant
  • REACH Compliant
  • Weight 5 lb

Features

Performance Features of 36690-36620 Bearing

36690-36620 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 44,200 lbf, ensuring reliable performance in heavy-duty applications.
The steel cage maintains roller alignment, reducing friction and extending operational life.
With a temperature range of -30° to 110°C, it performs well in various environmental conditions.

How Is 36690-36620 Bearing Engineered for Reliability?

36690-36620 Bearing features a tapered roller design, optimised for handling both radial and thrust loads.
The chrome steel construction enhances durability, even under high-stress conditions.
Its standard radial clearance allows for smooth operation, reducing wear over time.
With an ABEC-1 rating, it balances precision and cost-effectiveness for industrial use.

Built for Durability: 36690-36620 Bearing

36690-36620 Bearing’s single-row construction provides stability and strength in demanding environments.
The steel cage ensures proper roller spacing, minimising friction and heat generation.
Its static radial load capacity of 88,600 lbf makes it suitable for heavy machinery.
The open design simplifies lubrication, maintaining performance over extended periods.

Steel vs Ceramic Bearings: Strengths of 36690-36620 Bearing

36690-36620 Bearing uses chrome steel for both rollers and rings, offering excellent strength and wear resistance.
This material choice ensures reliable performance under high loads and varying temperatures.
The bearing’s tapered design efficiently distributes stress, enhancing longevity.
With a dynamic thrust rating of 7,220 lbf, it handles demanding applications with ease.

Application

Industrial Uses of 36690-36620 Bearing
The 36690-36620 Bearing is commonly used in heavy machinery like construction equipment and agricultural gear, where its tapered roller design handles combined loads efficiently. Its chrome steel construction ensures durability even in demanding environments.

Where Is 36690-36620 Bearing Used?
You’ll often find 36690-36620 Bearing in automotive applications, particularly in wheel hubs and differential systems, where its high radial and thrust load capacity keeps things running smoothly. The inch sizing makes it a natural fit for North American vehicles.

Built for Heavy-Duty Use: 36690-36620 Bearing
In industrial settings like conveyor systems, 36690-36620 Bearing’s open design allows for easy lubrication, extending its service life. The steel cage adds stability, making it reliable for continuous operation.

Automotive vs Aerospace: Applications of 36690-36620 Bearing
While 36690-36620 Bearing excels in automotive drivetrains, its precision also suits aerospace landing gear components. The ABEC-1 rating ensures consistent performance across both industries.

Perfect Fit for Automation: 36690-36620 Bearing
Robotic arms and automated assembly lines benefit from 36690-36620 Bearing’s ability to handle varying loads. Its standard radial clearance offers flexibility for different operational demands.
