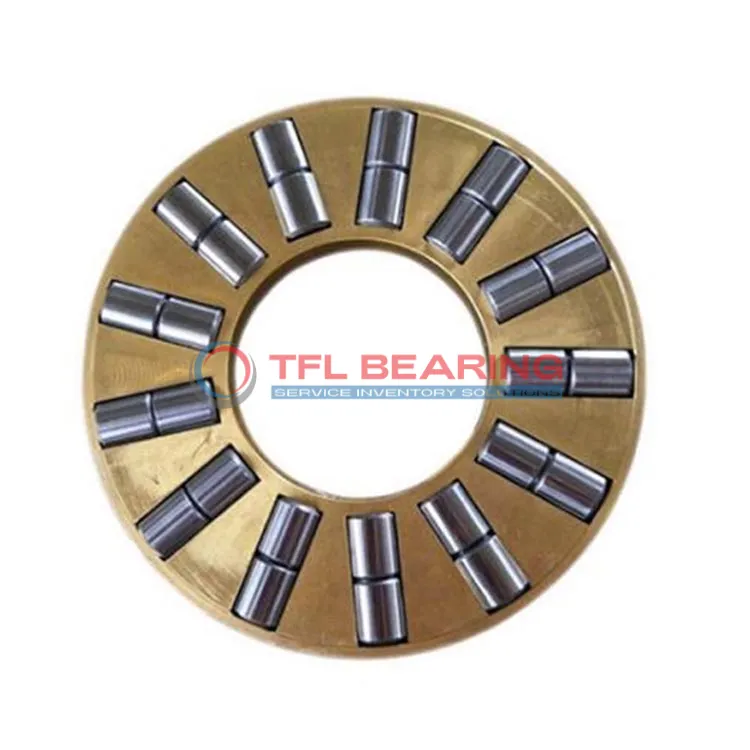

Double Row Cylindrical Roller Thrust Bearings assembly K 89322 M

Double Row Cylindrical Roller Thrust Bearings assembly K 89322 M

The K 89322 M is a double-row cylindrical roller thrust bearing measuring 110mm by 190mm by 15mm, built with durable chrome steel rollers and a machined brass cage. It handles heavy thrust loads up to 90000 lbf and operates smoothly at speeds up to 1700 RPM.

Its two-row design provides extra stability and load capacity, making it suitable for demanding applications. The brass cage ensures smooth movement and reduces friction, enhancing the bearing’s lifespan.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for industrial machinery, gearboxes, or heavy equipment where high thrust loads are common.

Weighing 1.82kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for use in temperatures ranging from -30°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number K 89322 M
  • Size 110 mm x 190 mm x 15 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 110 mm
  • Bore Dia Tolerance +0.072mm to +0.292mm
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.66mm to -1.38mm
  • Diameter Roller 15 mm
  • Raceway Diameter (min.) Roller And Cage Thrust Assembly 120 mm
  • Raceway Diameter (max.) Roller And Cage Thrust Assembly 185 mm
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 90000 lbf
  • Static Radial Load 411750 lbf
  • Max Speed 1700 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.82 kg
  • Shaft Washer WS 89322
  • Housing Washer GS 89322

Features

How Does K 89322 M Bearing Handle Heavy Loads?

K 89322 M Bearing features a double-row cylindrical roller design, optimised for high thrust load capacity.
Its chrome steel rollers and machined brass cage ensure durability and smooth operation under heavy loads.

With a dynamic radial load rating of 90,000 lbf, K 89322 M Bearing performs reliably in demanding conditions.
The precision-engineered raceway minimises friction, enhancing efficiency and extending service life.

K 89322 M Bearing operates efficiently within a temperature range of -30° to 110°C.
Its robust construction makes it suitable for high-speed applications, reaching up to 1,700 rpm.

Application

Industrial Uses of K 89322 M Bearing
K 89322 M Bearing is commonly used in heavy machinery, such as hydraulic presses and large gearboxes, where its double-row design handles significant thrust loads. The machined brass cage ensures smooth operation even under high stress.

Where Is K 89322 M Bearing Used?
In automotive applications, K 89322 M Bearing supports components like transmission systems, providing reliable performance under constant load. Its metric sizing makes it a versatile choice for various vehicle models.

Built for Heavy-Duty Use: K 89322 M Bearing
For industrial automation, K 89322 M Bearing is ideal for robotic arms and conveyor systems, thanks to its durable chrome steel rollers. The wide temperature range allows it to perform in diverse environments.

Automotive vs Aerospace: Applications of K 89322 M Bearing
In aerospace, K 89322 M Bearing is used in landing gear systems, where its high static load capacity is crucial. For automotive, it excels in clutch mechanisms, offering long-lasting durability.

Key Fields for K 89322 M Bearing
K 89322 M Bearing is a go-to for wind turbine yaw systems, where its robust construction handles variable loads. The brass cage reduces friction, ensuring efficient energy transfer.
