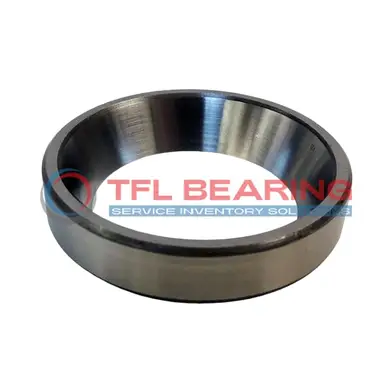

26831 Single Cups (Imperial)

26831 Single Cups (Imperial)

The 26831 single cup is an imperial-sized tapered roller bearing component, measuring 2.95″ in backface diameter and 3.4843″ in outer diameter. Made from chrome steel, it’s built to handle typical loads with a standard ABEC-1 precision rating.

Its cup width of 0.8125″ fits snugly in assemblies, while the 0.03″ backface clearance radius helps with proper seating. The cup works in temperatures from -30°C to 110°C, suitable for most industrial environments.

This standard cup pairs with cones like 26878 and 26880, offering interchangeability with Timken equivalents. Ideal for machinery repairs or axle systems where tapered roller bearings are used.

Compliant with RoHS and REACH standards, it’s a reliable choice for maintenance work. The chrome steel construction ensures good durability for everyday applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 26831
  • Brand TFL
  • Interchangeable Timken
  • Size 2.95" x 3.4843" x 0.8125"
  • Outer Dia 3.4843"
  • Outer Dia Tolerance +0.001" to 0
  • Cup Width 0.8125"
  • Cup Width Tolerance +0.002" to -0.01
  • Cup Backface ToClear Radius 0.03"
  • Cup Frontface Backing Diameter 3.05"
  • Cup Backface Backing Diameter 2.95"
  • System of Measurement Inch
  • Roller Bearing Type Tapered
  • Type Cups
  • Bearing Part Number 26878-26831 , 26880-26831
  • Cups Type Standard
  • Series 26800
  • Ring Material Chrome Steel
  • Temperature Range -30° to 110 °C
  • ABEC Rating ABEC-1
  • RoHS Compliant
  • REACH Compliant

Features

Performance Features of 26831 Single Cups

26831 Single Cups are crafted from chrome steel, offering durability and resistance to wear in tapered roller bearing applications.
The precise outer diameter of 3.4843″ ensures a snug fit, while the cup width tolerance of +0.002″ to -0.01″ allows for easy installation.
With a temperature range of -30° to 110°C, these cups perform reliably in various operating conditions.
Their standard design and ABEC-1 rating make them suitable for general industrial use.

Application

Industrial Uses of 26831 Single Cups
26831 Single Cups are commonly used in heavy machinery, such as construction equipment and agricultural gear, where tapered roller bearings handle significant radial and axial loads. Their chrome steel construction ensures durability even in tough working conditions.

Where Is 26831 Single Cups Used?
You’ll often find 26831 Single Cups in automotive applications, particularly in wheel hubs and differential systems, where precise alignment and load distribution are key. The inch sizing makes them a natural fit for North American vehicle designs.

Built for Heavy-Duty Use: 26831 Single Cups
In industrial conveyor systems, 26831 Single Cups provide reliable support for rotating shafts, thanks to their robust design and consistent performance. The standard cup type simplifies maintenance and replacement in busy production environments.

Automotive vs Industrial: Applications of 26831 Single Cups
While 26831 Single Cups excel in vehicle drivetrains, they’re equally effective in industrial settings like mining equipment, where their tapered design manages heavy loads. The ABEC-1 rating balances precision with cost-effectiveness for diverse needs.

Perfect Fit for Automation: 26831 Single Cups
26831 Single Cups work well in automated assembly lines, supporting smooth rotation in robotic arms and transfer systems. Their compatibility with Timken designs makes them a versatile choice for maintenance teams.
