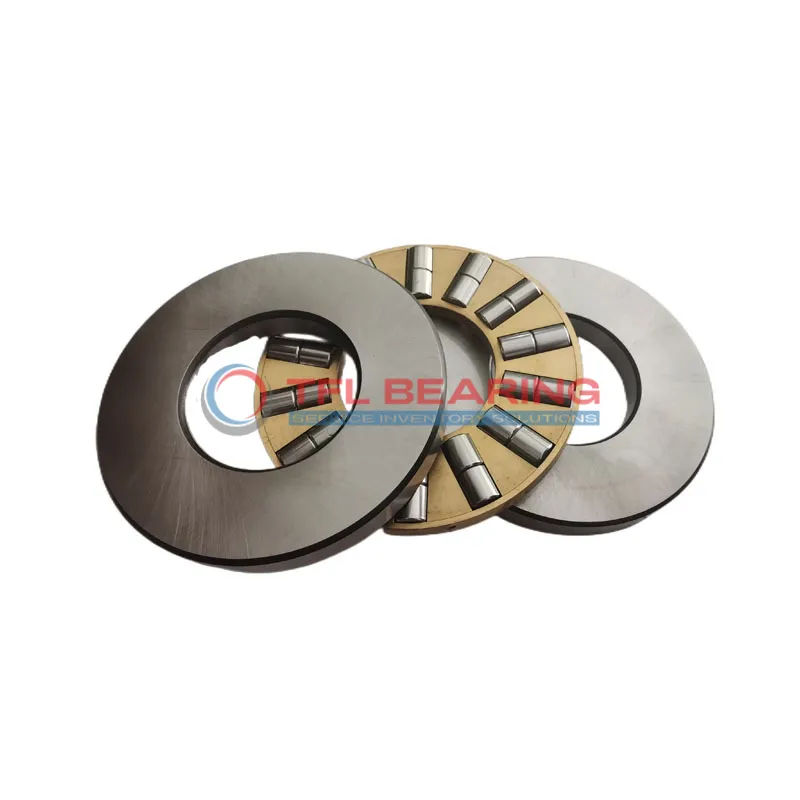

Double Row Cylindrical Roller Thrust Bearings 89460 M

Double Row Cylindrical Roller Thrust Bearings 89460 M

The 89460 M is a double-row cylindrical roller thrust bearing, measuring 300mm in bore diameter and 540mm in outer diameter, with a width of 145mm. Made from durable chrome steel, it’s built to handle heavy thrust loads with ease.

With a dynamic radial load capacity of 776250 lbf, this bearing can operate smoothly at speeds up to 500 RPM. Its machined brass cage ensures reliable performance and longevity.

The bearing’s two-row design provides excellent stability, making it suitable for high-load applications like industrial gearboxes or heavy machinery. It works well in temperatures ranging from -30°C to 110°C.

Weighing 153kg, this robust bearing is interchangeable with SKF models, offering a reliable replacement option. Compliant with RoHS and REACH standards, it’s a safe choice for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 89460 M
  • Size 300 mm x 540 mm x 145 mm
  • Brand TFL
  • Interchangeable brand SKF
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • Bearing Type Roller
  • For Load Direction Thrust
  • Number of Rows 2
  • Bore Dia 300 mm
  • Bore Dia Tolerance -0.035mm to 0
  • Outer Dia 540 mm
  • Outer Dia Tolerance -0.050mm to 0
  • Width 145 mm
  • Height Tolerance -0.40mm to +0.04mm
  • Outside Diameter Shaft Washer 537 mm
  • Bore Diameter Housing Washer 305 mm
  • Height Shaft Washer 48.5 mm
  • Chamfer Dimension Housing Washer r1,2 (min.) 6 mm
  • Washer Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Machined brass cage
  • Dynamic Radial Load 776250 lbf
  • Static Radial Load 4050000 lbf
  • Max Speed 500 rpm
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 153 kg
  • Shaft Washer IW-89460
  • Housing Washer OW-89460
Double Row Cylindrical Roller Thrust Bearings 89460 M dimension drawing
Download DWG Download PDF

Features

How Does 89460 M Bearing Handle Heavy Loads?

89460 M Bearing features a double-row cylindrical roller design, ideal for handling high thrust loads.
Its dynamic radial load capacity reaches 776,250 lbf, making it suitable for heavy-duty applications.
The machined brass cage ensures smooth operation and reduces wear, enhancing longevity.
With a maximum speed of 500 rpm, it balances performance and durability in demanding conditions.

Structural Advantages of 89460 M Bearing

89460 M Bearing is built with chrome steel washers and rollers, providing excellent strength and resistance.
The precise chamfer dimension of 6 mm on the housing washer ensures easy installation and alignment.
Its robust design withstands static radial loads up to 4,050,000 lbf, ensuring reliability.
The bearing operates efficiently within a temperature range of -30° to 110°C.

Why Choose 89460 M Bearing for Precision Tasks?

89460 M Bearing’s double-row design offers enhanced stability and load distribution.
The machined brass cage maintains roller alignment, reducing friction and noise.
With a bore diameter of 300 mm and outer diameter of 540 mm, it fits large machinery perfectly.
Its compliance with RoHS and REACH standards ensures environmental and safety compatibility.

Application

Industrial Uses of 89460 M Bearing
The 89460 M Bearing is commonly used in heavy machinery like industrial presses and large conveyor systems, where its double-row design handles significant thrust loads. Its chrome steel construction ensures durability even in demanding environments.

Where Is 89460 M Bearing Used?
You’ll often find 89460 M Bearing in wind turbine gearboxes, where its high load capacity and brass cage provide reliable performance. Its metric sizing makes it a versatile choice for European and Asian equipment.

Built for Heavy-Duty Use: 89460 M Bearing
This bearing excels in applications like steel rolling mills, where its robust design and high static load rating are essential. The machined brass cage adds stability, reducing wear over time.

Automotive vs Aerospace: Applications of 89460 M Bearing
In automotive settings, 89460 M Bearing supports large drivetrain components, while in aerospace, it’s used in landing gear systems. Its temperature range and load capacity make it adaptable to both fields.

Essential Roles of 89460 M Bearing
For medical imaging devices, 89460 M Bearing’s precision and smooth operation are crucial. Its chrome steel rollers ensure consistent performance in high-accuracy applications.
