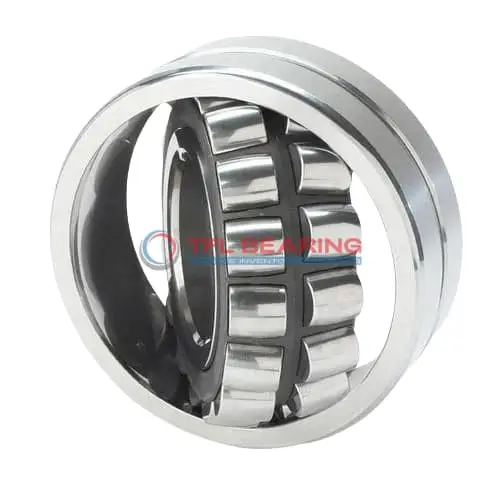

22226 CY W33 Double Row Spherical Roller Bearing

22226 CY W33 Double Row Spherical Roller Bearing

The 22226 CY W33 is a double-row spherical roller bearing with a 130mm bore and 230mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 170405 lbf and operates smoothly at speeds up to 3600 RPM.

Its brass cage enhances durability, while the open design allows for easy lubrication. The bearing performs reliably in temperatures ranging from -30°C to 200°C.

With a lubrication groove and hole, maintenance is straightforward. This model is interchangeable with SKF bearings, making it a practical choice for replacements.

Ideal for heavy-duty applications like industrial machinery or construction equipment where robust performance is needed. Weighing 11.5kg, it’s built to handle demanding conditions while complying with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 22226 CY W33
  • Brand TFL
  • Interchangeable SKF
  • Size 130 x 230 x 64 mm
  • Bore Dia 130 mm
  • Bore Dia Tolerance -0.025mm to 0
  • Outer Dia 230 mm
  • Outer Dia Tolerance -0.030mm to 0
  • Width 64 mm
  • Width Tolerance -0.08mm to 0
  • Shoulder Dia Of Inner Ring 152 mm
  • Shoulder/Recess Dia Of Outer Ring 201 mm
  • Width Of Lubrication Groove 11.1 mm
  • Diameter Of Lubrication Hole 6 mm
  • Chamfer Dimension min.3 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 170405 lbf
  • Static Radial Load 209072 lbf
  • Max Speed 3600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 11.5 kg
  • Price （US$） US$157.50

Features

How Does 22226 CY W33 Bearing Handle Combined Loads?

22226 CY W33 Bearing features a double-row spherical roller design, ideal for handling both radial and axial loads.
Its chrome steel construction ensures durability, with a dynamic radial load capacity of 170405 lbf.

The brass cage maintains roller alignment, reducing friction and enhancing performance.
With a maximum speed of 3600 rpm, it suits high-speed applications while maintaining stability.

22226 CY W33 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its lubrication groove and hole design ensure consistent performance, even under heavy loads.

Application

Industrial Uses of 22226 CY W33 Bearing
22226 CY W33 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles high radial and axial loads. The brass cage ensures smooth operation even under demanding conditions.

Where Is 22226 CY W33 Bearing Used?
You’ll often find 22226 CY W33 Bearing in mining equipment, where its robust construction withstands harsh environments. The lubrication groove and hole make maintenance straightforward, reducing downtime.

Built for Heavy-Duty Use: 22226 CY W33 Bearing
22226 CY W33 Bearing excels in paper mills and steel plants, thanks to its chrome steel rollers and high load capacity. Its temperature range of -30° to 200°C ensures reliability in varied climates.

Automotive vs Aerospace: Applications of 22226 CY W33 Bearing
In automotive applications, 22226 CY W33 Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems. The metric sizing ensures compatibility across industries.

Essential Roles of 22226 CY W33 Bearing
22226 CY W33 Bearing is vital in wind turbines, where its spherical rollers accommodate misalignment. The open seal design allows for easy lubrication, extending service life.
