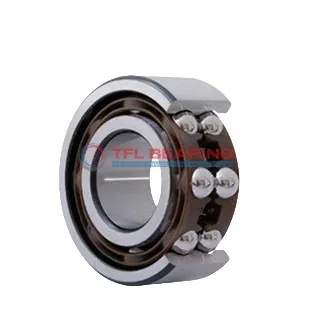

Double Row Angular Contact Ball Bearings (General) 3306 ATN9

Brand: TFL Bearing Interchangeable: SKF 3306 ATN9 30 mm × 72 mm × 30.2 mm Metric Open
Part number: 3306 ATN9
Double Row Angular Contact Ball Bearings (General) 3306 ATN9
In Stock
Price on request
Send your part number and quantity for a quote
Get a Quote WhatsApp
  • ISO 9001 quality system
  • RoHS & REACH compliant
  • Pre-shipment inspection
  • Lead time confirmed with your quote
Dimensions
Bore Dia30 mm
Bore Dia Tolerance-0.008mm to 0
Outer Dia72 mm
Outer Dia Tolerance-0.011mm to 0
Width30.2 mm
Width Tolerance-0.05mm to 0
Chamfer Dimension1.1 mm
Performance
Dynamic Radial Load9,562 lbf
Static Radial Load6,750 lbf
Max Speed9,000 rpm
Temperature Range-30° to 110 °C
Characteristics
System of MeasurementMetric
Bearing TypeBall
For Load DirectionAngular Contact
ConstructionDouble Row
Seal TypeOpen
Distance Pressure Point (a)42 mm
LubricationLubricated
Tolerance ClassP6 (ABEC-3)
Weight0.52 kg
Material
Ring MaterialChrome Steel
Ball MaterialChrome Steel
Cage MaterialNylon
Compliance
ROHSCompliant
REACHCompliant
Dimension drawing · click to enlarge

Description

The 3306 ATN9 is a double-row angular contact ball bearing with a 30mm bore and 72mm outer diameter, crafted from durable chrome steel. It manages radial loads up to 9562 lbf and operates smoothly at speeds up to 9000 RPM.

Its open design and nylon cage reduce friction, while the double-row construction offers stability under angular loads. The bearing performs reliably in temperatures ranging from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where combined radial and axial loads are present.

Weighing 0.52kg, it balances strength with manageable size. Compliant with RoHS and REACH standards for safe use.

Features

Performance Features of 3306 ATN9 Bearing

3306 ATN9 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 9562 lbf, ensuring reliable performance in demanding applications.

The nylon cage keeps the balls aligned, reducing wear and extending service life.
With a maximum speed of 9,000 rpm, it balances durability and efficiency.

3306 ATN9 Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its double-row design provides stability and precision for angular contact applications.

The P6 tolerance class ensures consistent performance and reliability.
This makes 3306 ATN9 Bearing suitable for a variety of industrial uses.

Application

Industrial Uses of 3306 ATN9 Bearing
3306 ATN9 Bearing is commonly used in machine tools, where its double-row design handles combined radial and axial loads efficiently. The open seal type simplifies lubrication, ensuring smooth operation in demanding industrial environments.

In automotive applications, 3306 ATN9 Bearing supports components like wheel hubs and transmissions, thanks to its high dynamic radial load capacity. The metric sizing and P6 tolerance make it a reliable choice for precision automotive systems.

For automation equipment, 3306 ATN9 Bearing’s nylon cage reduces friction, making it ideal for robotic arms and conveyor systems. Its chrome steel construction ensures durability even in high-speed operations.

Where Is 3306 ATN9 Bearing Used?
You’ll often find 3306 ATN9 Bearing in industrial fans, where its angular contact design manages both radial and thrust loads effectively. The lubricated setup minimises maintenance needs, perfect for continuous operation.

In 3D printers, 3306 ATN9 Bearing provides precise motion control due to its P6 tolerance class. The lightweight nylon cage also helps reduce noise, enhancing print quality.

Built for Heavy-Duty Use: 3306 ATN9 Bearing
3306 ATN9 Bearing excels in construction equipment, handling heavy loads with its robust chrome steel rings. The double-row configuration ensures stability even under uneven force distribution.

For packaging machinery, 3306 ATN9 Bearing offers reliable performance with its high static radial load rating. The open design allows for easy inspection and re-lubrication during routine maintenance.
