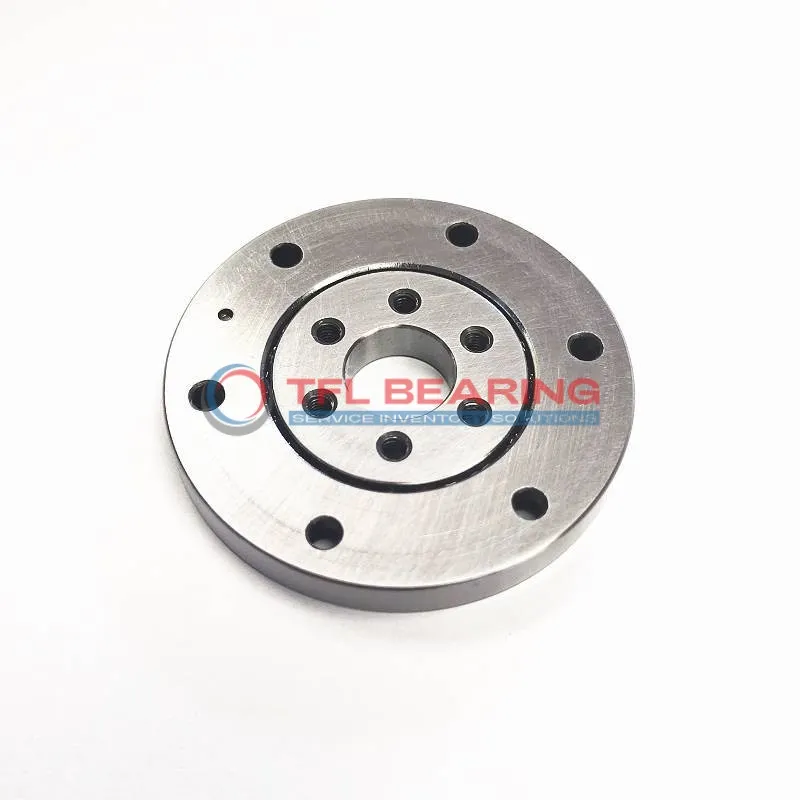

CRBF Crossed Roller Bearings CRBFV9025A

CRBF Crossed Roller Bearings CRBFV9025A

The CRBFV9025A is a crossed roller bearing measuring 90mm in bore diameter, 210mm in outer diameter, and 25mm in width, crafted from sturdy steel for reliable performance. It handles combined loads with a basic load rating of 73.4 kN, making it suitable for demanding applications.

Its open design allows for easy lubrication, while the press-fit shaft mount ensures a secure installation. The bearing operates smoothly in temperatures ranging from 0°C to 110°C, suitable for various industrial environments.

Featuring mounting holes on both inner and outer rings, it simplifies assembly in machinery. With an ABEC5 rating (and options for higher precision), it’s ideal for applications requiring accuracy, such as robotics or CNC equipment.

Weighing 4.67kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe and dependable choice for engineers and maintenance teams.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBFV9025A
  • Brand TFL
  • Interchangeable brand IKO
  • Size 90 mm x 210 mm x 25 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 90 mm
  • Outer Dia 210 mm
  • Width 25 mm
  • Inner Ring PCD1 112 mm
  • Outer Ring PCD2 187 mm
  • Holes With Holes
  • Inner Ring Mounting Hole 12- φ 9 through φ 14 counter bore depth 12
  • Outer Ring Mounting Hole 12-φ9 through φ14 counter bore depth 12
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 73.4 kN
  • Basic Load Rating Co 108 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 4.67 Kg

Features

Performance Features of CRBFV9025A Bearing

CRBFV9025A Bearing is designed for combined load applications, offering reliable performance in various conditions.

Its crossed roller design provides high rigidity and precision, making it suitable for demanding tasks.

The steel construction ensures durability, while the open seal type allows for easy lubrication access.

With a basic load rating of 73.4 kN, it handles substantial loads efficiently.

How Does CRBFV9025A Bearing Ensure Precision?

CRBFV9025A Bearing features a single-row crossed roller design, enhancing accuracy in motion control applications.

The mounting holes simplify installation, ensuring proper alignment and reducing setup time.

Its ABEC5 rating guarantees consistent performance, with options for higher precision (ABEC7/9) if needed.

The steel rollers and rings provide stability, even under heavy loads.

Built for Reliability: CRBFV9025A Bearing

CRBFV9025A Bearing operates in temperatures from 0 to 230°F, maintaining performance in varied environments.

The press-fit shaft mount ensures a secure connection, reducing slippage during operation.

With a weight of 4.67 kg, it balances strength and manageability for industrial use.

Its compliance with RoHS and REACH standards highlights its environmental safety.

Steel vs Ceramic Bearings: Strengths of CRBFV9025A Bearing

CRBFV9025A Bearing uses high-quality steel for both rings and rollers, ensuring durability and cost-effectiveness.

The basic static load rating of 108 kN makes it suitable for heavy-duty applications.

Its crossed roller design distributes loads evenly, reducing wear and extending service life.

The required lubrication ensures smooth operation, even under continuous use.

Application

Industrial Uses of CRBFV9025A Bearing
CRBFV9025A Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables and indexing heads. The steel construction ensures durability in high-load industrial environments.

In robotics, CRBFV9025A Bearing supports articulated arms and joints, offering smooth movement under combined loads. Its press-fit mounting simplifies installation in automated systems.

For medical imaging devices, CRBFV9025A Bearing’s high accuracy and stability are essential for precise positioning. The open design allows for easy lubrication, maintaining performance in critical applications.

CRBFV9025A Bearing is also found in packaging machinery, where its ability to handle both radial and axial loads improves efficiency. The metric sizing ensures compatibility with European equipment standards.
