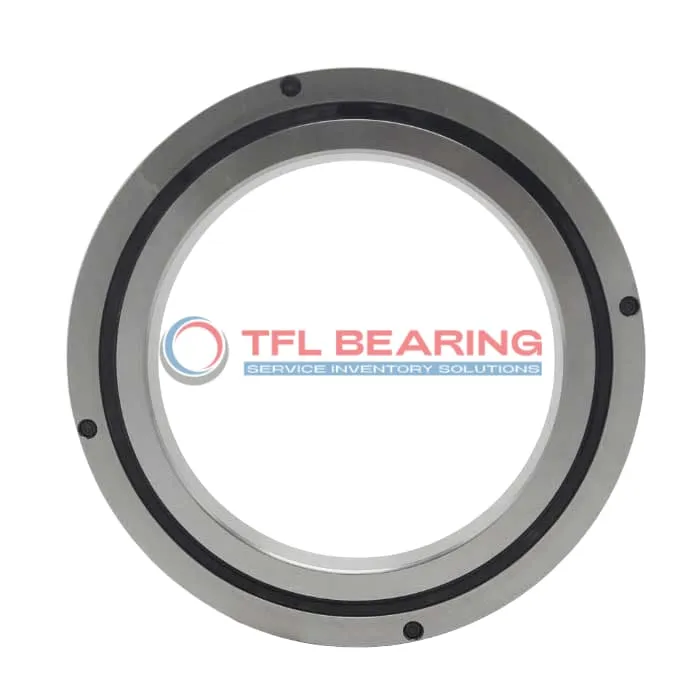

CRBC Crossed Roller Bearings CRBC7013UU

CRBC Crossed Roller Bearings CRBC7013UU

The CRBC7013UU is a compact crossed roller bearing measuring 70mm by 100mm by 13mm, crafted from sturdy steel for reliable performance. It handles combined loads up to 19.4 kN and is designed for press-fit mounting.

Its double-seal construction keeps contaminants out while retaining lubrication, making it suitable for dusty environments. The bearing operates smoothly in temperatures ranging from 0°C to 110°C.

With an ABEC5 rating (upgradable to ABEC7/9), it offers precision for applications requiring tight tolerances. Ideal for rotary tables or robotic arms where space is limited but performance is key.

Weighing just 0.35kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, ensuring safe use in various industries.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC7013UU
  • Brand TFL
  • Size 70 mm x 100 mm x 13 mm
  • Bore Dia 70 mm
  • Outer Dia 100 mm
  • Width 13 mm
  • R(min) 0.6 mm
  • Shoulder Height Ds(max) 77 mm
  • Shoulder Height Dh(min) 92 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 19.4 kN
  • Basic Load Rating Co 27.7 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 0.35 Kg

Features

Performance Features of CRBC7013UU Bearing

CRBC7013UU Bearing is designed for combined load applications, offering a balanced performance with its crossed roller design.
Its steel rings and rollers provide a basic load rating of 19.4 kN, ensuring durability under stress.

The double-seal construction protects against contaminants, making it suitable for demanding environments.
With a temperature range of 0-230°F, CRBC7013UU Bearing maintains reliability in varied conditions.

Its press-fit shaft mount simplifies installation, reducing setup time and effort.
The ABEC5 rating ensures precision, with options for higher accuracy in ABEC7/9 versions.

Application

Industrial Uses of CRBC7013UU Bearing
CRBC7013UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The double seal helps keep contaminants out, extending the bearing’s lifespan in demanding environments.

In automation systems, CRBC7013UU Bearing supports robotic arms, ensuring smooth and precise movement. Its press-fit mounting makes installation straightforward, saving time during assembly.

For medical imaging devices, CRBC7013UU Bearing’s steel construction offers reliable performance under combined loads. The ABEC5 rating ensures consistent accuracy, which is vital for diagnostic equipment.

CRBC7013UU Bearing also fits well in 3D printers, where its compact size and high load capacity improve print quality. The temperature range allows it to handle various operating conditions without issues.
