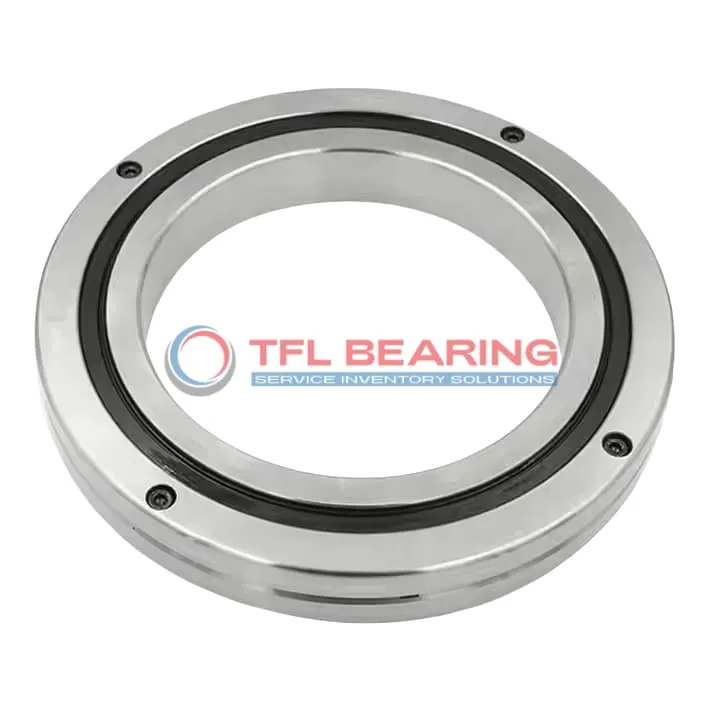

CRBC Crossed Roller Bearings CRBC20035

CRBC Crossed Roller Bearings CRBC20035

The CRBC20035 is a crossed roller bearing with a 200mm bore and 295mm outer diameter, designed for combined loads. Its compact 35mm width makes it suitable for tight spaces, while the steel construction ensures durability.

With a basic load rating of 151 kN, it handles heavy loads efficiently. The open design allows for easy lubrication, and it operates smoothly in temperatures from 0°C to 110°C.

The crossed roller design provides high precision, making it ideal for applications like rotary tables or robotics. Press fit mounting ensures a secure installation.

Weighing 9.6kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial use. ABEC5 precision is standard, with higher grades available.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC20035
  • Brand TFL
  • Size 200 mm x 295 mm x 35 mm
  • Bore Dia 200 mm
  • Outer Dia 295 mm
  • Width 35 mm
  • R(min) 2 mm
  • Shoulder Height Ds(max) 225 mm
  • Shoulder Height Dh(min) 270 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 151 kN
  • Basic Load Rating Co 252 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 9.6 Kg

Features

Performance Features of CRBC20035 Bearing

CRBC20035 Bearing is designed with a single-row crossed roller construction, ideal for handling combined loads.
Its steel rings and rollers provide a basic load rating of 151 kN, ensuring robust performance.

The press-fit shaft mount type simplifies installation, saving time and effort.
With a temperature range of 0-230°F, CRBC20035 Bearing operates reliably in various conditions.

ABEC5 precision ensures smooth operation, with options for higher ABEC7/9 ratings.
Weighing 9.6 kg, it balances durability and ease of handling.

Application

Industrial Uses of CRBC20035 Bearing
CRBC20035 Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads.
The steel construction ensures durability in high-precision applications, making it a reliable choice for industrial settings.

Where Is CRBC20035 Bearing Used?
You’ll often find CRBC20035 Bearing in robotics, particularly in articulated arms that require smooth, precise movement.
Its press-fit mounting simplifies installation, while the open design allows for easy lubrication and maintenance.

Built for Heavy-Duty Use: CRBC20035 Bearing
CRBC20035 Bearing handles combined loads effortlessly, making it ideal for heavy machinery like turntables and lifting equipment.
The ABEC5 rating ensures consistent performance, even under demanding conditions.

Automotive vs Aerospace: Applications of CRBC20035 Bearing
In automotive testing rigs, CRBC20035 Bearing supports precise measurements due to its high load capacity.
For aerospace applications, its temperature range and stability make it suitable for navigation systems and flight simulators.
