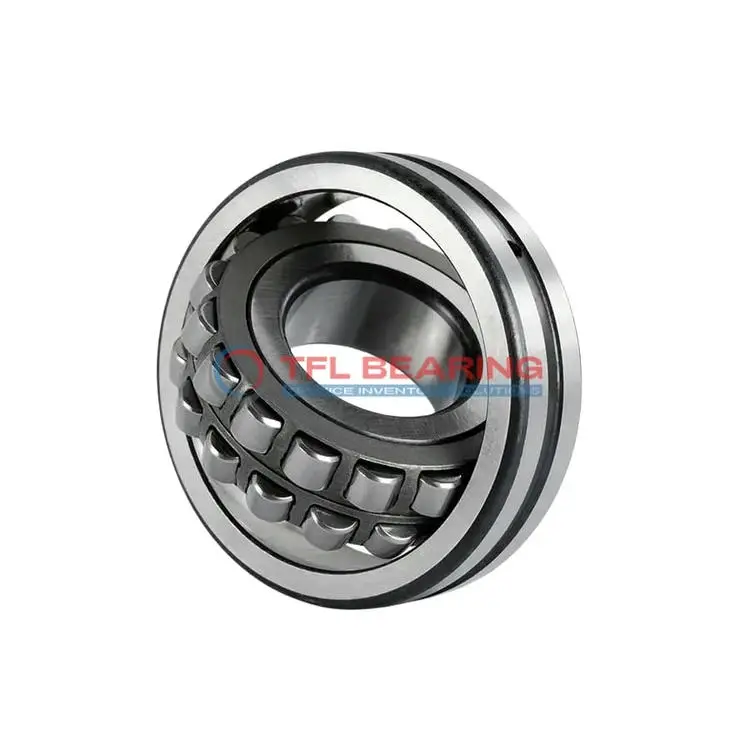

24013-2RS5W/VT143 Double Row Spherical Roller Bearing

24013-2RS5W/VT143 Double Row Spherical Roller Bearing

The 24013-2RS5W/VT143 is a double-row spherical roller bearing with a 65mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It manages combined loads up to 30799 lbf and operates smoothly at speeds up to 2600 RPM.

Its double-seal design keeps contaminants out while maintaining lubrication, and the steel cage ensures durability. The bearing performs well in temperatures ranging from -30°C to 200°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or mining equipment where robust performance is needed.

Weighing 0.95kg, it offers a solid balance of strength and manageability. Compliant with RoHS and REACH standards for safe and reliable use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 24013-2RS5W/VT143
  • Brand TFL
  • Interchangeable SKF
  • Size 65 x 100 x 35 mm
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 35 mm
  • Width Tolerance -0.06mm to 0
  • Shoulder Dia Of Inner Ring 71.6 mm
  • Shoulder/Recess Dia Of Outer Ring 93.5 mm
  • Chamfer Dimension min.1.1 mm
  • System of Measurement Metric
  • Radial run-out Standard
  • Bearing Type Roller
  • Roller Bearing Type Spherical
  • Bore Type Cylindrical
  • For Load Direction Combined
  • Construction Double Row
  • Seal Type Double Seal
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Steel
  • Dynamic Radial Load 30799 lbf
  • Static Radial Load 38892 lbf
  • Max Speed 2600 rpm
  • Lubrication Required
  • Temperature Range -30° to 200 °C
  • Radial Clearance CN
  • RoHs Compliant
  • REACH Compliant
  • Weight 0.95 kg
  • Price （US$） 146.71

Features

How Is 24013-2RS5W/VT143 Bearing Engineered for Reliability?

24013-2RS5W/VT143 Bearing features a double-row spherical roller design, ideal for handling combined loads with ease.
Its chrome steel construction ensures durability, even under high dynamic radial loads up to 30799 lbf.

The double-seal design protects against contaminants, making it suitable for harsh environments.
With a maximum speed of 2600 rpm, it delivers consistent performance in demanding applications.

24013-2RS5W/VT143 Bearing operates efficiently in temperatures ranging from -30° to 200°C.
Its robust design and quality materials ensure long service life with minimal maintenance.

Application

Industrial Uses of 24013-2RS5W/VT143 Bearing
24013-2RS5W/VT143 Bearing is commonly used in heavy machinery like crushers and vibrating screens, where its double-row design handles both radial and axial loads efficiently. The double seals help keep contaminants out, extending the bearing’s life in harsh conditions.

What Makes 24013-2RS5W/VT143 Bearing a Preferred Choice?
In conveyor systems, 24013-2RS5W/VT143 Bearing’s high dynamic load capacity ensures reliable performance even under continuous operation. Its chrome steel construction also resists wear, making it suitable for high-load industrial applications.

Built for Heavy-Duty Use: 24013-2RS5W/VT143 Bearing
For mining equipment, 24013-2RS5W/VT143 Bearing’s robust design can withstand extreme loads and vibrations. The wide temperature range allows it to perform reliably in both hot and cold environments.

Automotive vs Aerospace: Applications of 24013-2RS5W/VT143 Bearing
In automotive drivetrains, 24013-2RS5W/VT143 Bearing supports heavy loads while maintaining smooth rotation. Its aerospace applications are limited due to weight constraints, but it excels in ground-based heavy machinery.

Key Fields for 24013-2RS5W/VT143 Bearing
24013-2RS5W/VT143 Bearing is ideal for wind turbines, where its spherical roller design compensates for shaft misalignment. The steel cage ensures durability, even in high-speed rotational environments.
