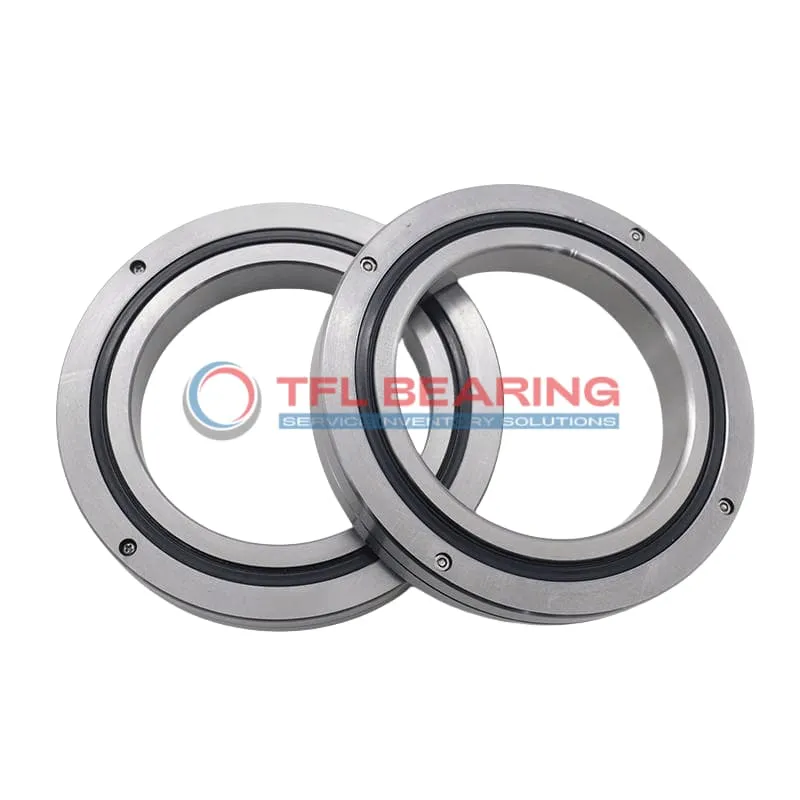

CRBC Crossed Roller Bearings CRBC13025UU

CRBC Crossed Roller Bearings CRBC13025UU

The CRBC13025UU is a crossed roller bearing with a 130mm bore and 190mm outer diameter, crafted from sturdy steel for reliable performance. It handles combined loads up to 69.5 kN and fits snugly with a press-fit design.

Its double-sealed construction keeps out contaminants, making maintenance easier. The bearing operates smoothly in temperatures ranging from 0°C to 110°C.

With an ABEC5 rating (upgradable to ABEC7/9), it offers precision for demanding applications. Ideal for rotary tables or robotics where accuracy and durability are key.

Weighing 2.82kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC13025UU
  • Brand TFL
  • Size 130 mm x 190 mm x 25 mm
  • Bore Dia 130 mm
  • Outer Dia 190 mm
  • Width 25 mm
  • R(min) 1.5 mm
  • Shoulder Height Ds(max) 143 mm
  • Shoulder Height Dh(min) 174 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 69.5 kN
  • Basic Load Rating Co 107 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.82 Kg

Features

How Does CRBC13025UU Bearing Handle Combined Loads?

CRBC13025UU Bearing features a crossed roller design, providing stability under combined loads.
Its steel rings and rollers ensure durability, with a basic load rating of 69.5 kN.

The double seal construction protects against contaminants, enhancing reliability.
With a temperature range of 0-230°F, it performs well in varied conditions.

CRBC13025UU Bearing’s press-fit shaft mount simplifies installation and reduces slippage.
Its ABEC5 rating ensures precision, with options for higher accuracy if needed.

Application

Industrial Uses of CRBC13025UU Bearing
CRBC13025UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The double seal helps keep contaminants out, ensuring long service life in dusty workshops.

Where Is CRBC13025UU Bearing Used?
You’ll find CRBC13025UU Bearing in robotics, particularly in articulated arms that require precise movement. Its press-fit mounting makes installation straightforward, saving time during assembly.

Built for Heavy-Duty Use: CRBC13025UU Bearing
This bearing handles combined loads effortlessly, making it ideal for industrial automation systems like conveyor rollers. The steel construction offers good resistance to wear, even in demanding conditions.

Automotive vs Aerospace: Applications of CRBC13025UU Bearing
In automotive testing rigs, CRBC13025UU Bearing supports high-precision measurement equipment. For aerospace, it’s often used in satellite antenna positioning systems due to its reliable performance.

Perfect Fit for Automation: CRBC13025UU Bearing
CRBC13025UU Bearing works well in 3D printers, where smooth linear motion is essential. The ABEC5 rating ensures consistent accuracy for detailed printing jobs.
