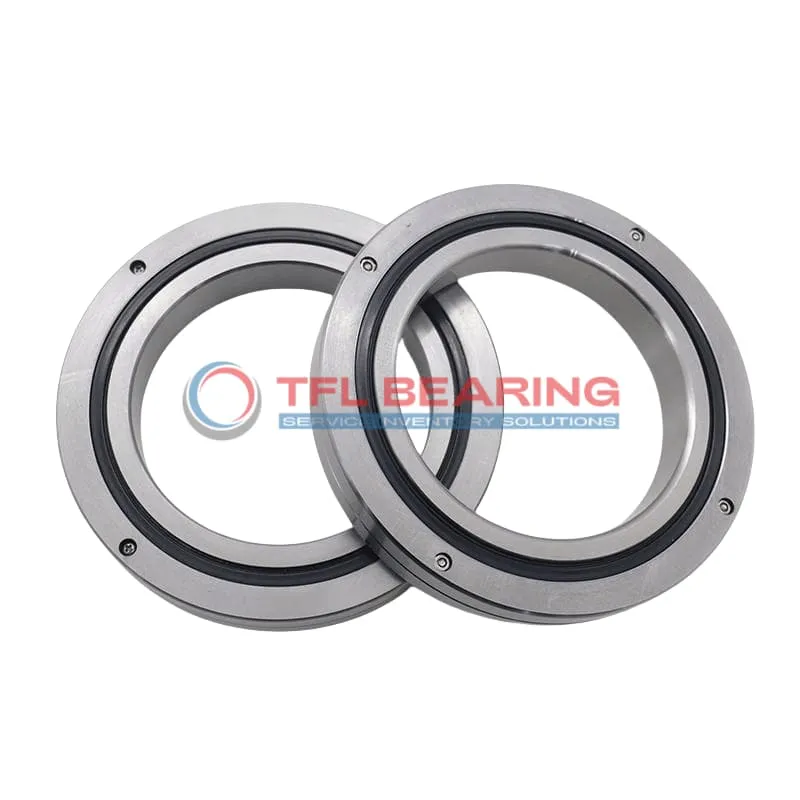

CRBC Crossed Roller Bearings CRBC13025

CRBC Crossed Roller Bearings CRBC13025

The CRBC13025 is a crossed roller bearing with a 130mm bore and 190mm outer diameter, designed for combined loads. Its compact 25mm width and steel construction make it sturdy yet space-efficient.

It handles loads up to 69.5 kN and is press-fit mounted for secure installation. The open design allows easy lubrication, extending its service life.

With a temperature range of 0-230°F, it suits demanding environments. The ABEC5 rating ensures smooth operation, with higher precision options available.

Ideal for robotics or CNC machinery where precision and load capacity matter. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications. Weighing 2.82kg, it balances strength and manageability.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC13025
  • Brand TFL
  • Size 130 mm x 190 mm x 25 mm
  • Bore Dia 130 mm
  • Outer Dia 190 mm
  • Width 25 mm
  • R(min) 1.5 mm
  • Shoulder Height Ds(max) 143 mm
  • Shoulder Height Dh(min) 174 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Open
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 69.5 kN
  • Basic Load Rating Co 107 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 2.82 Kg

Features

Performance Features of CRBC13025 Bearing

CRBC13025 Bearing is designed for combined load applications, offering a balanced performance in various conditions.
Its steel rings and rollers provide a basic load rating of 69.5 kN, ensuring reliable operation under stress.

The crossed roller design enhances stability, making it suitable for precision tasks.
With a temperature range of 0 to 230°F, CRBC13025 Bearing performs well in diverse environments.

The press-fit shaft mount simplifies installation, reducing setup time.
Its open construction allows for easy lubrication, maintaining smooth operation over time.

CRBC13025 Bearing meets ABEC5 standards, with options for higher precision in ABEC7/9.
Weighing 2.82 kg, it balances durability and ease of handling.

Application

Industrial Uses of CRBC13025 Bearing
CRBC13025 Bearing is commonly used in machine tools, where its crossed roller design provides excellent stability for rotary tables and indexing heads. The press-fit mounting ensures secure installation in high-precision equipment.

In robotics, CRBC13025 Bearing supports articulated arms, offering smooth rotation under combined loads. Its steel construction and ABEC5 rating make it reliable for repetitive movements in automated systems.

For medical imaging devices, CRBC13025 Bearing’s precise movement and load capacity are ideal for CT scanners. The open design allows for easy lubrication, maintaining performance in critical healthcare applications.

Where Is CRBC13025 Bearing Used?
You’ll find CRBC13025 Bearing in conveyor systems, where its combined load handling keeps production lines running smoothly. The metric sizing fits seamlessly into European and Asian machinery designs.

In packaging equipment, CRBC13025 Bearing ensures accurate positioning of moving parts. Its temperature range of 0-230°F makes it suitable for various industrial environments.

Built for Heavy-Duty Use: CRBC13025 Bearing
CRBC13025 Bearing excels in construction machinery, handling heavy loads with its 69.5 kN dynamic rating. The steel rollers and rings provide durability in tough working conditions.

For 3D printers, CRBC13025 Bearing’s precision supports the smooth movement of print heads. Its compact width of 25mm fits well in space-constrained designs.

Automotive vs Aerospace: Applications of CRBC13025 Bearing
In automotive testing rigs, CRBC13025 Bearing withstands high-speed rotations and variable loads. The ABEC5 rating ensures consistent performance in quality control setups.

For aerospace applications, CRBC13025 Bearing’s temperature resistance makes it suitable for auxiliary equipment. Its press-fit design reduces vibration in sensitive instrumentation.
