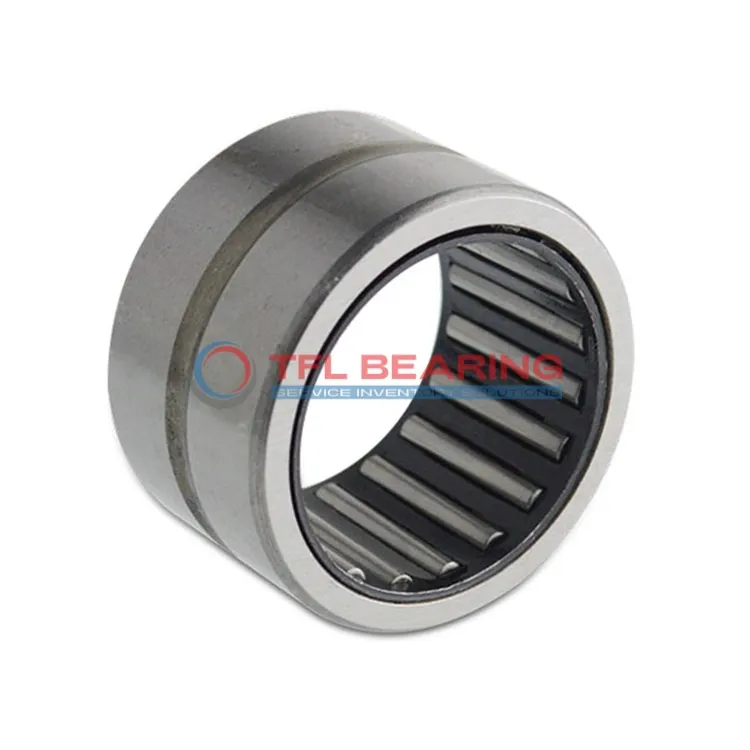

Heavy Duty Needle Roller Bearings (Machined) RNAO10X17X10-TV-XL

Heavy Duty Needle Roller Bearings (Machined) RNAO10X17X10-TV-XL

The RNAO10X17X10-TV-XL is a heavy-duty needle roller bearing with a 10mm bore and 17mm outer diameter, crafted from sturdy steel. It handles radial loads up to 1192 lbf and spins at speeds up to 29,500 RPM, making it suitable for high-performance applications.
Its open design and PA66 cage ensure smooth operation and easy lubrication. The bearing is press-fit mounted, providing a secure fit on shafts without an inner ring.
This model is interchangeable with INA bearings, offering a reliable replacement option. Ideal for use in compact spaces like gearboxes or small machinery where high radial loads are present.
Weighing just 10g, it’s lightweight yet durable. Compliant with RoHS standards, it operates in temperatures from -20°C to 110°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number RNAO10X17X10-TV-XL
  • Brand TFL
  • Interchangeable brand INA
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Needle
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Inner Ring No
  • Series Without Inner Ring
  • Bore Dia 10 mm
  • Bore Dia Tolerance 0.013mm to 0.022mm
  • Outer Dia 17 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 10 mm
  • Width Tolerance -0.12mm to 0
  • Ring Material Steel
  • Cage Material PA66
  • Roller Material Steel
  • Dynamic Radial Load 1192 lbf
  • Static Radial Load 1238 lbf
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range -20 to 110 °C
  • RoHS Compliant
  • Max Speed 29500 rpm
  • Weight 10 g
Heavy Duty Needle Roller Bearings (Machined) RNAO10X17X10-TV-XL dimension drawing
Download DWG Download PDF

Features

How Does RNAO10X17X10-TV-XL Bearing Handle High-Speed Applications?
RNAO10X17X10-TV-XL Bearing is built with steel rollers and a PA66 cage, ensuring durability even at high speeds.
Its dynamic radial load capacity of 1192 lbf makes it suitable for demanding radial load applications.
The bearing operates efficiently within a temperature range of -20 to 110 °C, adapting to various environments.
With a maximum speed of 29,500 rpm, it offers reliable performance for high-speed machinery.

Application

Key Fields for RNAO10X17X10-TV-XL Bearing
RNAO10X17X10-TV-XL Bearing is commonly used in industrial gearboxes, where its compact design and high radial load capacity make it ideal for tight spaces. The steel construction ensures durability even in demanding environments.
In automotive applications, RNAO10X17X10-TV-XL Bearing fits well in transmission systems, providing smooth operation under high speeds. Its press-fit mounting simplifies installation in vehicle assemblies.
For automation equipment, RNAO10X17X10-TV-XL Bearing supports precise motion control in robotic arms and conveyor systems. The open design allows for easy lubrication, extending its service life.
In household appliances like washing machines, RNAO10X17X10-TV-XL Bearing handles radial loads efficiently, ensuring quiet and reliable performance. The lightweight design also helps reduce overall energy consumption.
