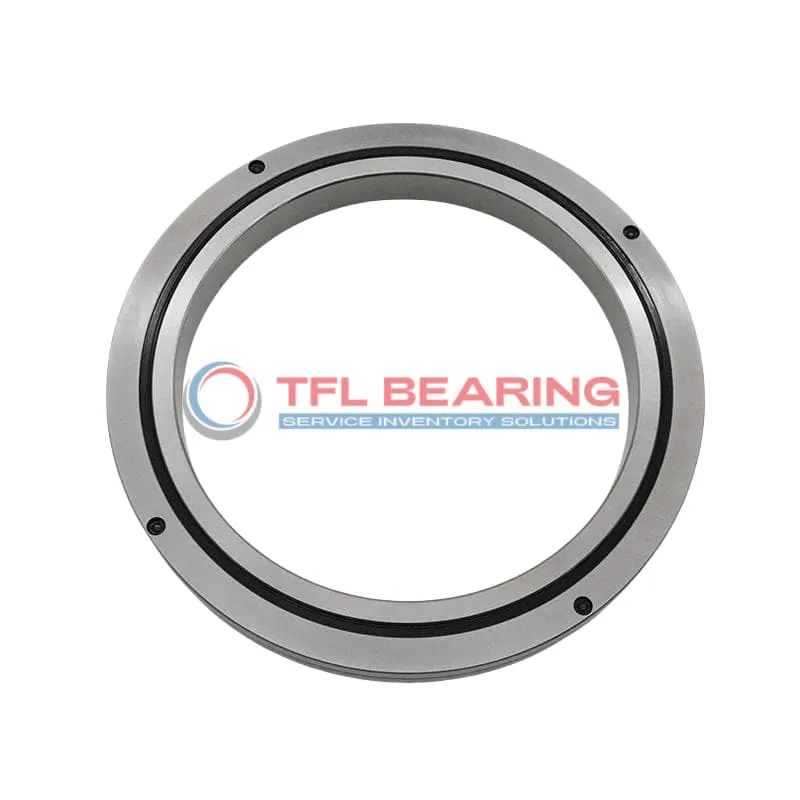

CRBC Crossed Roller Bearings CRBC10020UU

CRBC Crossed Roller Bearings CRBC10020UU

The CRBC10020UU is a crossed roller bearing with a 100mm bore and 150mm outer diameter, designed for combined loads. Its compact 20mm width makes it suitable for tight spaces, while the double seals keep contaminants out.

Made from sturdy steel, it handles loads up to 33.1 kN and offers smooth operation. The press-fit shaft mount ensures a secure installation, and it works in temperatures from 0°C to 110°C.

This bearing is ABEC5 rated, with options for higher precision (ABEC7/9). Ideal for robotics, medical equipment, or any application needing precise rotational movement.

Weighing 1.45kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial and technical uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number CRBC10020UU
  • Brand TFL
  • Size 100 mm x 150 mm x 20 mm
  • Bore Dia 100 mm
  • Outer Dia 150 mm
  • Width 20 mm
  • R(min) 1 mm
  • Shoulder Height Ds(max) 113 mm
  • Shoulder Height Dh(min) 133 mm
  • System of Measurement Metric
  • Bearing Type Roller
  • Roller Bearing Type Crossed
  • For Load Direction Combined
  • Construction Single Row
  • Seal Type Double Seal
  • Holes Without Holes
  • Ring Material Steel
  • Roller Material Steel
  • Basic Load Rating C 33.1 kN
  • Basic Load Rating Co 50.9 kN
  • Lubrication Required
  • Shaft Mount Type Press Fit
  • Temperature Range 0 -230 °F
  • ABEC Rating ABEC5(Available in ABEC7/9)
  • RoHS Compliant
  • REACH Compliant
  • Weight 1.45 Kg

Features

How Is CRBC10020UU Bearing Engineered for Reliability?

CRBC10020UU Bearing features a crossed roller design, providing excellent load capacity for combined radial and axial loads.
Its steel rings and rollers ensure durability, with a basic load rating of 33.1 kN for dynamic applications.

The double seal design protects against contaminants, making CRBC10020UU Bearing suitable for harsh environments.
With an ABEC5 rating, it offers precision performance for industrial and automation applications.

CRBC10020UU Bearing operates in temperatures from 0 to 230°F, maintaining reliability under varying conditions.
Its press-fit shaft mount simplifies installation, reducing setup time and effort.

Application

Industrial Uses of CRBC10020UU Bearing
CRBC10020UU Bearing is commonly used in machine tools, where its crossed roller design provides excellent rigidity and precision for rotary tables. The double seal helps keep contaminants out, extending service life in dusty workshop conditions.

Where Is CRBC10020UU Bearing Used?
You’ll often spot CRBC10020UU Bearing in robotics joints, thanks to its compact 20mm width and ability to handle combined loads smoothly. The press-fit mounting makes installation straightforward for automated assembly lines.

Built for Heavy-Duty Use: CRBC10020UU Bearing
CRBC10020UU Bearing performs well in medical imaging devices where space is limited but precision is critical. Its steel construction maintains accuracy even during repeated start-stop cycles common in CT scanners.

Automotive vs Aerospace: Applications of CRBC10020UU Bearing
In automotive testing equipment, CRBC10020UU Bearing provides stable rotation for dynamometers measuring engine performance. The ABEC5 rating ensures consistent results during prolonged testing sessions.

Essential Roles of CRBC10020UU Bearing
CRBC10020UU Bearing finds a home in 3D printer gantries, where low friction and high positional accuracy matter. The 100mm bore accommodates sturdy shafts while keeping the overall assembly lightweight.
